20-400W ATEX Explosion Proof LED High Impact Resistance Aluminum Housing Gas Station
20-400W ATEX Explosion Proof LED High Impact Resistance Aluminum Housing Gas Station
20-400W ATEX Explosion Proof LED High Impact Resistance Aluminum Housing Gas Station
20-400W ATEX Explosion Proof LED High Impact Resistance Aluminum Housing Gas Station
20-400W ATEX Explosion Proof LED High Impact Resistance Aluminum Housing Gas Station
20-400W ATEX Explosion Proof LED High Impact Resistance Aluminum Housing Gas Station
20-400W ATEX Explosion Proof LED High Impact Resistance Aluminum Housing Gas Station
20-400W ATEX Explosion Proof LED High Impact Resistance Aluminum Housing Gas Station
20-400W ATEX Explosion Proof LED High Impact Resistance Aluminum Housing Gas Station
20-400W ATEX Explosion Proof LED High Impact Resistance Aluminum Housing Gas Station
20-400W ATEX Explosion Proof LED High Impact Resistance Aluminum Housing Gas Station
20-400W ATEX Explosion Proof LED High Impact Resistance Aluminum Housing Gas Station
20-400W ATEX Explosion Proof LED High Impact Resistance Aluminum Housing Gas Station
20-400W ATEX Explosion Proof LED High Impact Resistance Aluminum Housing Gas Station
Specifications
Brand Name :
CODT
Model Number :
EX-20~400-B
Certification :
ATEX, IECEx,ETL,API,ABS
Place of Origin :
CHINA
MOQ :
negotiable
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
500 pcs per day
Delivery Time :
5-20days
Packaging Details :
carton box standard, check the specification
Material :
Copper-free aluminum
Item type :
Explosion- proof lights
Working lifetime(hour) :
50000
Warranty :
5 Years
Lamp power(w) :
20,40,60,80,100,150,180,200,250,300,350,400
Working temperature(℃) :
-40 - 55
Description

Factory Price Atex Led Explosion Proof Light 20-400w High Impact Resistance Aluminum Housing Gas Station

  • Certifications:

Marking ATEX

II 3 G Ex ec IIC T6...T3 Gc

II 2 D Ex tb IIIC T85°C...T100°C Db

II 2 G Ex eb mb IIC T5...T6 Gb

II 2 D Ex tb IIIC T80°C...T100°C Db

Marking IECEx

Ex ec IIC T6...T3 Gc

Ex tb IIIC T85°C...T100°C Db

Ex eb mb IIC T5...T6 Gb

Ex tb IIIC T80°C...T100°C Db

Marking UL844 (North American)

Class I, Division 2, Groups A, B, C, D

Class II, Division 1, Groups E, F, G

Class II, Division 2, Groups F, G

Class III

Marine Marking

UL 1598

UL1598A

ABS

IP66

  • Standard Materials:

Housing: Copper-free aluminum

Lens: Tempered glass

Hardware: Stainless steel

Mounting Bracket: Stainless steel

  • Key Features:
  1. High-quality SMT LED and Meanwell driver.
  2. Heavy-duty and high impact resistance.
  3. Replaceable LED board and drivers.
  4. Integrated junction box for driver.
  5. Dimmable and battery backup function is available.
  6. Marine rating powder coated finish treatment.
  7. Various installation ways for different applications.
  8. Glass lens or polycarbonate lens for making different beam angles.
  9. 5-year warranty.
  10. Low temperature applications to -40°C (-40°F) and high temperature up to 55°C (131°F).
  • Catalog Number Logic:

20-400W ATEX Explosion Proof LED High Impact Resistance Aluminum Housing Gas Station

  • Technical Data​
Model Wattage Operating Voltage Lumens(Im) Efficacy(Im/W) CRI CCT Emergency Time
EX-20W B2YZDA 20W AC100-277V/DC12-48V 2800 140 >70 2200K-7000K 3 hours
EX-40W B2YZDA 40W 5600
EX-60W B2YZDA 60W AC100-277V/DC12-48V,AC200-480V 8400
EX-80W BYZDA 80W 11200
EX-100W BYZDA 100W 14000
EX-150W B3YZDA 150W 21000
EX-180W B3YZDA 180W 25200
EX-200W B3YZDA 200W 28000
EX-150W B4YZDA 150W 21000
EX-180W B4YZDA 180W 25200
EX-200W B3YZDA 200W 28000
EX-250W B4YZDA 250W 35000
EX-300W B4YZDA 300W 42000
EX-350W B4YZDA 350W 49000
EX-400W B4YZDA 400W 56000
  • Packing Information:
Model Quantity/Carton Packing Size Net Weight(kg) Gross Weight(kg)
B2 1 PCS 14.17x13.94x10.24inch 3.5 5
B2 1 PCS 15.19x12.99x8.66inch 4.4 5.5
B3 1 PCS 18.90x18.11x10.43inch 8.2 10.5
B4 1 PCS 20.87x20.87x11.81inch 18.8 21.5

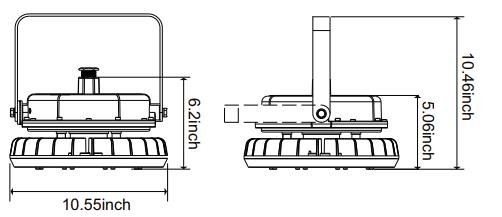

  • Dimensions:

20-400W ATEX Explosion Proof LED High Impact Resistance Aluminum Housing Gas Station

20-400W ATEX Explosion Proof LED High Impact Resistance Aluminum Housing Gas Station

20-400W ATEX Explosion Proof LED High Impact Resistance Aluminum Housing Gas Station

20-400W ATEX Explosion Proof LED High Impact Resistance Aluminum Housing Gas Station

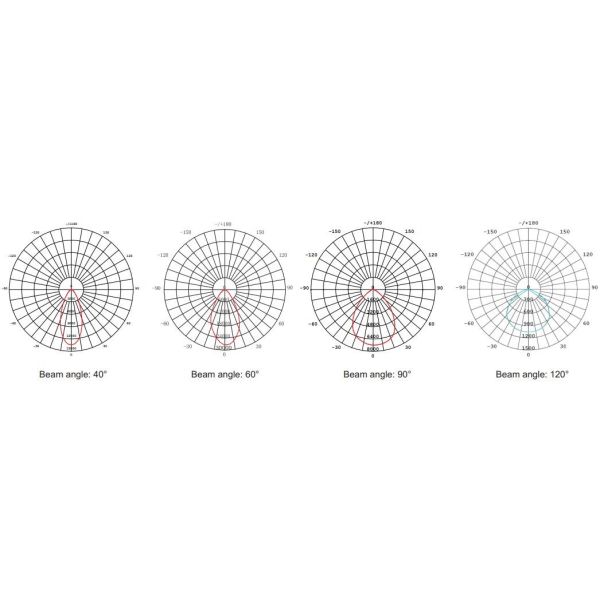

  • Photometry:

20-400W ATEX Explosion Proof LED High Impact Resistance Aluminum Housing Gas Station

  • Mounting Methods:

20-400W ATEX Explosion Proof LED High Impact Resistance Aluminum Housing Gas Station

20-400W ATEX Explosion Proof LED High Impact Resistance Aluminum Housing Gas Station

  • Accessories:

20-400W ATEX Explosion Proof LED High Impact Resistance Aluminum Housing Gas Station

  • Application :

Oil and gas industry

• All petroleum production and refining

• Petroleum loading and transportation

• Petroleum storage and retail

• LNG industry

• All mining operations and service

Ocean, marine and aerospace field

• Ocean platform operation facilities

• Aerospace clean room and production

• Ocean vessel operations

Food and alcohol industry

• Flour and fine particle production and storage

• Food and distilling production

• Alcohol industry

Chemical industry

• All types of paint facilities

• Chemical production and storage

Metal treatment

• Steel and aluminum factories

• Pumping stations in any environment

• Metal smelting, foundry and fabrication

Other high humidity, high dust, high temperature, vapor locations.

  • QA

Q1. What about the lead time?

A: 3-5 days for Sample preparing ,8-10 working days for mass production.

Q2. Do you have any MOQ limit for led light order?

A: Low MOQ, 1pc for sample checking is available.
