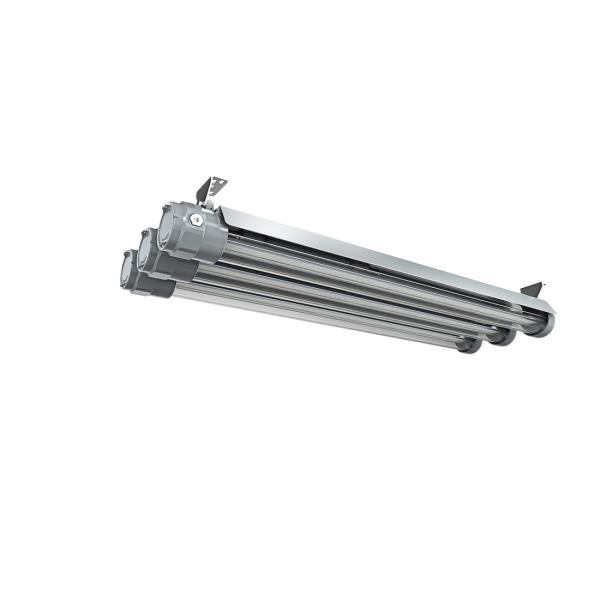

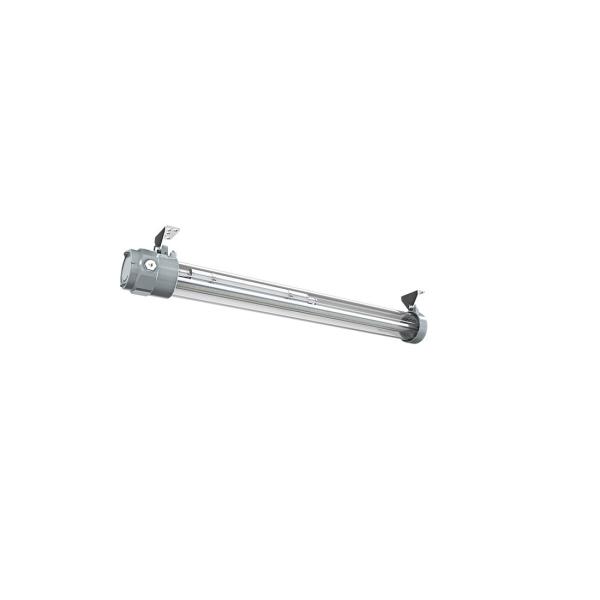

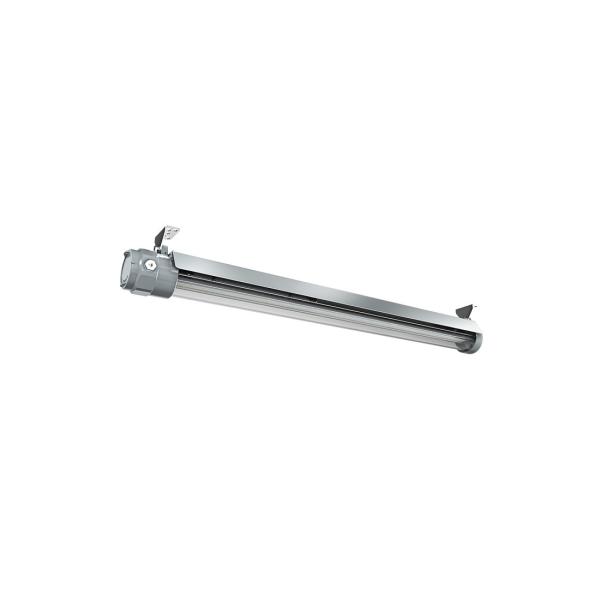

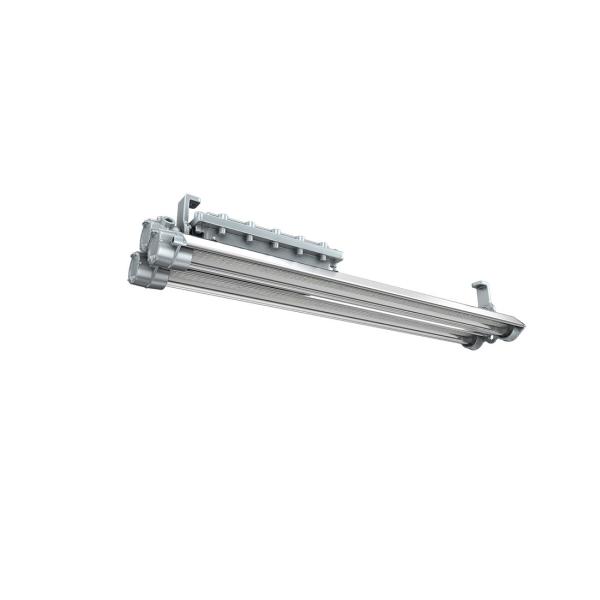

Industrial 150Wled Lights Round Explosion Proof Marine Portable Light Watertight Explosion Proof Light FLB Series

• Classifications:

Marking ATEX

II2 G Ex eb db mb IIC T6/T5 Gb

II2 D Ex tb IIIC T80°C / T95°C Db IP66/IP67/IP68

Gas:Zone1&2

Dust:Zone21&22

TemperatureClass:T6/T5

Surface Temperature:+80°C/+95°C

Marking IECEx

Ex eb db mb IIC T6/T5 Gb

Ex tb IIIC T80°C / T95°C Db IP66/IP67/IP68

Standard

EN 60079-0, EN 60079-1, EN60079-7,EN 60079-18, EN 60079-31

IEC 60079-0, IEC 60079-1, IEC 60079-7,IEC 60079-18, IEC 60079-31

• Material:

Electrical class: Class I

Connection: Connection to a 3x2,5mm² terminal block

1 cable gland in black polyamide (Ø8-13 mm) including 2 blind plugs.

Shell material: Copper free aluminum, plastic sprayed surface

Installation accessories: Stainless Steel 304

Gaskets: Silicon rubber

Lens: Transparent Borosilicate glass or polvcarbonate protected by a coextruded laver of PMMA

Illuminate: LED

• Notes:

The explosion-proof type type of wiring chamber can be “Ex e” explosion-proof type. See Figure.

The opening mode of the wiring chamber cover is threaded connection, which is convenient for incoming wire and wiring.

The structure can save additional incoming junction box for users.

Method of construction: Housing in one piece with high mechanical and chemical resistance.

Long-lasting imperviousness by screw fitting.

• Parameter:

Rated voltage: AC100V to 277 V or DC12V to 48V

Rated Power: A series: 1 x (15 to 28) W, 2 x (15 to 28) W, 3 x (15 to 28) W

B series: 1 x (20 to 45) W, 2 x (20 to 45) W, 3 x (20 to 45) W

C series: 1 x (36 to 72) W, 2 x (36 to 72) W, 3 x (36 to 72) W

IP Degree of protection: IP66/IP67/IP68

Ambient temperature: Normal: -40°C - +45°C for T6/T80°C

-40°C - +60°C for T5/T95°C

Emergency: -10°C - +45°C for T6/T80°C

-10°C - +60°C for T5/T95°C

Enclosures Code: IK10

Glass Code: IK08

• Catalog Number Logic:

• Technical Data:

• Accessories:

• Dimensions

• Mounting:
