Class 1 Division 1 Explosion Proof LED Lights 10-50W ATEX High Bay

Specifications

Brand Name :

CODT

Model Number :

EX-10~50-G

Certification :

ATEX, IECEx,ETL,API,ABS

Place of Origin :

CHINA

MOQ :

negotiable

Price :

negotiable

Payment Terms :

L/C, T/T, Western Union

Supply Ability :

500 pcs per day

Delivery Time :

5-20days

Packaging Details :

carton box standard, check the specification

Material :

Copper-free aluminum

power :

10,20,30,40,50

Ip rating :

Input voltage(v) :

AC100-277V/DC12-48V AC200-480V

Cri (ra>) :

Lamp luminous efficiency(lm/w) :

140

Description

class 1 division 1 led explosion proof light 10~50W ATEX Certified LED Explosion Proof High Bay Fixtures-G SERIES

Explosion Protection

Marking UL844 (North American)

Class I, Division 1, Groups C, D

Class I, Division 2, Groups A, B, C, D

Class II, Division 1, Groups E, F, G

Class II, Division 2, Groups F, G

Class III

Marine Marking

UL1598, UL1598A

ABS

Other Rating

IP 66

IK 10

Materials

Housing:Copper free aluminum

Diffuser:Tempered glass

Bolts:Stainless steel

Mounting:Bracket :Stainless steel

Additional Features:

10kV surge protection.

Up to ten years limited warranty option.

Low temperature applications to -40°C (-40°F) and high temperature up to 65°C (149°F).

Various installation ways for different applications.

Emergency battery backup is optional.

Customized motion sensor is optional.

Advanced smart system: WIFI & BLUE-TOOTH (optional).

Adopt glass lens or glass with polycarbonate lens to make wider beam angle.

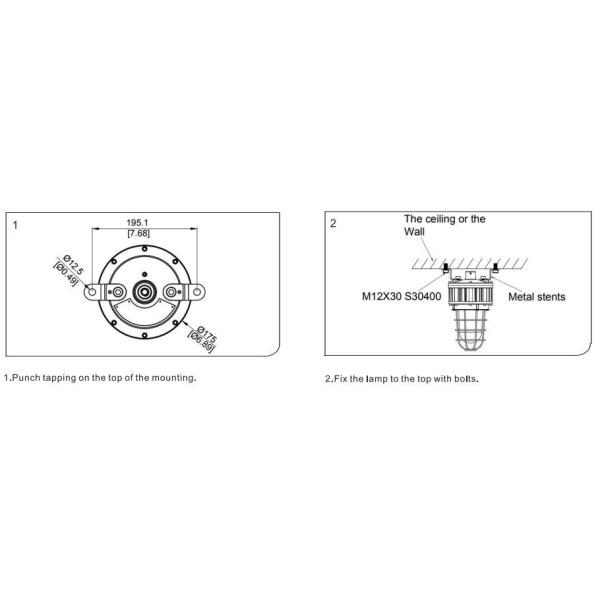

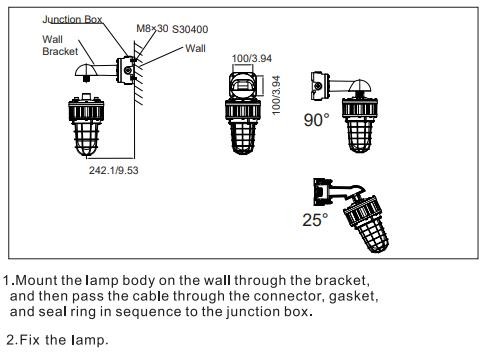

Installation Guidance:

! WARNING Risk of fire, electric shock or personal injury. Please turn off power before installation!

READ INSTRUCTIONS CAREFULLY BEFORE INSTALLING. KEEP THIS INSTRUCTIONS FOR FUTURE REFERENCE.

THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE BY QUALIFIED ELECTRICIAN WHO IS FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE HAZARDOUS INVOLVED.

Fixtures must be wired in accordance with the National electrical code and all applicable local codes. Proper grounding is required for safety.

Risk of fire or electric shock. Exit light installation requires knowledge of luminaires and electrical systems. DO NOT open the enclosure when energized. DO NOT try to install if not qualified. Please contact a professional electrician.

Risk of fire or electric shock. Suitable for wet locations. Make sure the power is o ffprior to installation.

Risk of fire or electric shock. Suitable for non-insulated surface and frame. DO NOT cover fixture with insulation liner or similar material.

DO NOT install in unstable, loose or breakable surfaces.

DO NOT let objects impact or exert force on the surface of the fixture.

Technical Data:

Model	Wattage	Operating Voltage	Lumens(Im)	Efficacy(Im/W)	CRI	CCT	Emergency Time(Optional)
EX-10W GYZDA	10W	AC100-277(by driver)or DC12-48V	1400	140	>70	2200K-7000K	3 hours
EX-20W GYZDA	20W		2800
EX-30W GYZDA	30W		4200
EX-40W GYZDA	40W		5600
EX-50W GYZDA	50W		700

Packing Information

Model	Quantity/Ctn	Length(cm)	Width(cm)	Height(cm)	Net(KG)	Gross(KG)
G	1	38	26.5	25.5	4.65	5.4
G(+25° pole stanchion)	1	51	56	26	6.5	8

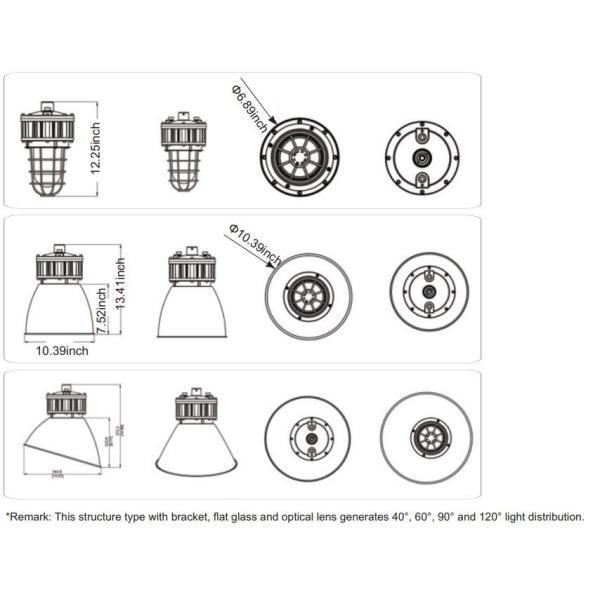

Dimension
