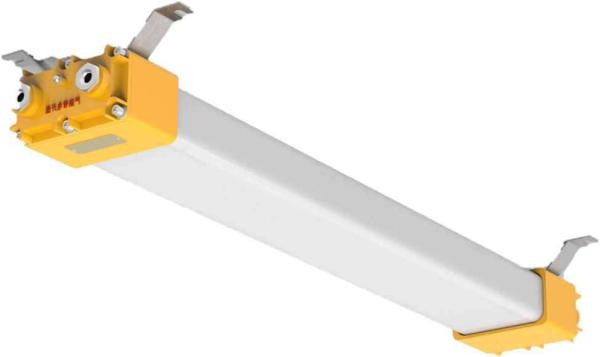

2 Feet Linear Explosion Proof LED Lights 100-277V Super Brightness
2 Feet Linear Explosion Proof LED Lights 100-277V Super Brightness
2 Feet Linear Explosion Proof LED Lights 100-277V Super Brightness
2 Feet Linear Explosion Proof LED Lights 100-277V Super Brightness
Specifications
Brand Name :
CODT
Model Number :
CODT-EXR18600
Certification :
ATEX
Place of Origin :
SHENZHEN
MOQ :
Negotiable
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
500pcs per day
Delivery Time :
5-20 working days
Packaging Details :
Standard packing
Description

2 feet LED Explosion proof linear fixture high efficacy LED Super brightness

Features

High efficacy LED Source with long lifespan>100,000 hours

5-year performance warranty

Low THD around 15%,Less interference 5KV Surge Protection

Robust aluminium housing and strong tempered glass Vibration and shock resistant

Low maintenance

Application

Oil&Gas Exploration

Drilling

Oil Refinery

Petrochemical Plant

Power Plant

Pharmaceutical Plant

Parameters

Electrical&photometic Features
Luminaire Efficacy: 140lm/W
Lifespan: >50,000 hours
Operating Voltage: 100-277 VAC
141-392VDC
36 VAC
24VDC/24VAC
Power(W): 18/36/48/56/72/96
Frequency: 50/60Hz
Power Factor: ＞0.98
THD: ＜15%
Insulation Class: Ⅰ
Surge Protection: 5KV
LED Driver: Over voltage protection short circuit protection

Mechanical Features
Length: 600mm 900mm 1200mm
Weight: 6.9Kg 9.2 Kg 11.5Kg
Size: 600X132X72mm 900X132X72mm 1200X132X72mm
Ambient Temperature: -20℃-+55℃
Connecting Terminals: 3*1.0-4mm²(L+N+PE)
Available cable : Outer diameter φ7-φ14mm
Cable Entries: 2 XM20*1.5 (M25*1.5 are optional)
Earthing Protection: M4 (Internal & external earth bolts)
IP Code: IP66
Enclosure Material: ADC12+PC
Enclosure Colour: Yellow RAL1026(optional Grey RAL7040) 　 　
Coating: Epoxy powder coating
Exposed Fastener: Stainless steel
Protective Cover: Tempered glass,Stand 7J impact

2 Feet Linear Explosion Proof LED Lights 100-277V Super Brightness

2 Feet Linear Explosion Proof LED Lights 100-277V Super Brightness

2 Feet Linear Explosion Proof LED Lights 100-277V Super Brightness
