Specifications
Brand Name :
Excar
Model Number :
G1H2
Certification :
CE
Place of Origin :
China
MOQ :
1pc
Price :
Negotiate
Payment Terms :
T/T, L/C
Supply Ability :
3000pcs per year
Delivery Time :
7-15 Working Days
Packaging Details :
20' container or 40' container
Body color :
White, black
Roof color :
White
Seat color :
Beige or black
Lead time :
7-15 days after deposit paid
Warranty :
2 years since the day to ship out
Logo :
Excar silver logo or gold logo or customized
Color :
White
Range :
60-80KM
Battery :
72V Trojan battery
Description

Trojan Batteries Electric Utility Carts , Utility Golf Carts Kds 72v 7.5kw Acim Moter


Specification

Configuration
Battery 9*8V 415AH Trojan T-875
Power of Motor 72V 7500W
Controller American Curtis Electronics Controller
Accelerator Adjustable Inductive Accelerator Continuously Variable Speed System
Transaxle Italy Graziano axle
Charger Intelligent Onbaord Charger
Chassis configuration
Front-Suspension Independent Spring Front Suspension
Rear-Suspension Spring Hydraulic Shock Absorbers
Steering Dual Self Adjusting "Rack&Pinion" Steetring
Brakes Rear Wheel Mechanical Drum Brake and Regeneration Brake
Performance
Max Speed 40km/h Chassis Aluminum
Max Travel Distance 80-100km Wheelbase 2100mm
Slope Climbing Capacity 30% Front Wheel Tread 860mm
Brake Range ≤3m Rear Wheel Tread 970mm
Max Noise <50dB Tires 205/50-10
Carrying Capacity 800KG Dimension 4100*1500*2000mm
Turning Radius 2900mm Passengers 2 Person
Net Weight 1390kg Ground Clearance 170mm



Option Accessories

To increase the sales value of our golf cart, we also provide many optional accessories.

Item Option description Item Option description
1 E-key 11 2-point seatbelt
2 Hinged windshield 12 Battery water refill system
3 Laminated windshield with wiper 13 Digital meter
4 Steel brush guard 14 EM brake
5 Front steel basket 15 Four wheel disc brake
6 Inner rear view mirror 16 Carlisle 205/50-10 tyre with10inch wheel
7 Side rear view mirror 17 Ice box
8 Enclosure 18 Sand bottle
9 Sunshine cover 19 Sand rake
10 Golf bag cover 20 Ball washer



Color Option

Body colour White Grey Sky blue
Dark blue Red Wine red
Green Dark green Yellow
Purple Champagne Black
These are the popular colours, but your customized color is available,just provide the right Panton No. color
Seat & Roof colour Black Beige White

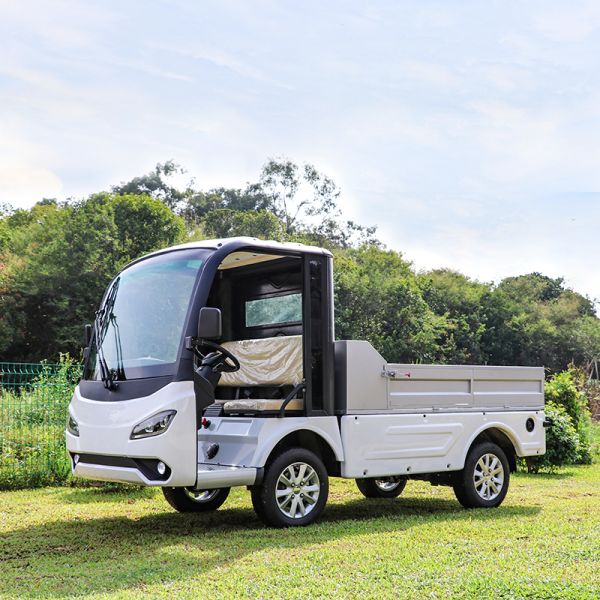

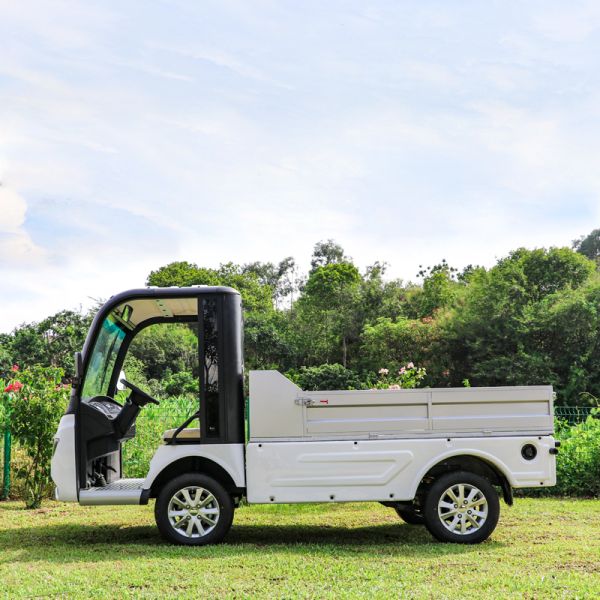

Product Image


CE Approved Trojan Batteries Electric Utility Carts , Kds 72v 7.5kw Acim Moter
CE Approved Trojan Batteries Electric Utility Carts , Kds 72v 7.5kw Acim Moter

Application

Our electric cart can be used in many places,Golf Course,Resort,Hotel,Theme Park,Amusement Park,Garden,Residential Community,Inside factory,Shopping mall,Musuem,Campus,Station, Port,Zoo,Any place where a green, quiet and cost effective vehicle is needed.
