Specifications
Brand Name :
Excar
Model Number :
G1S2
Certification :
CE
Place of Origin :
China
MOQ :
1pc
Price :
Negotiate
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
3000pcs per year
Delivery Time :
7-15 working days
Packaging Details :
20' container or 40' container
Body color :
Blue,White, black, customized
Roof color :
Blue,White, black, customized
Seat color :
Beige or black, white
Lead time :
7-15 days after deposit paid
Warranty :
2 years since the day to ship out
Logo :
Excar silver logo or gold logo or customized
Color :
White, Blue
Range :
60-80KM
Battery :
72V Trojan battery
Controller :
Curtis Controller
Description

Tourist Use Electric Utility Carts , Advanced Battery Powered Sightseeing Bus



Specification

SPECIFICATIONS OF 8 Seater Electric Sightseeing Car LS6082K

Key Components

 Controller Curtis AC 72V 350A
Motor KDS 72V 7.5KW
Battery Trojan T-105 12*6V

Performance

and

Dimensions

 Passenger Capacity 2
Range (Loaded) * 60-80kms
Max.speed 40km/h
Min. Turning Radius 5.7m
Max. Gradeability 25%
Max. Loading Weight 640kgs
Net Weight 1120kgs
Overall Dimensions 5300X1500X2000mm

Body and Frame
Frame (Chassis) Welded steel framework, with anti-rust treatment of sand blasting and painting
Body and Roof FRP body, seat pot and roof
Windshield Laminated glass, with wiper
Roof supports Aluminum
Seat High back seat with head rest for driver, bench seat for passengers
Floor Anti-slip rubber floor mat
Dashboard FRP, with F/R Switch, Emergency Stop Switch, Digital Meter
Side trim Aluminum alloy
Sider mirror 2pcs, foldable

Electric System
Lighting system and horn 2 headlights, 2 front turn signals, 2 brake light, 2 rear turn signal, 1 reverse light, 1 rear fog light, with voltage reducer (converting from 48V to 12V), electric horn.
Digital Meter With battery power meter, amperemeter, voltmeter, speedometer, odometer, time, F/R indicator, turn signal indicator
Audio system CD player and radio, with 4 speakers
Combination switch Light switch, wiper switch, horn switch
Backup Buzzer 12V
Charger Smart charger, input 110V-240V~50Hz-60Hz, output 48V, 25A

Steering, Brake, Transmission and Suspension
Steering System EPS (Electric power steering) system
Brake system Vacuum booster hydraulic brake
Accelerator Stepless speed change
Driving mode Rear axle two stage deceleration, motor direct driving
Rear axle Heavy duty axle with differential gear
Suspension system Mcpherson independent spring suspension
Wheel & Tyre 175/60R14 Tyre



Color Option

※ Body Color:White,Black,Beige,Champagene,Dark Green,Red,Metallic Red,Purple,Yellow,Green,Pink,Blue,Dark Blue or made on Panton number
※ Seat Color:Black, White or Beige
※ Roof Color:Blue,White or Beige

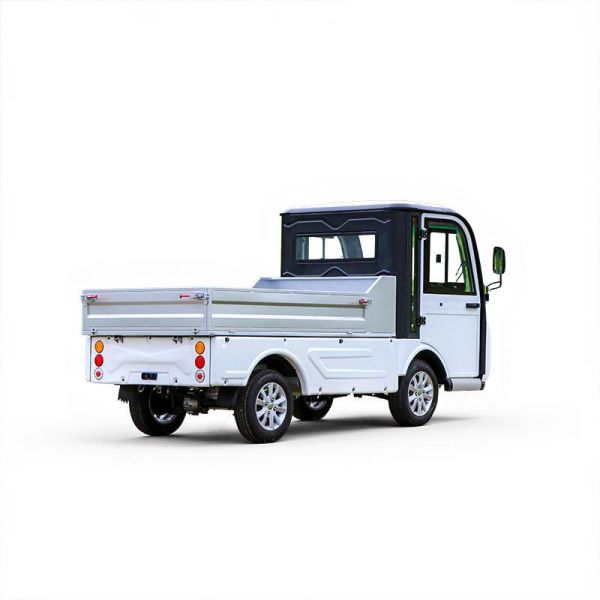

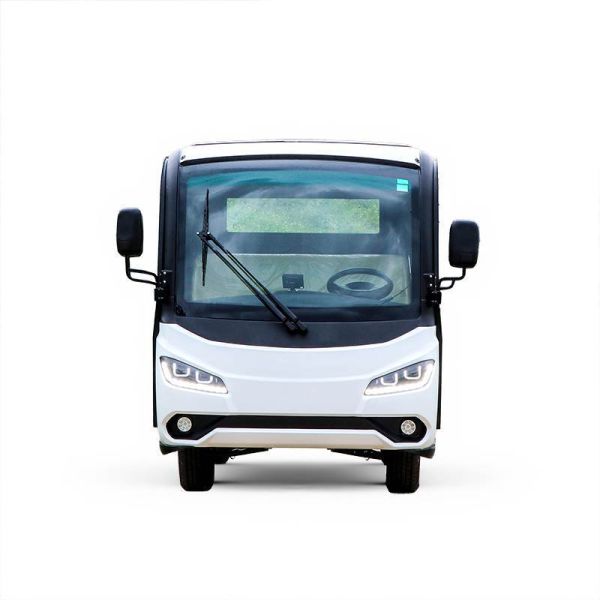

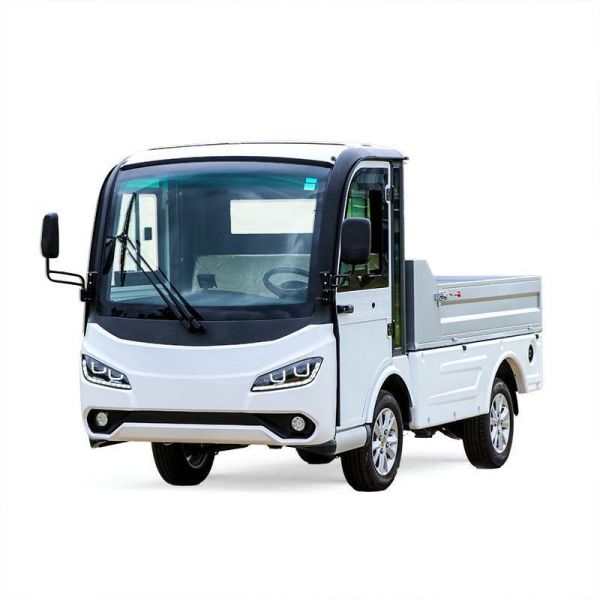

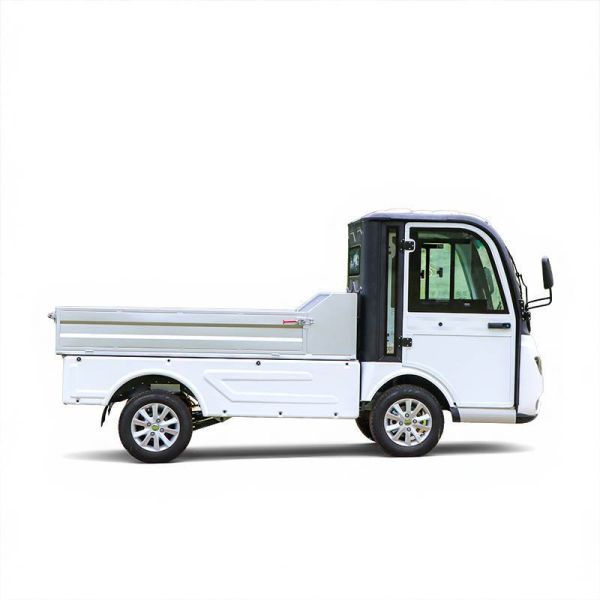

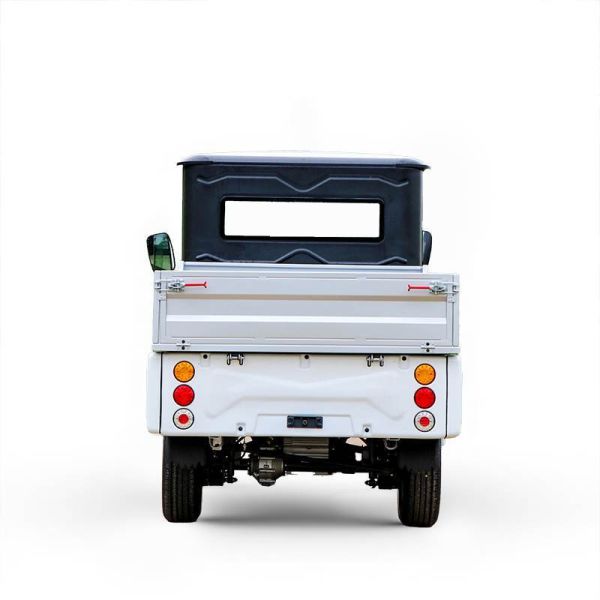

Product Image


Tourist Use Electric Utility Carts , Advanced Battery Powered Sightseeing Bus
Our Certificate

Tourist Use Electric Utility Carts , Advanced Battery Powered Sightseeing Bus


FAQ
1, what's your warranty time?
Usually for 1 year

2, What's the production time?
Normally for 7-15 working days

3, What's your payment term?
T/T 30% deposit and balance paid before shipment

4, Can we also purchase the parts
Yes,if you do maintainess service,you can also buy parts from us

5, How do you provide after-sales once customer bought the cart from us?
Once you purchase the cart from us,then i will provide you manual to learn it and tell you how to fix it.

6.What is your MOQ?
You can order just 1 unit .

7,Can we put the Logo we designed on the cart?
Yes, you can put your own Logo on the cart.

8,What's your payment term?
T/T 30% deposit and balance paid before shipment

9,How do you make our business long-term and good relationship?
1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.

Contact:
Sally chen/ Sales Dept

Dongguan Excellence Golf & Sightseeing Car Co.,ltd

Mobile: +86-15016897312(Wechat/WhatsApp)

DID: +86-0769-81107592

www.excar.com.cn

excar.en.alibaba.com
