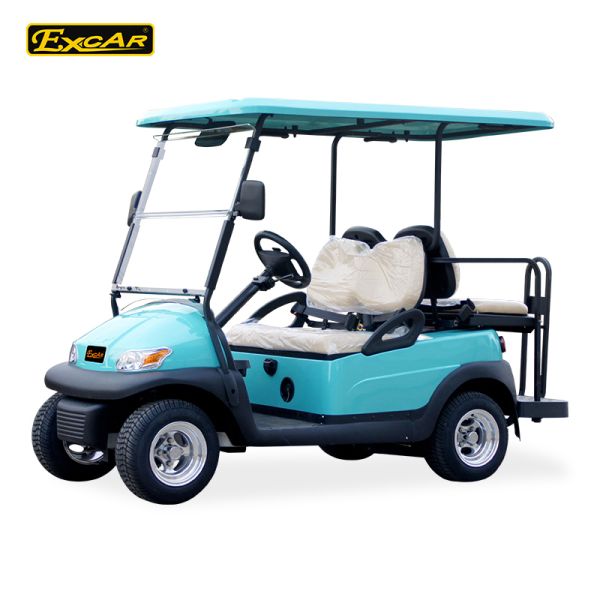

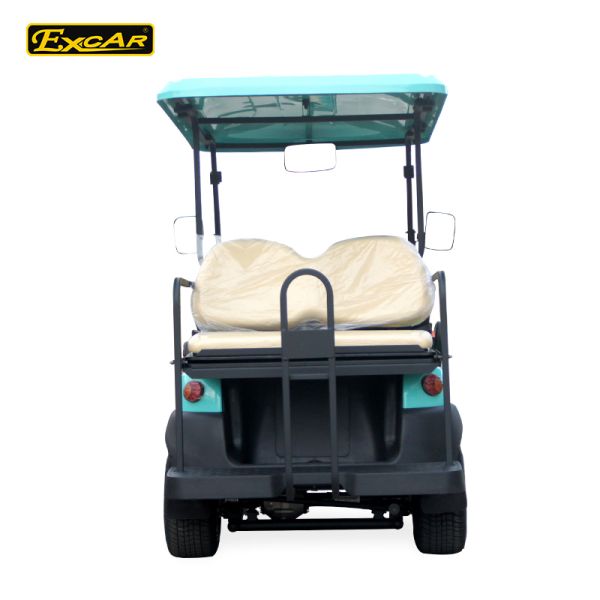

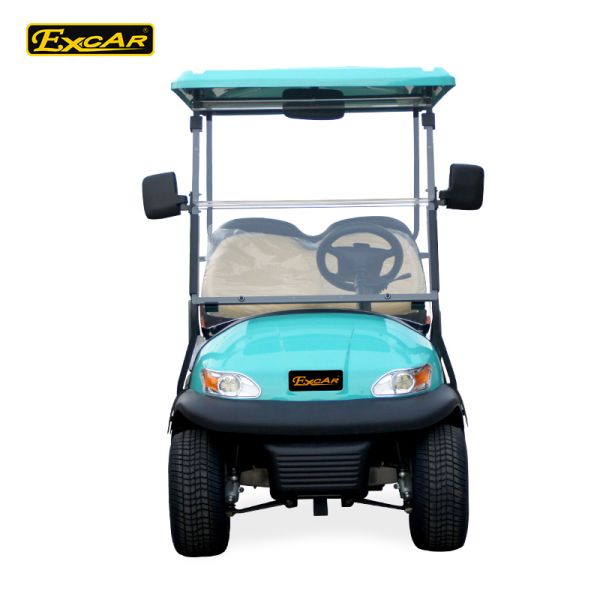

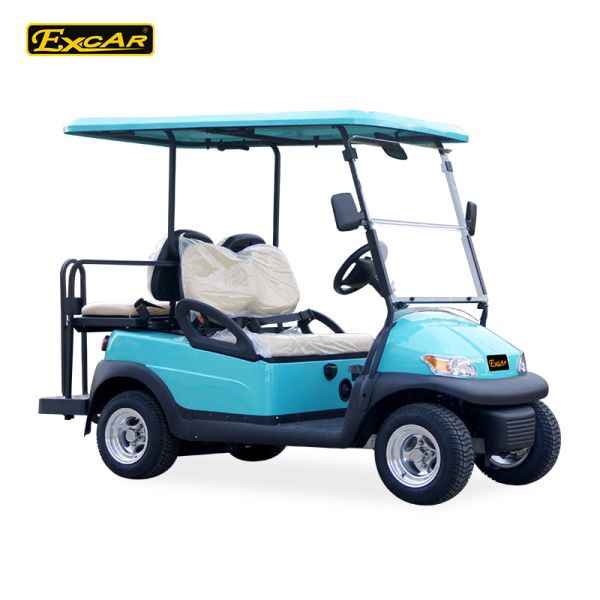

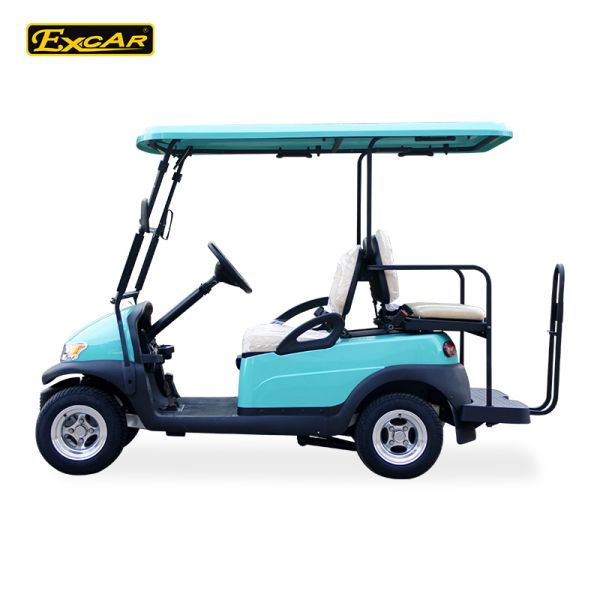

Front / Rear 4 Seats Electric Golf Carts , Battery Powered Electric Caddy Carts
Front / Rear 4 Seats Electric Golf Carts , Battery Powered Electric Caddy Carts
Front / Rear 4 Seats Electric Golf Carts , Battery Powered Electric Caddy Carts
Front / Rear 4 Seats Electric Golf Carts , Battery Powered Electric Caddy Carts
Front / Rear 4 Seats Electric Golf Carts , Battery Powered Electric Caddy Carts
Front / Rear 4 Seats Electric Golf Carts , Battery Powered Electric Caddy Carts
Front / Rear 4 Seats Electric Golf Carts , Battery Powered Electric Caddy Carts
Front / Rear 4 Seats Electric Golf Carts , Battery Powered Electric Caddy Carts
Specifications
Brand Name :
EXCAR or Customizable
Model Number :
A1S2+2/FF
Certification :
CE Certification
Place of Origin :
China
MOQ :
1
Price :
$4000~$5000
Supply Ability :
5000pcs/year
Delivery Time :
7~15 work days
Packaging Details :
With the thin film, wood or steel frame
Payment Terms :
Western Union, D/P, D/A, Western Union, T/T
Motor :
ADC Motor
Battery :
Trojan Battery
Controller :
Curtis Controller
Charger :
Onboard or Offboard
Transaxle :
Italy Graziano Axle
Seat :
4 seaters
Description

Front / Rear 4 Seats Electric Golf Carts , Battery Powered Electric Caddy Carts


Details Specification


DIMENSION:3200*1200*2000MM
F/R TRACK:860/970MM
WHEELBASE:1670MM
GROUND CLEARANCE:150MM
MIN.TURNING RADIUS:2.9M
NET WEIGHT:400KGS
PAY LOAD:400KGS
CLIMBING CAPACITY (FULL LOAD):25%
MAX.FORWARD SPEED:35KM/H
RANGE:80-100KM

CONFIGURATION:
MOTOR:KDS 48V 5KW ACIM MOTOR
CONTROLLER:CURTIS AC CONTROLLER 48V 350A
BATTERIES:TROJAN T-875 6*8V / T-105 8*6V
CHARGER:48V 25A INTELLIGENT ONBOARD CHARGER
CHASSIS:ALUMINUM CHASSIS

CHASSIS CONFIGURATION:
TRANSAXLE:ITALY GRAZIANO AXLE
BRAKE SYSTEM:FOUR WHEEL HYDRAULIC DISC BRAKE
STEERING SYSTEM:DUAL SELF-ADJUSTING RACK & PINION
F/R SUSPENSION:MCPHERSON INDEPENDENT SPRING SUSPENSION
TYRE:22*11-10 TYRE


Option Accessories

To increase the sales value of our golf cart, we also provide many optional accessories.

Item Option description Item Option description
1 E-key 11 2-point seatbelt
2 Hinged windshield 12 Battery water refill system
3 Laminated windshield with wiper 13 Digital meter
4 Steel brush guard 14 EM brake
5 Front steel basket 15 Four wheel disc brake
6 Inner rear view mirror 16 Carlisle 205/50-10 tyre with10inch wheel
7 Side rear view mirror 17 Ice box
8 Enclosure 18 Sand bottle
9 Sunshine cover 19 Sand rake
10 Golf bag cover 20 Ball washer
Color options
Body Color:White,Black,Beige,Champagene,Dark Green,Red,Metallic Red,Purple,Yellow,Green,Pink,Blue,Dark Blue or made on Panton number
Seat Color:Black or Beige
Roof Color:Black,White or Beige



Shipping & Package

20" container 40" container
With roof & windshield Without roof & windshield With roof & windshield Without roof & windshield
4 units 8units 10units 20units

Front / Rear 4 Seats Electric Golf Carts , Battery Powered Electric Caddy Carts

Front / Rear 4 Seats Electric Golf Carts , Battery Powered Electric Caddy Carts

Front / Rear 4 Seats Electric Golf Carts , Battery Powered Electric Caddy Carts



FAQ:
1, what's your warranty time?
Usually for 1 year

2, What's the production time?
Normally for 7-15 working days

3, What's your payment term?
T/T 30% deposit and balance paid before shipment

4, Can we also purchase the parts?
Yes,if you do maintainess service,you can also buy parts from us

5, How do you provide after-sales once customer bought the cart from us?
Once you purchase the cart from us,then i will provide you manual to learn it and tell you how to fix it.

Front / Rear 4 Seats Electric Golf Carts , Battery Powered Electric Caddy Carts

Front / Rear 4 Seats Electric Golf Carts , Battery Powered Electric Caddy Carts

Front / Rear 4 Seats Electric Golf Carts , Battery Powered Electric Caddy Carts

Front / Rear 4 Seats Electric Golf Carts , Battery Powered Electric Caddy Carts

Front / Rear 4 Seats Electric Golf Carts , Battery Powered Electric Caddy Carts

Front / Rear 4 Seats Electric Golf Carts , Battery Powered Electric Caddy Carts
