100% Waterproof Electric Sightseeing Cart For 14 Passenger AC system
100% Waterproof Electric Sightseeing Cart For 14 Passenger AC system
100% Waterproof Electric Sightseeing Cart For 14 Passenger AC system
100% Waterproof Electric Sightseeing Cart For 14 Passenger AC system
100% Waterproof Electric Sightseeing Cart For 14 Passenger AC system
100% Waterproof Electric Sightseeing Cart For 14 Passenger AC system
100% Waterproof Electric Sightseeing Cart For 14 Passenger AC system
100% Waterproof Electric Sightseeing Cart For 14 Passenger AC system
Specifications
Brand Name :
EXCAR
Model Number :
D-G14
Certification :
CE
Place of Origin :
China
MOQ :
1 pc
Price :
Negotiate
Supply Ability :
300pcs per month
Delivery Time :
7-15 working days
Packaging Details :
20' container,40'
Roof color :
Blue,White or beige
Seat color :
White,black or beige
Warranty :
1 year
Controller :
USA curties controller 350A
Brand :
EXCAR
Chassis :
Aluminum material
Climbing Capacity :
25%
Motor :
KDS 72V 7.5KM
Body color :
Green Black
Range :
60-80KM
Description

Green Black 14 Seater electric sightseeing bus tour bus new electric car china electric bus

Details parts listed as below:

※ Advanced Disc Brake Technology
※ Global Special LED Headlight
※ Italy Graziano Transaxle
※ Curtis Controller 48V 275A
※ Special Design Battery Tray
※ Rear View Mirror And Driver/Passenger Side Mirrors
※ Automotive Safty Glass Windshield
※ Deep Cup Holders
※ USA Imported Unique E-KEY
※ Eletromagnetic Brake Makes Driving More Safty
※ 100% Waterproof accelerator

Key Components

Item Description
System DC system AC system
Controller Curtis controller 1266A-5301, 350A, imported from USA directly Curtis controller 1234E-5321, 350A, imported from USA directly
Motor

ADC brand Separately excited

DC motor 48V 3.7kw

ADC brand Separately excited

AC motor 48V 5kw
Battery Trojan battery, T875,6V*12pcs, imported from USA directly Trojan battery, T875,6V*12pcs, imported from USA directly
Transaxle

Italian GRAZIANO axle

with gear ration 1:12

Italian GRAZIANO axle

with gear ration 1:16
Charger

High Frequency onboard charger

48V/17A regulator

High Frequency onboard charger

48V/17A regulator

Performance

Item Description
system DC system AC system
Passenger Capacity 14 14
Climbing capacity(full load) 20% 25%
Max. forward speed 23km/h 45km/h
Endurance mileage 50-70km 60-80km
Charging time 8-10 hours 8-10 hours
Max.loading weight 510kgs 510kgs
Min.turning radius 5.1m 5.1m
Max. movement after brake at speed of 20km/h ≤4m ≤4m

Dimensions

Item Description
Overall dimensions (L x W x H) 5300x1500x2000mm
Ground clearance 150mm
Wheelbase 2850mm
Front wheel tread (mm) 1210mm
Rear wheel tread (mm) 1200mm

Color options

Body colour White Grey Sky blue
Dark blue Red Wine red
Green Dark green Yellow
Purple Champagne Black
These are the popular colours, but your customized color is available,just provide the right Panton No. color
Seat & Roof colour Black Beige White

Packing & Shipping

Excar golf cart will be packed in steel crate

Model Dimension(mm) 20” container 40” container
A1H2/CC With roof & windshield Without roof & windshield With roof & windshield Without roof & windshield With roof & windshield Without roof & windshield
3400*1200*1900 3400*1200*1200 2 units 4units 6units 12units

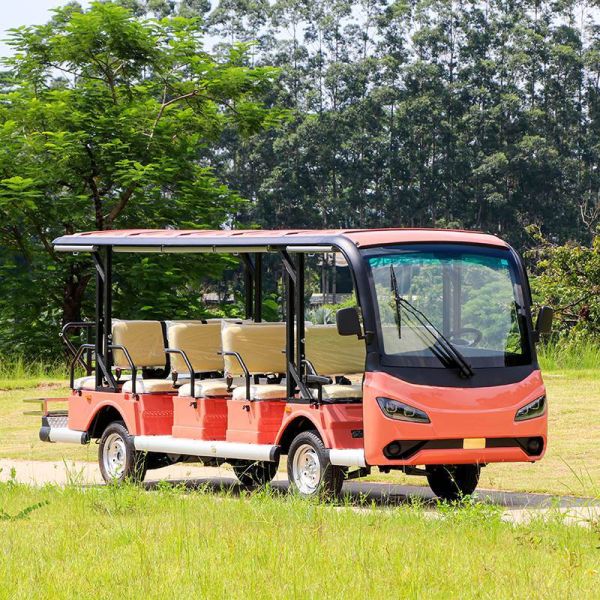

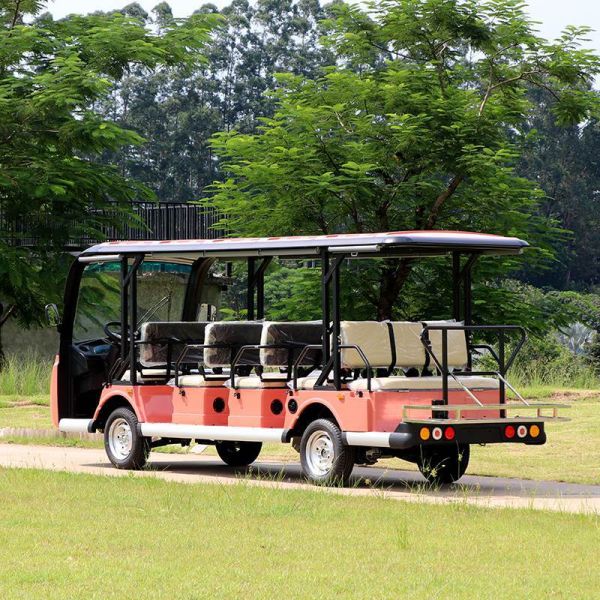

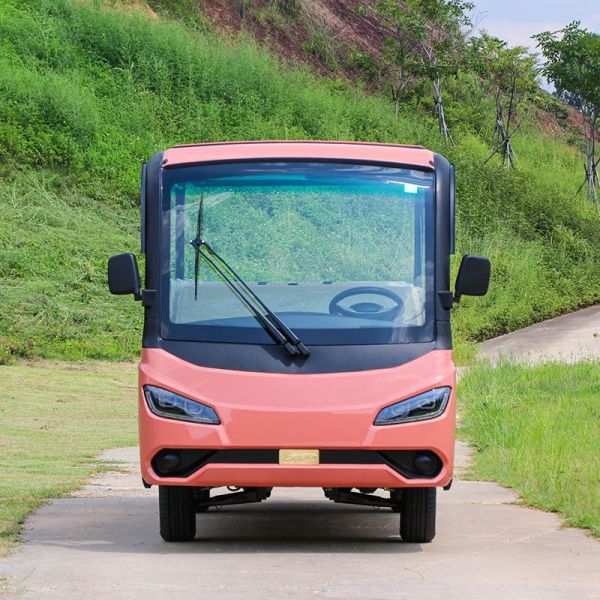

Product Image

100% Waterproof Electric Sightseeing Cart For 14 Passenger AC system100% Waterproof Electric Sightseeing Cart For 14 Passenger AC system100% Waterproof Electric Sightseeing Cart For 14 Passenger AC system

100% Waterproof Electric Sightseeing Cart For 14 Passenger AC system

100% Waterproof Electric Sightseeing Cart For 14 Passenger AC system

100% Waterproof Electric Sightseeing Cart For 14 Passenger AC system

100% Waterproof Electric Sightseeing Cart For 14 Passenger AC system
