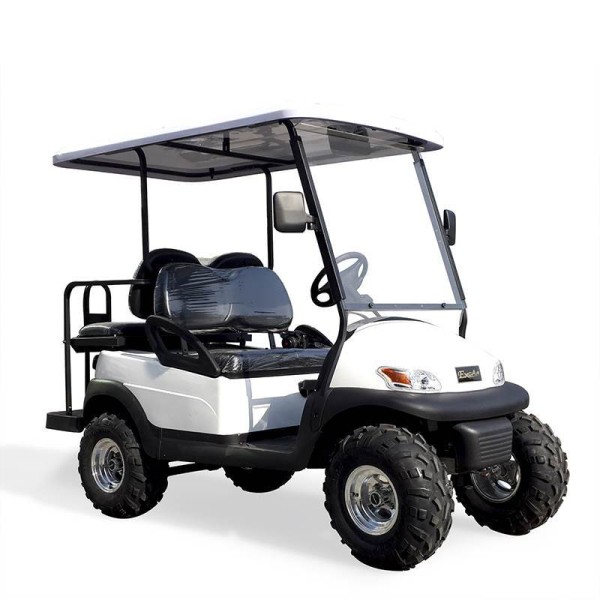

White Electric Hunting Carts with Curties Controller 48V 275A
White Electric Hunting Carts with Curties Controller 48V 275A
White Electric Hunting Carts with Curties Controller 48V 275A
White Electric Hunting Carts with Curties Controller 48V 275A
White Electric Hunting Carts with Curties Controller 48V 275A
White Electric Hunting Carts with Curties Controller 48V 275A
White Electric Hunting Carts with Curties Controller 48V 275A
White Electric Hunting Carts with Curties Controller 48V 275A
Specifications
Brand Name :
Excar
Model Number :
A1S2
Certification :
CE
Place of Origin :
China
MOQ :
1pc
Price :
Negotiate
Payment Terms :
T/T, L/C
Supply Ability :
3000pcs per year
Delivery Time :
7-15 working days
Packaging Details :
20' container or 40' container
Body color :
can be customized
Roof color :
White,black and white
Seat color :
White,black and white
Motor :
ADC motor
Controller :
Curties controller 48V 275A
Batteries :
Trojan battery
Charger :
Intelligent onboard charger
Transaxle :
Italy graziano axle
Brand :
EXCAR
Description

EXCAR White 4 Seat dune buggy club car golf cart electric cars suv beach buggy car

Excar Used golf cart with the same parts as Club Car,listed as below

1, Aluminum chassis
2, Enpower charger
3, Rear drum brake
4, ADC motor 48V 6pcs*8V
5, Curties controller

Item Description
System DC system AC system
Controller Curtis controller 1266A-5201, 275A, imported from USA directly Curtis controller 1234E-5221, 275A, imported from USA directly
Motor

ADC brand Separately excited
DC motor 48V 3.7kw

ADC brand Separately excited
AC motor 48V 5kw
Battery Trojan battery, T875,8V*6pcs, imported from USA directly Trojan battery, T875,8V*6pcs, imported from USA directly
Transaxle

Italian GRAZIANO axle
with gear ration 1:12

Italian GRAZIANO axle
with gear ration 1:16
Charger

High Frequency onboard charger
48V/17A regulator

High Frequency onboard charger
48V/17A regulator



Performance

Item Description
system DC system AC system
Passenger Capacity 2 2
Climbing capacity(full load) 30% 35%
Max. forward speed 23km/h 45km/h
Endurance mileage 70-90km 80-90km
Charging time 8-10 hours 8-10 hours
Max.loading weight 360kgs 360kgs
Min.turning radius 2.9m 2.9m
Max. movement after brake at speed of 20km/h ≤4m ≤4m



* 1) based on the test conditions: 20km/h speed, flat and straight concrete road, wind speed less than 5m/s, temperature of 25 Celsius degree;
2) Range will vary depending on temperature, grade, payload and driving style.


Dimensions

Item Description
Overall dimensions (L x W x H) 3100x1200x2100mm
Ground clearance 114mm
Wheelbase 1670mm
Front wheel tread (mm) 860mm
Rear wheel tread (mm) 970mm


Packing & Shipping

Excar golf cart will be packed in steel crate

Model Dimension(mm) 20” container 40” container
A1S2 With roof & windshield Without roof & windshield With roof & windshield Without roof & windshield With roof & windshield Without roof & windshield
2641*1219*1727 2641*1219*1250 4 units 8units 10units 20units

Product details

White Electric Hunting Carts with Curties Controller 48V 275A

White Electric Hunting Carts with Curties Controller 48V 275A

White Electric Hunting Carts with Curties Controller 48V 275A

FAQ:

1, what's your warranty time?

Usually for 1 year

2, What's the production time?

Normally for 7-15 working days

3, What's your payment term?

T/T 30% deposit and balance paid before shipment

4, Can we also purchase the parts?

Yes,if you do maintainess service,you can also buy parts from us

5, How do you provide after-sales once customer bought the cart from us?

Once you purchase the cart from us,then i will provide you manual to learn it and tell you how to fix it.

If you need,we can arrange our technist person to fly to your area and help you solve it.
