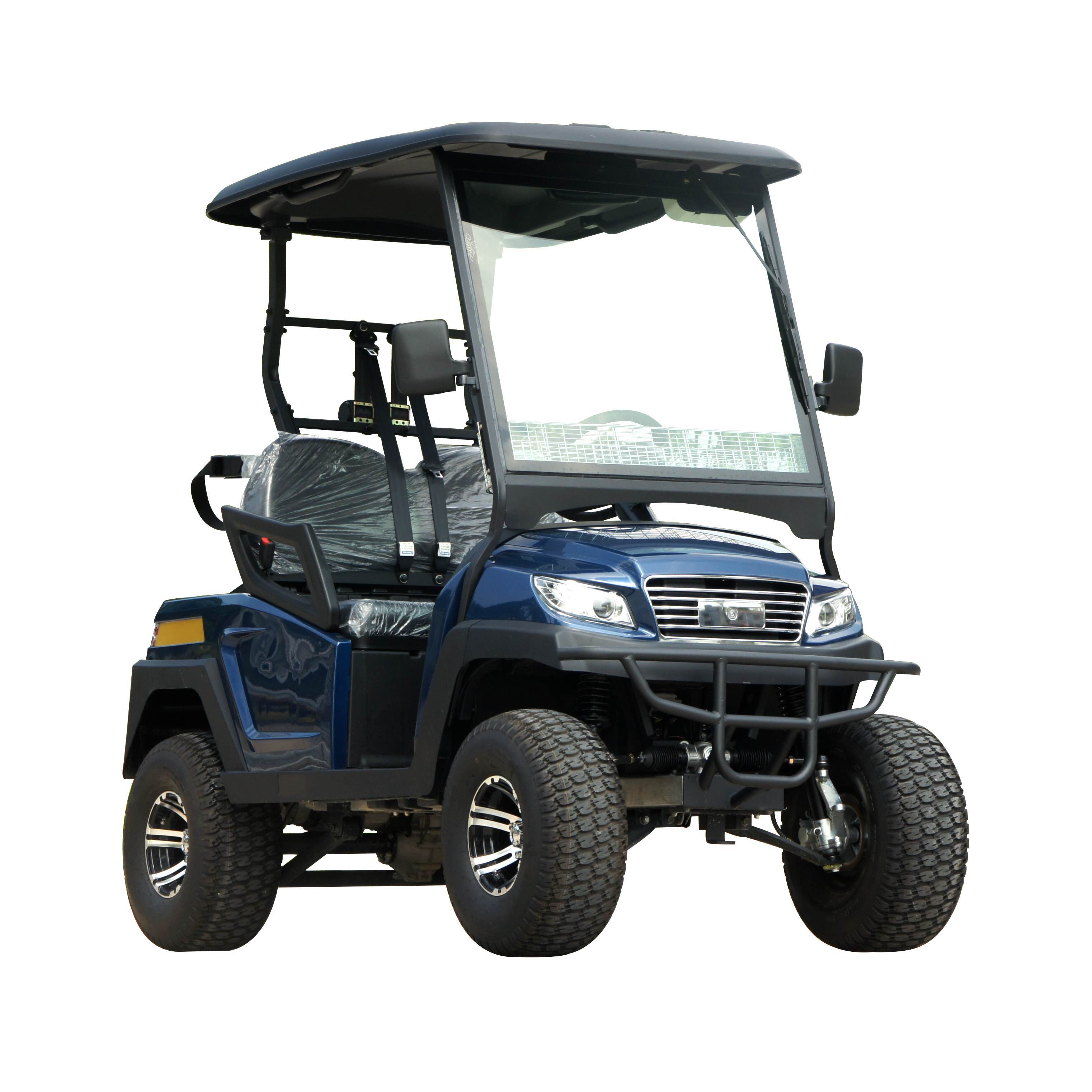

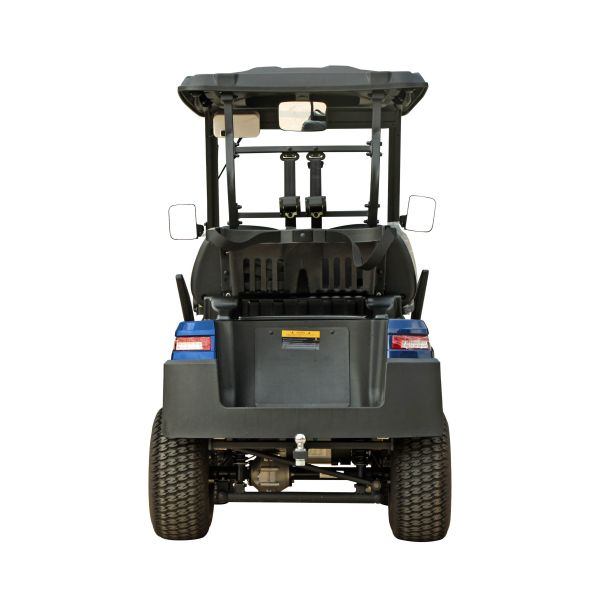

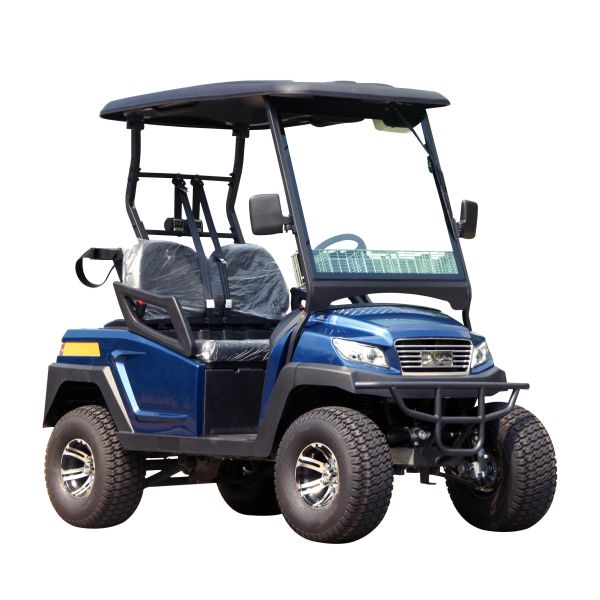

White / Black Electric Golf Cart For Hunting , Max. forward speed 45km/
White / Black Electric Golf Cart For Hunting , Max. forward speed 45km/
White / Black Electric Golf Cart For Hunting , Max. forward speed 45km/
White / Black Electric Golf Cart For Hunting , Max. forward speed 45km/
White / Black Electric Golf Cart For Hunting , Max. forward speed 45km/
White / Black Electric Golf Cart For Hunting , Max. forward speed 45km/
White / Black Electric Golf Cart For Hunting , Max. forward speed 45km/
White / Black Electric Golf Cart For Hunting , Max. forward speed 45km/
White / Black Electric Golf Cart For Hunting , Max. forward speed 45km/
White / Black Electric Golf Cart For Hunting , Max. forward speed 45km/
Specifications
Brand Name :
Excar
Model Number :
M1S2
Certification :
CE
Place of Origin :
China
MOQ :
1pc
Price :
Negotiate
Payment Terms :
T/T, L/C
Supply Ability :
3000pcs per year
Delivery Time :
7-15 working days
Packaging Details :
20' container or 40' container
Body color :
can be customized
Roof color :
White,black and white
Seat color :
White,black and white
Motor :
ADC motor 48V 3KW
Controller :
Curties controller 48V 275A
Batteries :
Trojan battery
Charger :
Intelligent onboard charger
Transaxle :
Italy graziano axle
Seat :
4 seater
Brand :
EXCAR
Description

China EXCAR 4 Seat electric golf cart hunting buggy club car suv beach golf buggy car


Golf cart had become one of our major products in the recent years. In today when an environmental problem is increasingly serious,it is becoming more popularby the day.

Description

Item Description
System DC system AC system
Controller Curtis controller 1266A-5201, 275A, imported from USA directly Curtis controller 1234E-5221, 275A, imported from USA directly
Motor

ADC brand Separately excited
DC motor 48V 3.7kw

ADC brand Separately excited
AC motor 48V 5kw
Battery Trojan battery, T875,8V*6pcs, imported from USA directly Trojan battery, T875,8V*6pcs, imported from USA directly
Transaxle

Italian GRAZIANO axle
with gear ration 1:12

Italian GRAZIANO axle
with gear ration 1:16
Charger

High Frequency onboard charger
48V/17A regulator

High Frequency onboard charger
48V/17A regulator



Performance

Item Description
system DC system AC system
Passenger Capacity 2 2
Climbing capacity(full load) 30% 35%
Max. forward speed 23km/h 45km/h
Endurance mileage 70-90km 80-90km
Charging time 8-10 hours 8-10 hours
Max.loading weight 360kgs 360kgs
Min.turning radius 2.9m 2.9m
Max. movement after brake at speed of 20km/h ≤4m ≤4m



* 1) based on the test conditions: 20km/h speed, flat and straight concrete road, wind speed less than 5m/s, temperature of 25 Celsius degree;
2) Range will vary depending on temperature, grade, payload and driving style.


Dimensions

Item Description
Overall dimensions (L x W x H) 3200x1200x2000mm
Ground clearance 150mm
Wheelbase 1670mm
Front wheel tread (mm) 860mm
Rear wheel tread (mm) 970mm



Option Accessories

To increase the sales value of our golf cart, we also provide many optional accessories.

Item Option description Item Option description
1 E-key 11 2-point seatbelt
2 Hinged windshield 12 Battery water refill system
3 Laminated windshield with wiper 13 Digital meter
4 Steel brush guard 14 EM brake
5 Front steel basket 15 Four wheel disc brake
6 Inner rear view mirror 16 Carlisle 205/50-10 tyre with10inch wheel
7 Side rear view mirror 17 Ice box
8 Enclosure 18 Sand bottle
9 Sunshine cover 19 Sand rake
10 Golf bag cover 20 Ball washer

Details parts listed as below:

※ Advanced Disc Brake Technology
※ Global Special LED Headlight
※ Italy Graziano Transaxle
※ Curtis Controller 48V 275A
※ Special Design Battery Tray
※ Rear View Mirror And Driver/Passenger Side Mirrors
※ Automotive Safty Glass Windshield
※ Deep Cup Holders
※ USA Imported Unique E-KEY
※ Eletromagnetic Brake Makes Driving More Safty
※ 100% Waterproof accelerator


Packing & Shipping

Excar golf cart will be packed in steel crate

Model Dimension(mm) 20” container 40” container
A1S2 With roof & windshield Without roof & windshield With roof & windshield Without roof & windshield With roof & windshield Without roof & windshield
2641*1219*1727 2641*1219*1250 4 units 8units 10units 20units



Product details

White / Black Electric Golf Cart For Hunting , Max. forward speed 45km/

White / Black Electric Golf Cart For Hunting , Max. forward speed 45km/
Color

White / Black Electric Golf Cart For Hunting , Max. forward speed 45km/
White / Black Electric Golf Cart For Hunting , Max. forward speed 45km/
