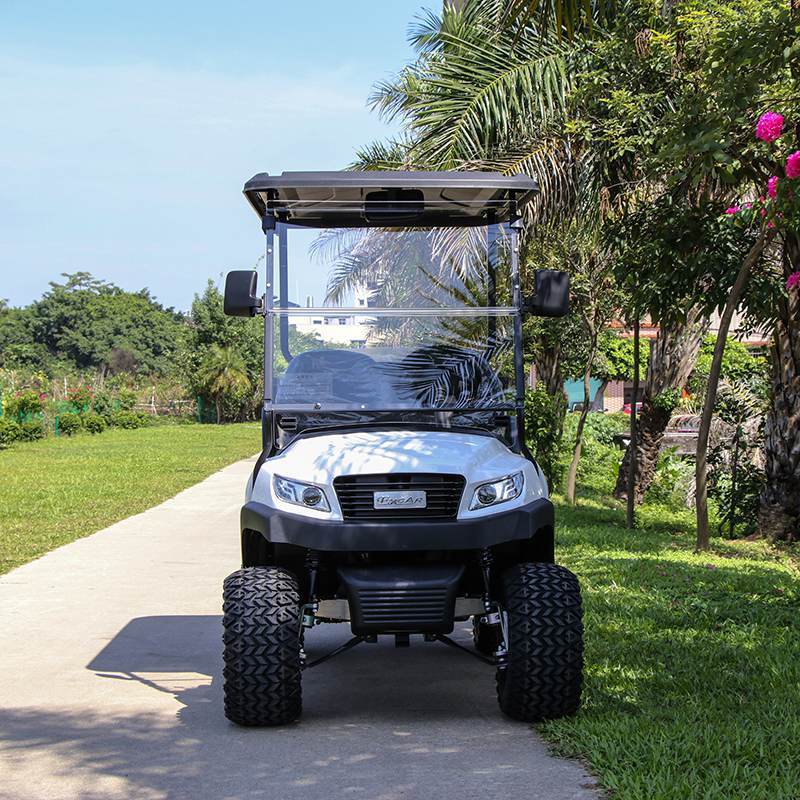

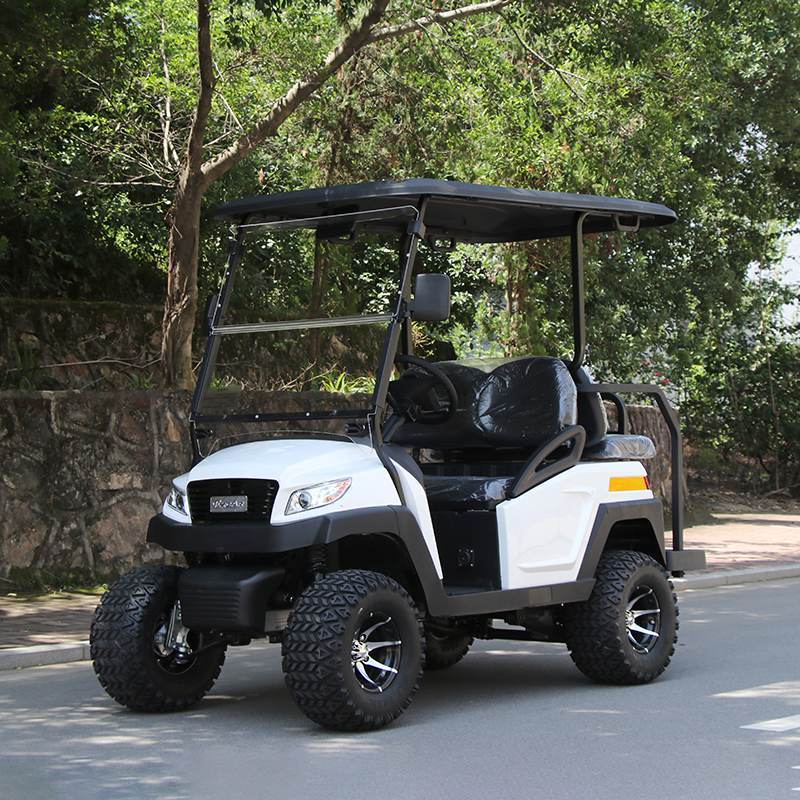

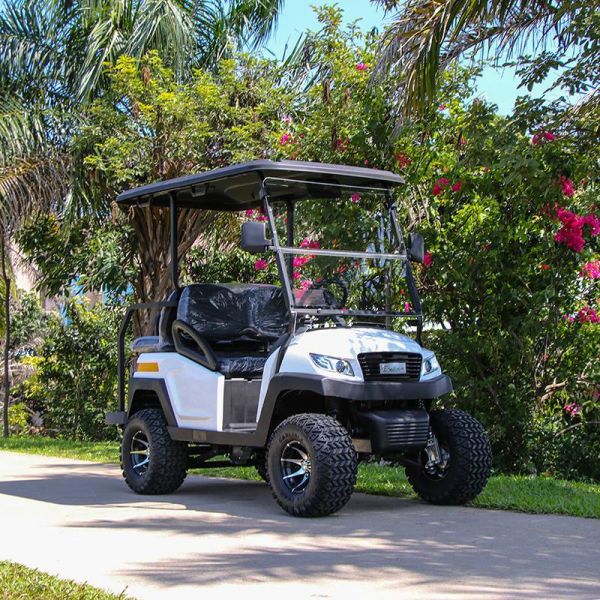

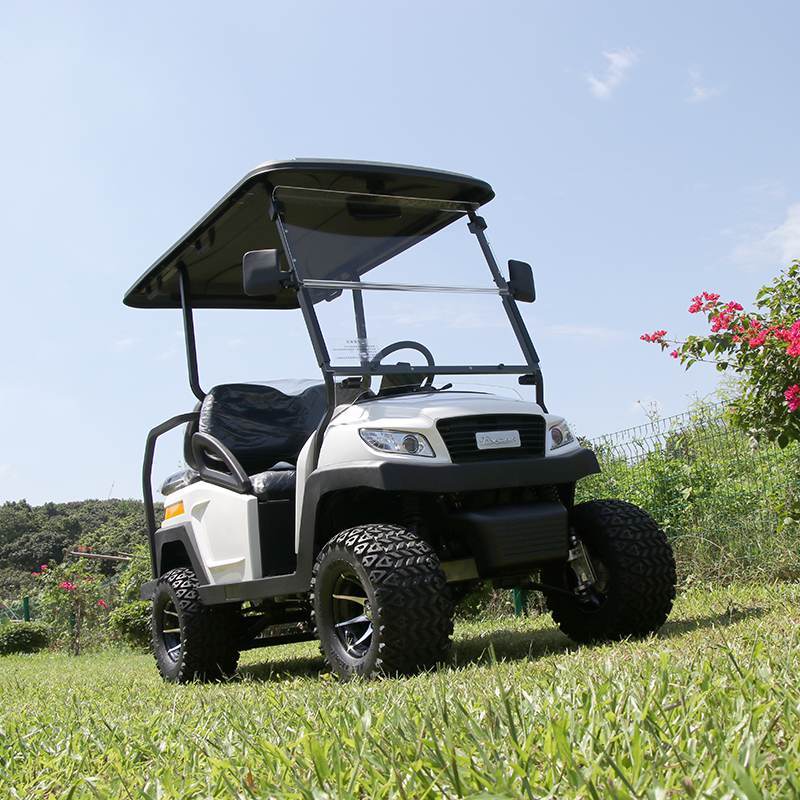

EXCAR Electric Hunting Buggy With Trojan Battery/Curtis Controller
EXCAR Electric Hunting Buggy With Trojan Battery/Curtis Controller
EXCAR Electric Hunting Buggy With Trojan Battery/Curtis Controller
EXCAR Electric Hunting Buggy With Trojan Battery/Curtis Controller
EXCAR Electric Hunting Buggy With Trojan Battery/Curtis Controller
EXCAR Electric Hunting Buggy With Trojan Battery/Curtis Controller
EXCAR Electric Hunting Buggy With Trojan Battery/Curtis Controller
EXCAR Electric Hunting Buggy With Trojan Battery/Curtis Controller
Specifications
Brand Name :
EXCAR
Model Number :
M1S2+2FF
Certification :
CE
Place of Origin :
China
MOQ :
1 unit
Price :
Negotiate
Payment Terms :
D/A, D/P, Western Union, MoneyGram, L/C, T/T
Supply Ability :
200 units per month
Delivery Time :
7 days after received your deposit
Packaging Details :
LCL shipment Packing:roof move-off packing, steel frame , cartoon paper cover.
Framework :
Aluminium
Body :
All engineering plastic
Batteries :
Lead-acid wet batteries USA Trojan batteries
Controller :
USA Curtis controller 48V 275A
Steer system :
Self-adjusting rack & pinion
Front suspension :
Independent spring suspension
Rear suspension :
Coil spring hydraulic shock absorber
Motor :
ADC separately excited 48V 3.7w
Charger :
48V 17Ah onboard charger
Voltage :
48V
Max.speed :
25km/h or 45km/h
Climbing capacity :
20% or 25%
Endurance :
70-100km
Seat :
soft and supported by plastic board
Windshield :
PC material
Description

Purple Lifted Electric Hunting Carts For Club Course With Onboard Charger

Basic specification

Item Description
Brand Excar
Model M1S2+2FF
Overall dimensions (L x W x H) 3200x1200x1800mm
Ground clearance 150mm
Wheelbase 1670mm
Front wheel tread (mm) 860mm
Rear wheel tread (mm) 970mm

Key Components

System DC system AC system
Controller Curtis controller 1266A-5201, 275A, imported from USA directly Curtis controller 1234E-5221, 275A, imported from USA directly
Motor

ADC brand Separately excited

DC motor 48V 3.7kw

ADC brand Separately excited

AC motor 48V 3kw
Battery Trojan battery, T875,8V*6pcs, imported from USA directly Trojan battery, T875,8V*6pcs, imported from USA directly
Transaxle

Italian GRAZIANO axle

with gear ration 1:12

Italian GRAZIANO axle

with gear ration 1:16
Charger

High Frequency onboard charger

48V/17A regulator

High Frequency onboard charger

48V/17A regulator

Performance

system DC system AC system
Passenger Capacity 4 4
Climbing capacity(full load) 20% 25%
Max. forward speed 23km/h 45km/h
Endurance mileage 60-80km 80-100km
Charging time 8-10 hours 8-10 hours
Max. loading weight 300kgs 300kgs
Min. turning radius 2.9m 2.9m
Max. movement after brake at speed of 20km/h ≤4m ≤4m

Electric System

Item Description
Lights

48V, LED headlight (includes turning light and position light),

LED taillights (includes brake lights and turning light),
Horn Electric horn, 48V
Reverse buzzer Electric, 48V
Combination switch Control the lights and horn
Digital Meter (optional)

Including kilometer indicator, speed indicator, overload indicator, parking brake indicator, clock

Steering & suspersion

Item Description
Steering System

Self-adjusting rack and pinion steering system,

with automatic compensation function
Brake System Rear wheel mechanical brake
Accelerator Holzer type, stepless speed change
Front suspension Mcpherson independent spring suspension
Rear suspension Coil spring hydraulic shock absorber
Driving model Rear axle two stage deceleration, motor direct driving

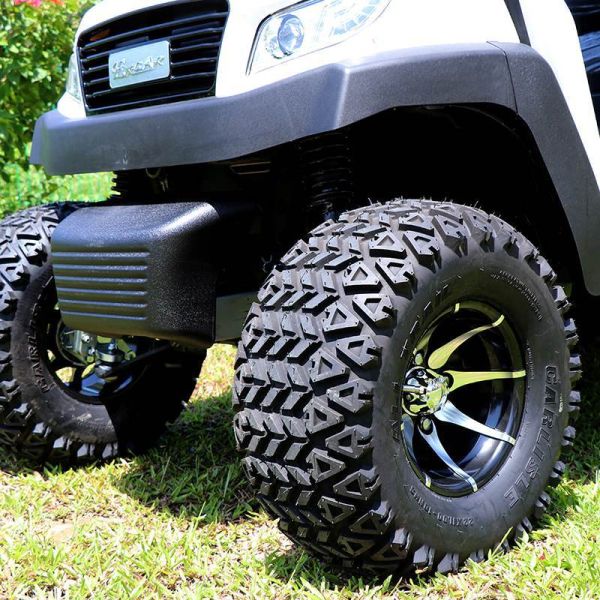

Wheel & Tyre Aluminum wheel & USA Carlisle 18*8.5-8 6 layers

Option Accessories

Item Option description Item Option description
1 E-key 11 2-point seatbelt
2 Hinged windshield 12 Battery water refill system
3 Laminated windshield with wiper 13 Digital meter
4 Steel brush guard 14 EM brake
5 Front steel basket 15 Four wheel disc brake
6 Inner rear view mirror 16 Carlisle 205/50-10 tyre with10inch wheel
7 Side rear view mirror 17 Ice box
8 Enclosure 18 Sand bottle
9 Sunshine cover 19 Sand rake
10 Golf bag cover 20 Ball washer

Color Options

Body colour White Grey Sky blue
Dark blue Red Wine red
Green Dark green Yellow
Purple Champagne Black
These are the popular colours, but your customized color is available,just provide the right Panton No. color
Seat & Roof colour Black Beige White

Packing & Shipping

Model Dimension(mm) 20” container 40” container
M1S2+2FF With roof & windshield Without roof & windshield With roof & windshield Without roof & windshield With roof & windshield Without roof & windshield
3200*1200*1800 3200*1200*1400 4 units 8units 8units 16units

Poduct Image:

EXCAR Electric Hunting Buggy With Trojan Battery/Curtis Controller

EXCAR Electric Hunting Buggy With Trojan Battery/Curtis Controller
