Specifications
Brand Name :
EXCAR
Model Number :
A1S2+2
Certification :
CE
Place of Origin :
China
MOQ :
1 unit
Price :
Negotiate
Payment Terms :
D/A, D/P, Western Union, MoneyGram, L/C, T/T
Supply Ability :
300 units per month
Delivery Time :
7 days after received your deposit
Packaging Details :
LCL shipment Packing:roof move-off packing, steel frame , cartoon paper cover.
Chassis :
Aluminium
Body :
All engineering plastic
Batteries :
USA Trojan T-875
Controller :
USA Curtis 275A
Motor :
ADC separately excited 3.7w
Warranty :
1 year
Max.forward speed :
25km/h
Description

48V Trojan Battery Electric Golf Cart 4 Seater Curtis Controller Electric Golf Carts

Basic specification

Golf cart had become one of our major products in the recent years. Although our monthly output is high, small order is still accepted for this model of golfcart, to facilitate our customers of different kinds.

The outside cover of this golf cart made of steel, unlike the ones made of FRP, our materials are not easily broken. Even after accidents, this kind of golf cart can be easily fixed.

Feather of golf cart:

1.Type sofa chair, comfortable

2. Efficient Italy graziano driving axle

3.FR/disc RR/drum, safety golf cart’s higher driving ability

4.Advanced Disc Brake Technology

5.USA Imported Unique E-KEY

6.100% Waterproof accelerator

7.Special Design Battery Tray

Item Description
Overall dimensions (L x W x H) 3200x1200x2000mm
Ground clearance 150mm
Wheelbase 1670mm
Front wheel tread (mm) 860mm
Rear wheel tread (mm) 970mm

Key Components

System DC system AC system
Controller Curtis controller 1266A-5201, 275A, imported from USA directly Curtis controller 1234E-5221, 275A, imported from USA directly
Motor

ADC brand Separately excited

DC motor 48V 3.7kw

ADC brand Separately excited

AC motor 48V 5kw
Battery Trojan battery, T875,8V*6pcs, imported from USA directly Trojan battery, T875,8V*6pcs, imported from USA directly
Transaxle

Italian GRAZIANO axle

with gear ration 1:12

Italian GRAZIANO axle

with gear ration 1:16
Charger

High Frequency onboard charger

48V/17A regulator

High Frequency onboard charger

48V/17A regulator

Performance

system DC system AC system
Passenger Capacity 4 4
Climbing capacity(full load) 20% 25%
Max. forward speed 23km/h 45km/h
Endurance mileage 60-80km 80-100km
Charging time 8-10 hours 8-10 hours
Max. loading weight 300kgs 300kgs
Min. turning radius 2.9m 2.9m
Max. movement after brake at speed of 20km/h ≤4m ≤4m

Option Accessories

Item Option description Item Option description
1 E-key 11 2-point seatbelt
2 Hinged windshield 12 Battery water refill system
3 Laminated windshield with wiper 13 Digital meter
4 Steel brush guard 14 EM brake
5 Front steel basket 15 Four wheel disc brake
6 Inner rear view mirror 16 Carlisle 205/50-10 tyre with10inch wheel
7 Side rear view mirror 17 Ice box
8 Enclosure 18 Sand bottle
9 Sunshine cover 19 Sand rake
10 Golf bag cover 20 Ball washer

Color options

※ Body Color:White,Black,Beige,Champagene,Dark Green,Red,Metallic Red,Purple,Yellow,Green,Pink,Blue,Dark Blue or made on Panton number

※ Seat Color:Black or Beige

※ Roof Color:Black,White or Beige

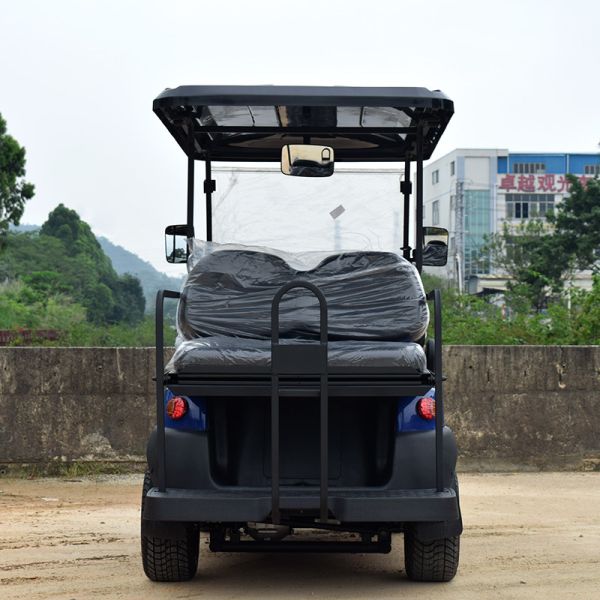

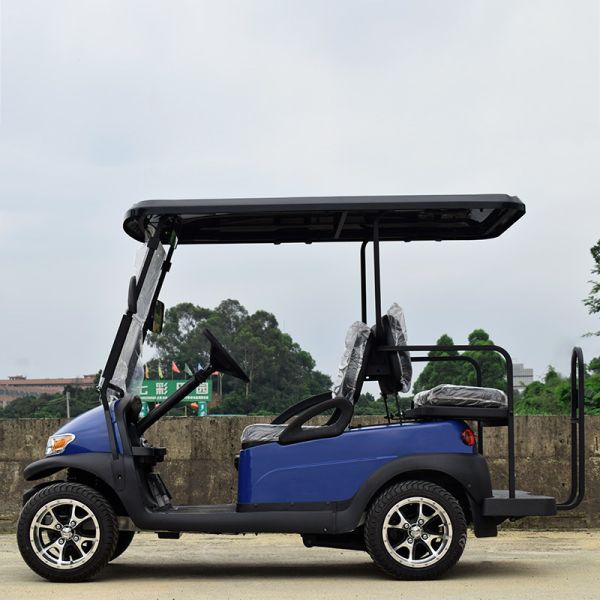

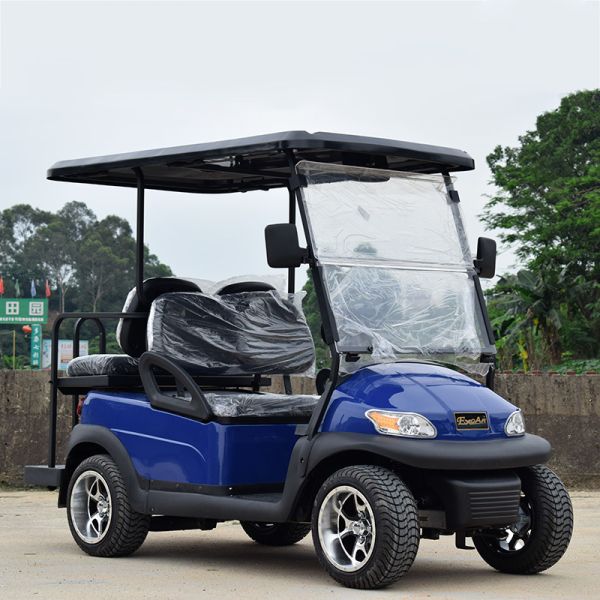

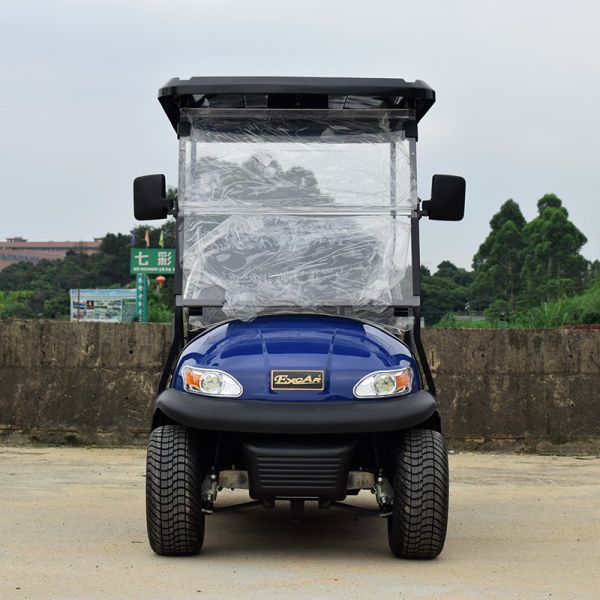

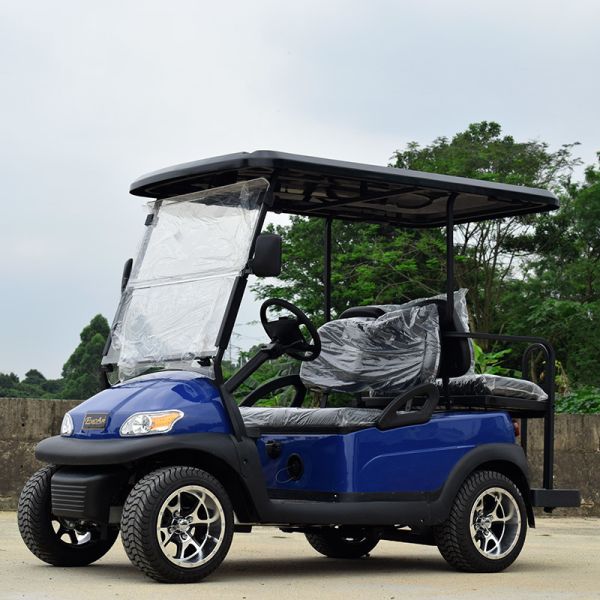

Product Image

Trojan Batteried Used Electric Golf Carts 4 Seater Curtis Controller

Trojan Batteried Used Electric Golf Carts 4 Seater Curtis Controller

FAQ

1.Can you customize the cart according to our special request?

Yes,we can customize the cart according to your request unless some complex parts we hard to make.

2.What is your MOQ?

You can order just 1 unit .But if your order is big, we will provide you with a discount.

3.Can we put the Logo we designed on the cart?

Yes, you can put your own Logo on the cart.

4.What is your lead time for production?

The typical lead time of our cart is 15 days.

5.What kind of warranty Excar provides?

Non-artificial damaged products,shifting for a year or one year repair.

6. What's your payment term?

T/T 30% deposit and balance paid before shipment

Application

* Golf Course,Hotel,Campus,Park,Airport,Tourist Resorts,Museum,Mountain Area,Wedding Place
