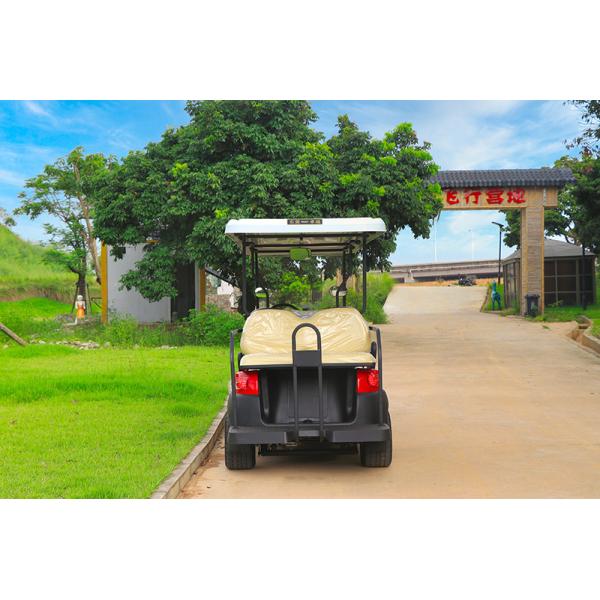

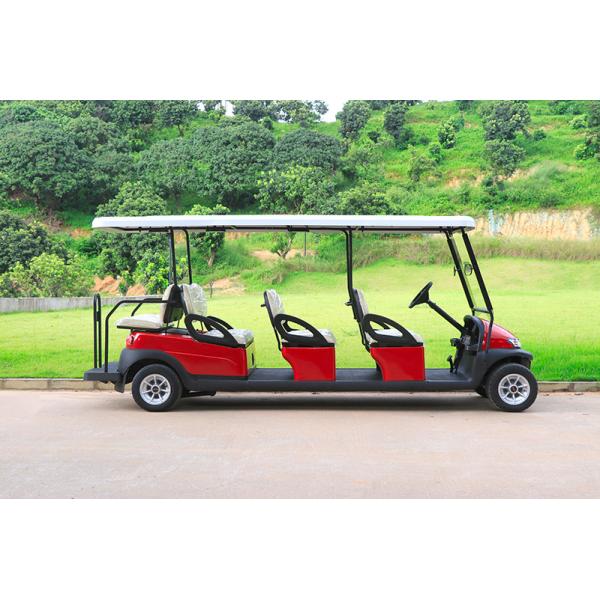

Steel Chassis 24KM/H 8 Seater Club Cruiser Electric Golf Carts
Steel Chassis 24KM/H 8 Seater Club Cruiser Electric Golf Carts
Steel Chassis 24KM/H 8 Seater Club Cruiser Electric Golf Carts
Steel Chassis 24KM/H 8 Seater Club Cruiser Electric Golf Carts
Steel Chassis 24KM/H 8 Seater Club Cruiser Electric Golf Carts
Steel Chassis 24KM/H 8 Seater Club Cruiser Electric Golf Carts
Steel Chassis 24KM/H 8 Seater Club Cruiser Electric Golf Carts
Steel Chassis 24KM/H 8 Seater Club Cruiser Electric Golf Carts
Steel Chassis 24KM/H 8 Seater Club Cruiser Electric Golf Carts
Steel Chassis 24KM/H 8 Seater Club Cruiser Electric Golf Carts
Steel Chassis 24KM/H 8 Seater Club Cruiser Electric Golf Carts
Steel Chassis 24KM/H 8 Seater Club Cruiser Electric Golf Carts
Specifications
Brand Name :
Excar
Model Number :
A1S6+2
Certification :
CE
Place of Origin :
China
MOQ :
1 unit
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
Negotiable
Delivery Time :
20 days
Model :
A1S6+2
Seats: :
8 Seats
Color: :
Customized
Dimension: :
4300/1200/1900mm
Netweight: :
600KG
Climbing Capacity: :
20%
F/R TRACK: :
860/970mm
Battery: :
Trojan Battery
Voltage: :
48V
Max.Forward Speed: :
24KM/H
Ground Clearance: :
114mm
Wheelbase: :
3300mm
Description

Performance

Item Description
system DC system AC system
Passenger Capacity 6 6
Climbing capacity(full load) 20% 25%
Max. forward speed 23km/h 45km/h
Endurance mileage 50-70km 60-80km
Charging time 8-10 hours 8-10 hours
Max. loading weight 510kgs 510kgs
Min. turning radius 5.1m 5.1m
Max. movement after brake at speed of 20km/h ≤4m ≤4m


* 1) based on the test conditions: 20km/h speed, flat and straight concrete road, wind speed less than 5m/s, temperature of 25 Celsius degree;
2) Range will vary depending on temperature, grade, payload and driving style.

Electric System

Item Description
Lights 48V, LED headlight (includes turning light and position light),
LED taillights (includes brake lights and turning light),
Horn Electric horn, 48V
Reverse buzzer Electric, 48V
Combination switch Control the lights and horn
Digital Meter (optional) Including kilometer indicator, speed indicator, overload indicator, parking brake indicator, clock

Key Components

Item Description
System DC system AC system
Controller Curtis controller 1266A-5301, 350A, imported from USA directly Curtis controller 1234E-5321, 350A, imported from USA directly
Motor ADC brand Separately excited
DC motor 48V 3.7kw		 ADC brand Separately excited
AC motor 48V 5kw
Battery Trojan battery, T875,8V*6pcs, imported from USA directly Trojan battery, T875,8V*6pcs, imported from USA directly
Transaxle Italian GRAZIANO axle
with gear ration 1:12		 Italian GRAZIANO axle
with gear ration 1:16
Charger High Frequency onboard charger
48V/17A regulator		 High Frequency onboard charger
48V/17A regulator

Steering & suspersion

Item Description
Steering System

Self-adjusting rack and pinion steering system,

with automatic compensation function
Brake System Rear wheel mechanical brake
Accelerator Holzer type, stepless speed change
Front suspension Mcpherson independent spring suspension
Rear suspension Coil spring hydraulic shock absorber
Driving model Rear axle two stage deceleration, motor direct driving
Wheel & Tyre Aluminum wheel &USA Carlisle 205/50-10 layers

Steel Chassis 24KM/H 8 Seater Club Cruiser Electric Golf CartsSteel Chassis 24KM/H 8 Seater Club Cruiser Electric Golf Carts

Steel Chassis 24KM/H 8 Seater Club Cruiser Electric Golf Carts

a) LCL shipment Packing:

roof move-off packing, steel frame , cartoon paper cover.

Steel Chassis 24KM/H 8 Seater Club Cruiser Electric Golf Carts

b)FCL shipment Packing:

packed by plastic foam & plastic film

Steel Chassis 24KM/H 8 Seater Club Cruiser Electric Golf Carts

Steel Chassis 24KM/H 8 Seater Club Cruiser Electric Golf Carts

Contact details:

Amali Beg/ Sales Dept

Dongguan Excellence Golf & Sightseeing Car Co.,ltd

www.excar.com.cn
