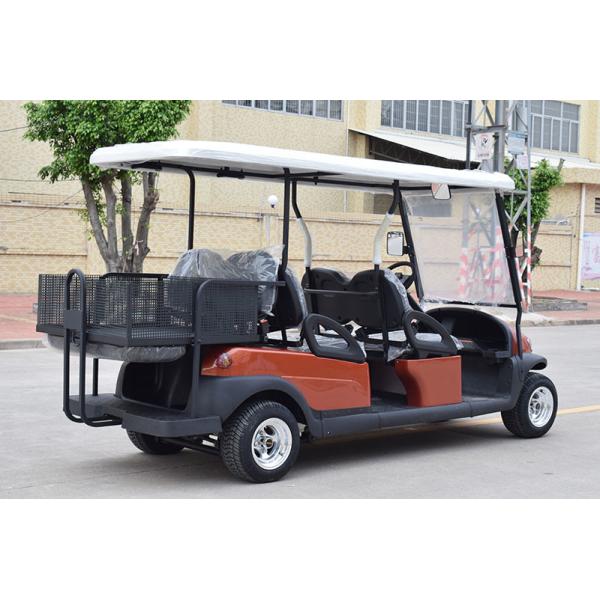

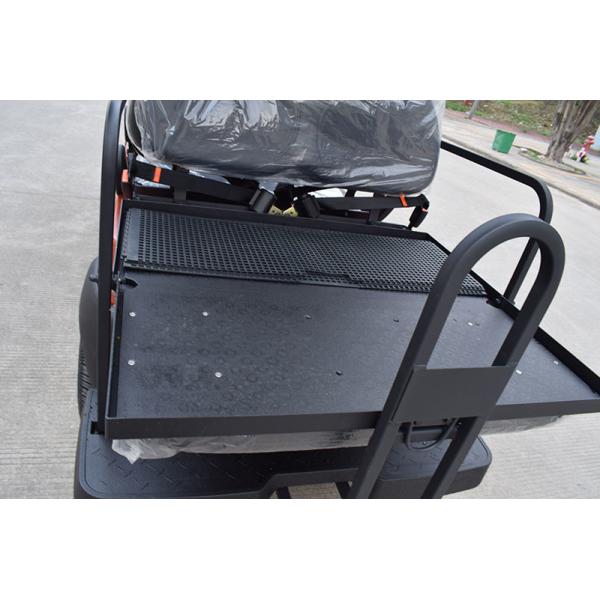

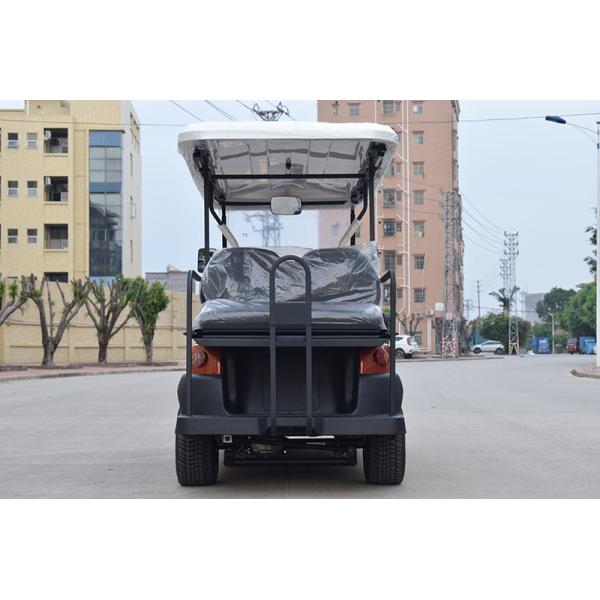

Flip Rear Seat Kit 4+2 Excar Electric Golf Cart
Flip Rear Seat Kit 4+2 Excar Electric Golf Cart
Flip Rear Seat Kit 4+2 Excar Electric Golf Cart
Flip Rear Seat Kit 4+2 Excar Electric Golf Cart
Flip Rear Seat Kit 4+2 Excar Electric Golf Cart
Flip Rear Seat Kit 4+2 Excar Electric Golf Cart
Flip Rear Seat Kit 4+2 Excar Electric Golf Cart
Flip Rear Seat Kit 4+2 Excar Electric Golf Cart
Flip Rear Seat Kit 4+2 Excar Electric Golf Cart
Flip Rear Seat Kit 4+2 Excar Electric Golf Cart
Flip Rear Seat Kit 4+2 Excar Electric Golf Cart
Flip Rear Seat Kit 4+2 Excar Electric Golf Cart
Flip Rear Seat Kit 4+2 Excar Electric Golf Cart
Flip Rear Seat Kit 4+2 Excar Electric Golf Cart
Flip Rear Seat Kit 4+2 Excar Electric Golf Cart
Flip Rear Seat Kit 4+2 Excar Electric Golf Cart
Flip Rear Seat Kit 4+2 Excar Electric Golf Cart
Flip Rear Seat Kit 4+2 Excar Electric Golf Cart
Specifications
Brand Name :
Excar
Model Number :
A1S4+2
Certification :
CE
Place of Origin :
China
MOQ :
1 unit
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
Negotiable
Delivery Time :
20 days
Model: :
A1S4+2
Seat Color: :
White,black And White
Motor: :
NIDEC KDS 48V 5KM ACIM Motor
Batteries: :
Lithium Battery Pack 48V 105Ah
Transaxle: :
Special Rear Axle For Electric Vehicle
Steering System: :
Dual Self-adjusting Rack & pinion
Tyre: :
205/50-10 Tyre
F/R Suspension: :
Mopherson Independent Spring Suspension
Brake System: :
Rear Self-adjusting Drum Brake
Charger: :
Intelligent Onboard Charger
Controller: :
NIDEC KDS Controller 48V 350A
Origin: :
Dongguan China
Description

EXCAR A1S4+2 White 48V lithium Battery Powered Vehicle Electric Golf Car

Item Description
System AC system
Motor NIDEC KDS 48V 5KM ACIM motor
Controller NIDEC KDS controller 48V 350A
Battery lithium battery pack 48V 105Ah
Charger 48V 17A Intelligent onboard charger
Transaxle special rear axle for electric vehicle
Brake system rear self-adjusting drum brake
Steering system dual self-adjusting rack&pinion
F/R suspension mopherson independent spring suspension
tyre 205/50-10 tyre

Performance

Item Description
Number of seat 6
Dimension 3500*1200*1900mm
F/R track 860/970mm
Wheelbase 2490mm
Ground clearance 114mm
Min. turning radius 3.9m
Net wight 522KG
Pay load 360KG
Climbing capacity(full load) 30%
Chassis aluminum chassis
Body cover PP engineering plastic
Max.forward speed 35 KM/H
Range 60-80KM

* 1) based on the test conditions: 20km/h speed, flat and straight concrete road, wind speed less than 5m/s, temperature of 25 Celsius degree;

2) Range will vary depending on temperature, grade, payload and driving style.

Electric System

Item Description
Lights

48V, LED headlight (includes turning light and position light),

LED taillights (includes brake lights and turning light),
Horn Electric horn, 48V
Reverse buzzer Electric, 48V
Combination switch Control the lights and horn
Digital Meter (optional)

Including kilometer indicator, speed indicator, overload indicator, parking brake indicator, clock

Steering & suspersion

Item Description
Steering System

Self-adjusting rack and pinion steering system,

with automatic compensation function
Brake System Rear wheel mechanical brake
Accelerator Holzer type, stepless speed change
Front suspension Mcpherson independent spring suspension
Rear suspension Coil spring hydraulic shock absorber
Driving model Rear axle two stage deceleration, motor direct driving
Wheel & Tyre Aluminum wheel &USA Carlisle 205/50-10 4 layers

Option Accessories

To increase the sales value of our golf cart, we also provide many optional accessories.

Item Option description Item Option description
1 E-key 11 2-point seatbelt
2 Hinged windshield 12 Battery water refill system
3 Laminated windshield with wiper 13 Digital meter
4 Steel brush guard 14 EM brake
5 Front steel basket 15 Four wheel disc brake
6 Inner rear view mirror 16 Carlisle 215/35-12 tyre with12inch wheel
7 Side rear view mirror 17 Ice box
8 Enclosure 18 Sand bottle
9 Sunshine cover 19 Sand rake
10 Golf bag cover 20 Ball washer

Flip Rear Seat Kit 4+2 Excar Electric Golf CartFlip Rear Seat Kit 4+2 Excar Electric Golf Cart

Flip Rear Seat Kit 4+2 Excar Electric Golf Cart

Flip Rear Seat Kit 4+2 Excar Electric Golf Cart

Flip Rear Seat Kit 4+2 Excar Electric Golf Cart

Flip Rear Seat Kit 4+2 Excar Electric Golf Cart

Flip Rear Seat Kit 4+2 Excar Electric Golf Cart
