CAT305 Tunnel Long Reach Excavator Booms With Boom Cylinder Arm Cylinder
CAT305 Tunnel Long Reach Excavator Booms With Boom Cylinder Arm Cylinder
Specifications
Brand Name :
HYKING
Model Number :
CAT305 tunnel boom
Certification :
ISO,CE
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiation
Supply Ability :
10 sets/month
Delivery Time :
35 days
Packaging Details :
film packing
Name :
Long Reach Excavator Booms
Application :
Tunnel
Max cut depth :
15900 mm
Material :
Q345B+Q690D
Warranty :
6 months
Payment Terms :
L/C,T/T
Description

CAT305 Tunnel Long Reach Excavator Booms With Boom Cylinder Arm Cylinder

Long Reach Excavator Booms Description:

1. Updated product design

2. Optimized materials selection

3. Advanced manufacturing process and production technology

4. All are in the line with global standards

5. By long time testing, proved to be excellent

For all long boom we produced,will supply follow parts:

  • Bucket:1 pcs
  • Linkage:1 kits
  • Bucket cylinder:1 pcs
  • Hydraulic pipe:1 kits
  • Lubricant pipe:1 kits
  • Counter weight(if need):1 pcs
  • Stick cylinder:Can match original stick cylinder to save cost,if you need,we also can prepare

Long Reach Excavator Booms Specification:
Model LR120 LR200-1 LR200-2 LR350 LR400 LR450
Total length (mm) 13000 15500 18000 20000 22000 24000
Self weight (kg) 3000 4150 4400 6000 6500 7000

Max cut depth

(mm)

 9000 11340 12200 14500 16100 18000
Max reach (mm) 12500 15100 17600 19600 21600 23200

Max cut height

(mm)

 11300 12510 13500 14920 16100 17300

Folding height

(mm)

 2900 2980 3040 3320 3400 3430

Bucket capacity

(cum)

 0.3 0.6 0.4 0.5 0.6 0.6

excavator tonnage

(ton)

 10~15 16~22 20~24 30~36 35~42 40~50

Above parameter is our standard parameters,if you need special design,we can customize for you.

CONTACT US for more details now

RSBM BUCKETS
Item
Material
Parts
Configuration &Capability
Fit Models
Standard/HD Bucket
Q345B

Adapter, Teeth,

Side cutter
Standard plate thickness like the original factory, domestic high quality tooth plate.
For 5-30T excavator.
cat307 312 320 ,R55 R210 PC200 PC220 EX120 EX200 EC160
Rock Bucket
NM500
NM400 Q345B

Adapter,Teeth,Side cutter,protector, wearing block
Consolidated plate on the bottom, enhance the thickness of side plate, and install protective board, so that it can resist grinding and bending efficiently.

FOR 20-100T excavator. Such as: CAT 320 325 330 345 PC200 220 300 350 450 600 800 1250 ZX 200 300 400 870 1200 SK200 210 250 350 460 EC210 240 290 360 700 etc

Heavy duty Rock Bucket

HARDOX400

NM500
NM400
Q345B

Adapter,Teeth,Side cutter,protector, wearing block
Add fixed plate on the bottom and side guard plates, install protection plates; the tooth adapters adopt rock-specific products, featuring strong wear resistance and bending resistance.

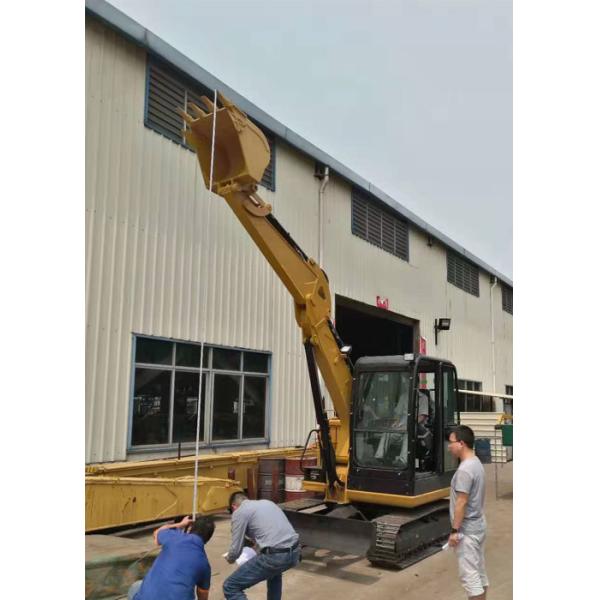

Long Reach Excavator Booms Details

CAT305 Tunnel Long Reach Excavator Booms With Boom Cylinder Arm Cylinder
