HPV012 HPV0102 Handok 9191164 Excavator Hydraulic Pump For ZX240 ZX200 EX200-6 ZX210
HPV012 HPV0102 Handok 9191164 Excavator Hydraulic Pump For ZX240 ZX200 EX200-6 ZX210
HPV012 HPV0102 Handok 9191164 Excavator Hydraulic Pump For ZX240 ZX200 EX200-6 ZX210
HPV012 HPV0102 Handok 9191164 Excavator Hydraulic Pump For ZX240 ZX200 EX200-6 ZX210
Specifications
Brand Name :
Belparts
Model Number :
ZX240 ZX200 EX200-6 ZX210
Certification :
OEM
Place of Origin :
China
MOQ :
1PCS
Price :
Negotiated price
Payment Terms :
T/T, Western Union, PayPal
Supply Ability :
500 pieces per month
Delivery Time :
1-5 days
Packaging Details :
Wooden case
Name :
Hitachi Hydraulic Main Pump
Model :
ZX240 ZX200 EX200-6 ZX210
Pump model :
HPV012 HPV0102
Packing :
wooden packing
Part number :
9191164
Material :
Casting Iron
Description

HPV012 HPV0102 Handok 9191164 Excavator Hydraulic Pump For ZX240 ZX200 EX200-6 ZX210

HPV012 HPV0102 hydraulic pump , we can supply pump assy , we have handok brand or genuine brand , just depend on which you need , It can fit in ZX240 ZX200 EX200-6 ZX210 , if you don't need the pump assy , we also have the hydraulic pump parts . For the hydraulic parts , you just need to send us the size of the piston shoe , so we can check the parts according to the piston shoe size . , but it will be better if you send me the nameplate of the pump and pump picture , For the hydraulic parts , we are the professional supplier !

Product Description

Application

Hitachi Excavator

Part name

Hydraulic Main Pump

Part Model

HPV012 HPV0102

Model

ZX240 ZX200 EX200-6 ZX210

MOQ

1PCS

Part number

9191164

Payment term

T/T, Western Union, PayPal Etc

Delivery

1 days after the payment received(If have stock)

Brand

Handok or genuine


The paramter of the Hydraulic pump :

1. What parameter you need to send us :

The nameplate of the hydraulic main pump and the photo of your old hydraulic pump and machine model. If it is the hot sell type , we can check it easy . But it will be better if you can send more informations about your used pump , so we can make sure it 100 % ,so we can send the right parts to you .

We have lof of information about the pump , detailed pic and it will fit in which model , We have a strong database
, so if we can make sure it , just don't worry , We will be responsible for our quotation .

2 . We have the following brands of pumps

We have China brand / Handok brand / Kawasaki / Kyb / Uchida / Genuine Hydraulic Pump , anyway will try our best to find the brand you need .

Our advantages :

Best price with good quality product For our main product , we have the best price, because we are the agent of the factory supplier , so our cost price will lower than other company , same quality product , our price will be better .
Professional & Experienced Salesperson Our founder has been into this field for more than 7 years , with rich experiences.We will conduct professional knowledge training and assessment for sales staff every month .
Rigorous Serious Professional Attitude About the parts , we will make sure it 100% before the shipment , if can not make sure it , maybe will ask you for more information about your parts , Never take any chances to deliver everything without make sure it 100% .
Detailed information of the product We are professional on our main products , We have detailed pictures and detailed parameters for your main products ,
Convenient &Fast & Affordable Delivery We have lof of customers from more than 96 countries , and we have lof of professional shipping agents , will choose the best way with good price shipment way to send the parts to you , we have DHL , FEDEX ,UPS , Air ,Sea etc , will try our best to meet your requirement .

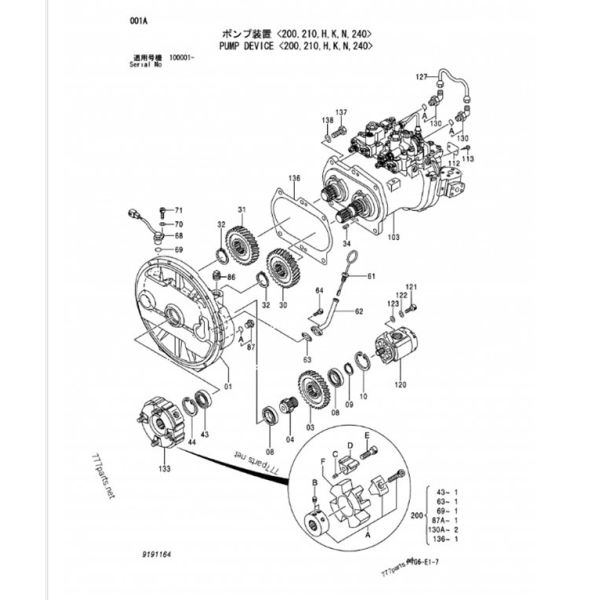

The drawing of the HPV0102


HPV012 HPV0102 Handok 9191164 Excavator Hydraulic Pump For ZX240 ZX200 EX200-6 ZX210

Parts lists

# Part No Part Name Qty.
9191164 PUMP DEVICE (FOR ASSEMBLY OF MACHINE) 1
9195235 PUMP DEVICE (FOR TRANSPORTATION) 1
1 1027184 . CASING; GEAR 1
3 3063840 . GEAR; PILOT 1
4 3055594 . SHAFT; GEAR 1
8 958740 . BRG.; BALL 2
9 962002 . RING; RETAINING 1
10 991725 . RING; RETAINING 1
30 3063842 . GEAR 1
31 3063843 . GEAR 1
32 4274552 . RING; RETAINING 2
34 4099290 . PIN; SPRING 2
43 4310055 . SEAL; OIL 1
44 991725 . RING; RETAINING 1
61 4438059 . GAUGE; LEVEL 1
62 9743977 . PIPE 1
63 9742779 . PACKING 1
64 M340816 . BOLT; SOCKET 2
68 4265372 . SENSOR; REVOL. 1
69 4306888 . O-RING 1
70 A590106 . WASHER; PLANE 1
71 M340616 . BOLT; SOCKET 1
86 4234782 . PLUG 1
87 4092534 . PLUG 1
87A 4509180 .. O-RING 1
103 . PUMP; UNIT 1
112 . NAME-PLATE 1
113 M492564 . SCREW; DRIVE 2
120 4276918 . PUMP; GEAR 1
121 M341030 . BOLT; SOCKET 2
122 984054 . WASHER; SPRING 2
123 4114402 . WASHER 2
127 4369148 . PIPE; E 1
130 4293950 . ELBOW; S 2
130A 957366 .. O-RING 1
133 4416605 . COUPLING 1
133A 4463992 .. HUB 1
133B 4334899 .. SCREW; SET 2
133C 4101345 .. PIN; SPRING 4
133D 4463993 .. INSERT 4
133E 4334894 .. BOLT; SOCKET 4
133F 4463994 .. ELEMENT 1
136 8058352 . PACKING 1
137 J901645 . BOLT 6
138 A590916 . WASHER; SPRING 6
200 4451036 KIT; SEAL 1


FAQ

1 . If I only know the excavator model , but can not offer parts No., what should I do ?

If possible , you can send us pictures of old products , nameplate or the size for checking .

2 . Do you have stock?

For our main products , our have stock for almost of them , the factory supplier warehouse is near us , if the parts we don't have stock , we will tell you before you order it .

3 . What kind of payment terms can I choose ?

You can choose T/T , Western Union,Paypal etc .

4 . When will the delivery be arranged after the payment

After we received the payment , we will arrange the shipment within 24 hours ;

5 . How can I do if there is something wrong with the items ?

First of all , I have confidence in the quality of our products , if you really found something wrong ,please provide pictures for us and we will check. After it is confirmed, please return to us , we will offer the correct item .

6 . What is your main products ?

Our main products are final drive , hydraulic pump , swing gearbox , travel gearbox , swing motor , hydraulic parts . If you need any parts for crawler excavator , you can send it to us . We will try our best to find the parts what you need .
