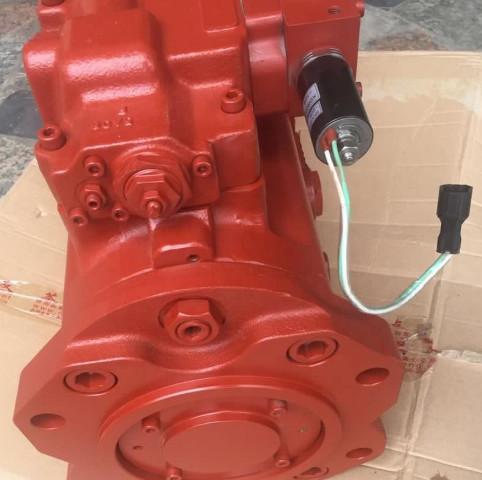

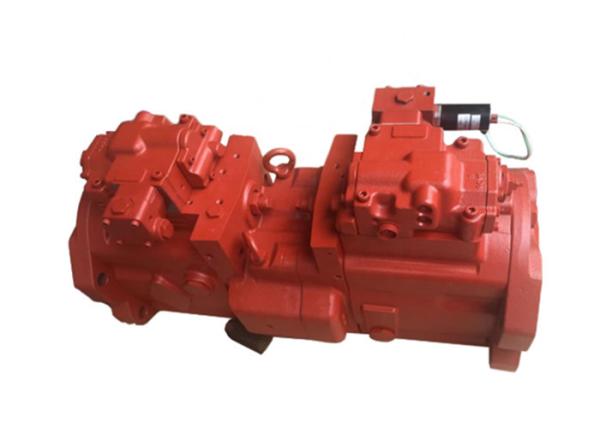

High Pressure Excavator Hydraulic Pump Volvo EC360 EC460 K5V200 Hydraulic Main Pump
High Pressure Excavator Hydraulic Pump Volvo EC360 EC460 K5V200 Hydraulic Main Pump
High Pressure Excavator Hydraulic Pump Volvo EC360 EC460 K5V200 Hydraulic Main Pump
High Pressure Excavator Hydraulic Pump Volvo EC360 EC460 K5V200 Hydraulic Main Pump
High Pressure Excavator Hydraulic Pump Volvo EC360 EC460 K5V200 Hydraulic Main Pump
High Pressure Excavator Hydraulic Pump Volvo EC360 EC460 K5V200 Hydraulic Main Pump
Specifications
Brand Name :
MAOQUN
Model Number :
EC360 EC460 K5V200
Certification :
OEM
Place of Origin :
China
MOQ :
1PCS
Price :
Negotiated price
Payment Terms :
T/T, Western Union,Paypal
Supply Ability :
600 pieces per month
Delivery Time :
2-5days
Packaging Details :
Wooden case
Type :
EC360 EC460
Material :
Steel
Warranty :
6 months, 6 Months
Product name :
Hydraulic Pump
Pump number :
K5V200
Description

High Pressure Excavator Hydraulic Pump Volvo EC360 EC460 K5V200 Hydraulic Main Pump

The paramter of the hydraulic pump you need to send us

1 . The nameplate of your old product
2 . The picture of your old product
3 . The excavator or hydraulic pump model .

If you only need the hydraulic pump parts


1. Please send us the nameplate of the pump
2. Please send us the size of the piston shoe

Product Description

Name or description of a commodity

Hydraulic pump K5V200

Production address

China

Type

EC360 EC460

Minimum Order Quantity

1 pieces

Payment Method

T/T & Western Union & Paypal & Visa & MasterCard & e-Checking & Boleto

Shipping Time

Within 2 days after receiving The payment

Packaging

First layer is packed in plastic and the second in wooden cases

High Pressure Excavator Hydraulic Pump Volvo EC360 EC460 K5V200 Hydraulic Main Pump

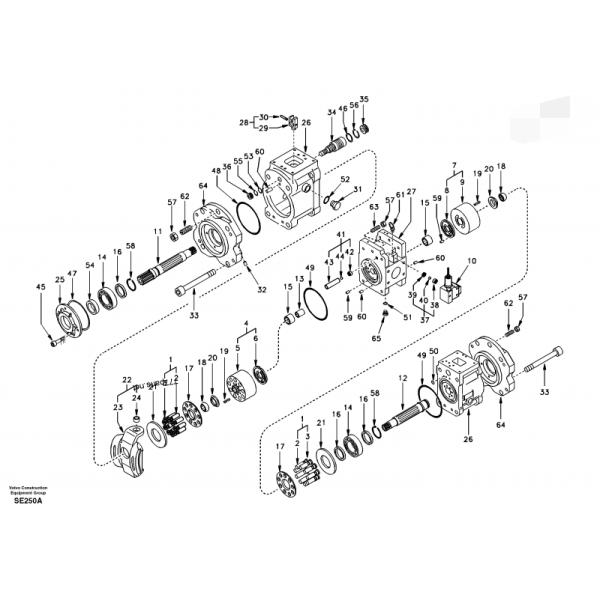

List of spare parts

# Part No Part Name Qty. Price request
SA 7220-00700 Pump 1
1 SA 7223-00140 Piston 2
2 SA 7223-00150 Piston 9
3 SA 7223-00160 Pad 9
4 SA 7223-00780 Cylinder 1
5 SA 7223-00090 Block 1
6 SA 7223-00360 Plate 1
7 SA 7223-00790 Cylinder 1
8 SA 7223-00090 Block 1
9 SA 7223-00370 Plate 1
10 SA 7223-00820 Valve more 1
11 SA 7223-00010 Shaft 1
12 SA 7223-00020 Shaft 1
13 SA 7223-00030 Connector 1
14 SA 7223-00040 Roller Bearing 2
15 SA 7223-00050 Needle Bearing 2
16 SA 7223-00060 Spacer 3
17 SA 7242-10210 Plate 2
18 SA 7242-10150 Bushing 2
19 SA 7223-00180 Spring 18
20 SA 7223-00200 Spacer 2
21 SA 7223-00210 Plate 2
22 SA 14506635 Plate 2
23 SA 7223-00220 Plate 1
24 SA 7223-00240 Bushing 1
25 SA 7223-00280 Cover 1
26 SA 7223-00290 Casing more 2
27 SA 7223-00310 Block 1
28 VOE 14506634 Pin 2
29 SA 7223-00400 Pin 1
30 SA 7223-00570 Pin 1
31 SA 9415-11051 Plug more 3
32 SA 7242-11040 Plug more 29
33 SA 7223-00390 Bolt 8
34 SA 7223-00410 Piston 2
35 SA 7223-00420 Stop 2
36 SA 7223-00430 Stop 2
37 SA 7223-00480 Check valve 2
38 SA 7223-00510 Seat 1
39 SA 7223-00530 Stop 1
40 SA 9676-73200 Ball more 1
41 SA 7223-00490 Check valve 2
42 SA 7223-00510 Seat 1
43 SA 7223-00550 Stop 1
44 SA 9676-73200 Ball more 1
45 SA 9016-10804 Bolt more 4
46 SA 7223-00690 O-ring 2
47 SA 9511-22105 O-ring more 1
48 SA 7223-00590 O-ring 2
49 SA 7223-00600 O-ring 2
50 SA 9511-12008 O-ring more 16
51 SA 9511-12011 O-ring more 3
52 SA 9511-12024 O-ring more 3
53 SA 7223-00700 O-ring 2
54 SA 7223-00710 Seal 1
55 SA 7223-00640 Ring 2
56 SA 7223-00650 Ring 2
57 SA 9111-12000 Nut more 4
58 SA 9541-01045 Snap Ring more 2
59 SA 7242-10560 Pin 2
60 SA 7223-00660 Spring Pin 4
61 SA 9031-11200 Eye Bolt more 2
62 SA 7223-00670 Set Screw 2
63 SA 7223-00680 Set Screw 2
64 SA 7223-00260 Support 2
65 SA 9415-11021 Plug more 1
100 SA 8148-15050 Sealing Kit more 1

Our advantage

1. Original /OEM quality and competitive price

2. Professional work team and quick service

3. Strong and standard package

4. Fast and safe delivery

5. Long export experience in Middle east, Northern Europe, Southeast Asia, North America, Africa, Brazil.

6. Clear details photos what you see is what you get

7. Able to develop & produce according to customer specification with technical drawing

8.Wholesaler and agent of excavator spare parts.

FAQ

1. Q: Are you a factory or a trading company?

A: We are trading company with our own holding factories
2. Q: Can you provide free sample?
A: We provide existing samples for free, but freight will be on your side.
For customized sample,We will charge sample fee

3. Q: What's your MOQ?
A: For items in stock,1pcs is ok, for customlized order,depending on different items.

4. Q: What products do you mainly supply?
A: We mainly supply spare parts for contruction machine and pumps
5. Q: What is your delivery time?
A: Generally 3-4days after payment for stock
10-15days after payment for customized order,It depends on the products & quantity.

6. Q: Which port will you ship the goods ?
A: We offer price of EXW, you can choose delivery by air, vessel, or international express.
Shipping port can be Guangzhou huangpu
