Construction Machinery Excavator Rubber Tracks 320 X 106 X 39mm Fit Bobcat
Construction Machinery Excavator Rubber Tracks 320 X 106 X 39mm Fit Bobcat
Construction Machinery Excavator Rubber Tracks 320 X 106 X 39mm Fit Bobcat
Construction Machinery Excavator Rubber Tracks 320 X 106 X 39mm Fit Bobcat
Construction Machinery Excavator Rubber Tracks 320 X 106 X 39mm Fit Bobcat
Construction Machinery Excavator Rubber Tracks 320 X 106 X 39mm Fit Bobcat
Specifications
Brand Name :
POOYERT
Model Number :
320 X 109 X 39
Certification :
ISO9001:2015
Place of Origin :
SHANGHAI
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
3000 pieces per month
Delivery Time :
10-20 days
Packaging Details :
Wood pallet or container
Product name :
Rubber Crawler rubber track
Width :
320mm
Pitch :
106mm
Link :
39
Total Length :
4251mm
Weight :
141.57
Material :
Rubber & Steel
Color :
Black & Grey
Description

Construction machinery rubber track size 320 x 106 x 39 for BOBCAT / EUROCAT / HANIX​

1.Special Features of the POOYERT Rubber Tracks

- 3 Metal Cores Wound Up: Higher durability & Better flexibility

- Smaller Contact Surface (Smaller Lug): Better grip & traction

- Bi Directional: Tracks are Interchangeable

- Reinforced Edges Between Lugs: Decreasing the chance of slicing

- Jointless: Track is much stronger than the joint type

2.Product Information

1.Name of commodity Rubber Track 320X106X39
2.Width 320mm
3.Pitch 106mm
4.Links 39
5.Total Length 4134mm
6.Weight 141.00kg
7.Material Rubber & Steel
8.Steel cord type Continuous inner steel cord with joint free
9.Warranty Guarantee one year under normal use

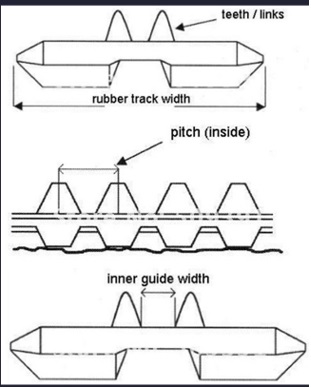

5. How to confirm the size of the rubber tracks?
Normally, we quote to our clients according to the size of the rubber track. The size of the rubber track including width of the rubber track, pitch length of the rubber track, and the links.
Size: Width x Pitch x Links Unit: mm

Construction Machinery Excavator Rubber Tracks 320 X 106 X 39mm Fit Bobcat

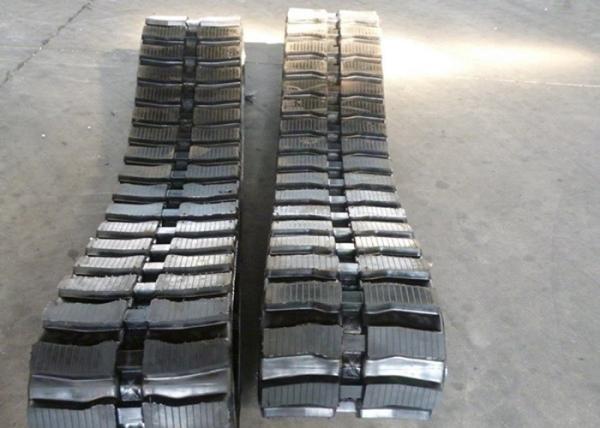

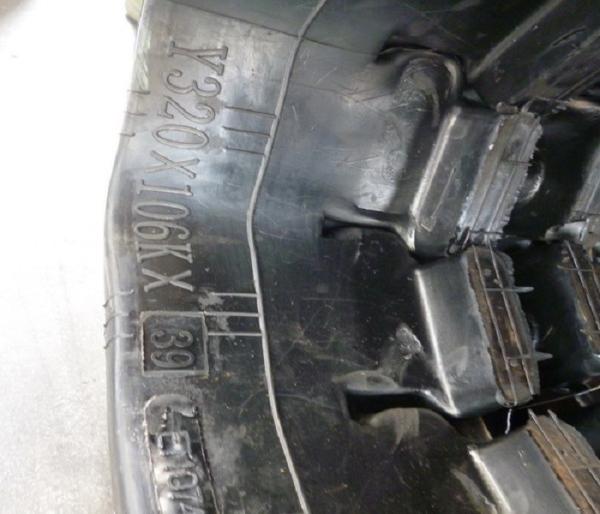

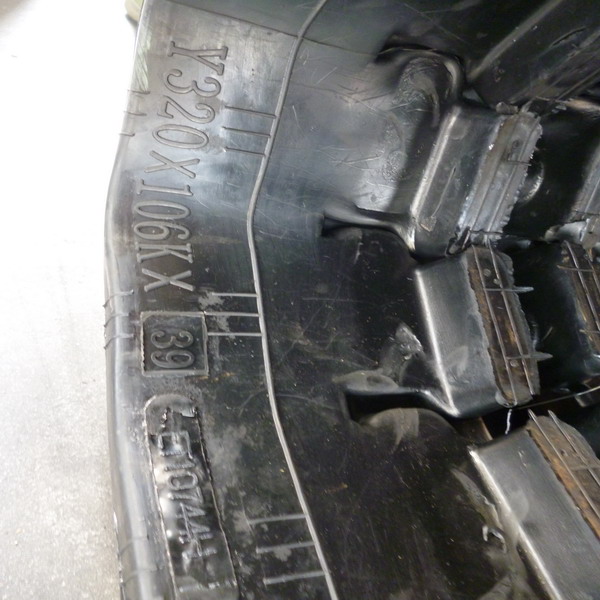

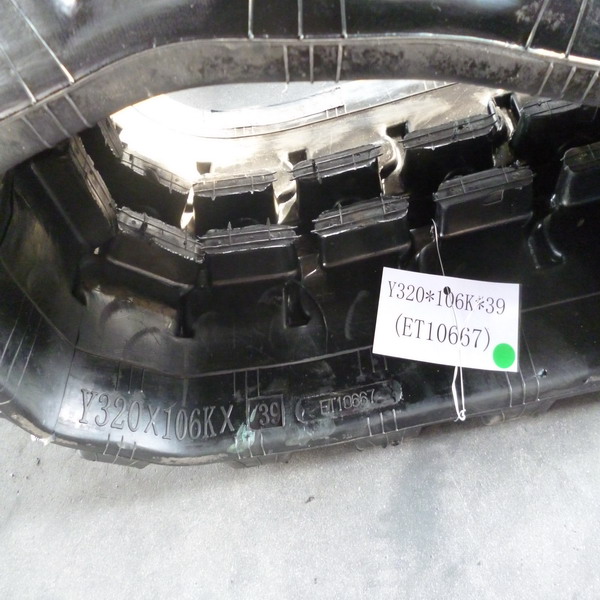

6.Picture

Construction Machinery Excavator Rubber Tracks 320 X 106 X 39mm Fit Bobcat

Construction Machinery Excavator Rubber Tracks 320 X 106 X 39mm Fit Bobcat

7.Parameter

Excavator Rubber Track
Width*Pitch length(mm) Number of Links Width*Pitch length(mm) Number of Links Width*Pitch length(mm)
130*72 28-53 300*52.5K 72-84 400*72.5KW
150*60 28-49 300*52.5KW 72-92 400*74
150*72 29-40 KB300*52.5 72-92 400*75.5K
170*60 30-40 KB300*52.5N 72-98 B400*86
180*60 30-40 JD300*52.5N 72-98 400*90
180*72 30-58 300*53K 80-84 Y400*142
180*72K 30-37 300*55 70-86 400*144
B180*72K 34-51 300*55.5K 76-82 Y400*144K
B180*72A 30-51 300*71K 72-55 420*100
H180*72 30-50 300*109N 25-42 450*71
190*60 30-40 K300*109 37-41 DW450*71
190*72 34-39 300*109WK 35-42 450*73.5
200*72 34-47 B300*84 78-52 450*76
200-*72K 37-47 T300*86K 48-52 450*81N
230*48 60-84 320*52.5 72-98 450*81W
230*48K 60-84 B320*52.5 68-98 KB450*81.5
230*72 42-56 320*54 70-84 K450*83.5
230*72K 42-56 B320*86 49-52 B450*84
230*96 30-48 320*90 52-56 B450*86
230*101 30-36 320*100 38-54 450*90
250*47K 84 320*100W 37-65 KU450*90
250*48.5K 80-88 Y320*106K 39-43 T450*100K
250*52.5K 72-78 350*52.5 70-92 K450*163
250*72 47-57 350*54.5K 80-86 485*92W
B250*72 34-60 B350*55K 77-98 500*90
B250*72B 42-58 350*56 80-86 500-92
E250*72 37-58 350*75.5K 74 500*92W
250*96 35-38 350*90 42-56 500*100
250*109 35-38 350*100 46-60 K500*146
260*55.5K 74-80 350*108 40-46 600*100
Y260*96 38-41 350*109 41-44 600*125
260*109 35-39 Y370*107K 39-41 700*100
280*72 45-64 400*72.5N 70-80 750*150
Y280*106K 35-42 400*72.5W 68-92 800*125
300*52.5N 72-98 Y400*72.5K 72-74
300*52.5W 72-92 KB400*72.5K 68-76
