Specifications
Brand Name :
PY
Model Number :
QHD-200
Certification :
ISO9001: 2000
Place of Origin :
China
MOQ :
1
Price :
Negotiate
Payment Terms :
T/T
Supply Ability :
60000/PC
Delivery Time :
15-20DAYS
Packaging Details :
Bare Packing or Wooden Pallets
Model No :
QHD-200
Length :
1600mm
Width :
1300mm
Height :
590mm
Loading Bear :
500kg
Warranty :
6 Month
Delivery :
25 Days
Export Market :
Global
Commodity name :
Undercarriage
Description

From Puyi Shanghai New Type Undercarriage For Engineering Machinery

NOTE: Rubber Track Undercarriage Engineering Machinery with Platform for transportation

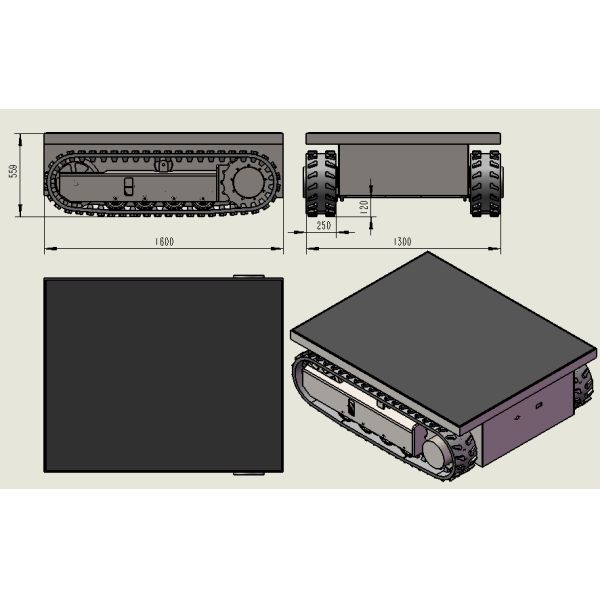

Parameters:

Length Width Height Diameter of driving wheel Type Link No. Weight Load-bearing
1600mm 1300mm 590mm / 200X72 / / 300-500KG



Please tell us the size you need,we will recommend the suitable one to you.
Our small Tracks suit for all mini small Robot/Wheelchair/snowmobile......Machine.

Our company mainly produce Rubber Tracks in China. With Rubber Factory in Shanghai we are strong in offering various of Rubber Tracks for: Crawler, Bulldozer, Excvavtor, Asphalt Paver, (Mini)Harvester, Snowblower, Snowmobile, Wheelchair, Robot...etc.
Yanmar, Terex, Kubota,BridgestoneRubber Tracks... OEM are available.
Transportation Rubber Track Undercarriage 1600mm Length 500kg Loading

product:

Transportation Rubber Track Undercarriage 1600mm Length 500kg LoadingTransportation Rubber Track Undercarriage 1600mm Length 500kg Loading

Transportation Rubber Track Undercarriage 1600mm Length 500kg Loading

About our rubbr track size:

Parameters:


Width*Pitch length(mm)		 Number of Links Width*Pitch length(mm) Number of Links Width*Pitch length(mm) Number of Links
130*72 28-53 300*52.5K 72-84 400*72.5KW 68-92
150*60 28-49 300*52.5KW 72-92 400*74 68-76
150*72 29-40 KB300*52.5 72-92 400*75.5K 74
170*60 30-40 KB300*52.5N 72-98 B400*86 52-55
180*60 30-40 JD300*52.5N 72-98 400*90 42-56
180*72 30-58 300*53K 80-84 Y400*142 36-37
180*72K 30-37 300*55 70-86 400*144 36-41
B180*72K 34-51 300*55.5K 76-82 Y400*144K 36-41
B180*72A 30-51 300*71K 72-55 420*100 50-58
H180*72 30-50 300*109N 25-42 450*71 76-88
190*60 30-40 K300*109 37-41 DW450*71 76-88
190*72 34-39 300*109WK 35-42 450*73.5 76-84
200*72 34-47 B300*84 78-52 450*76 80-84
200-*72K 37-47 T300*86K 48-52 450*81N 72-80
230*48 60-84 320*52.5 72-98 450*81W 72-78
230*48K 60-84 B320*52.5 68-98 KB450*81.5 72-80
230*72 42-56 320*54 70-84 K450*83.5 72-74
230*72K 42-56 B320*86 49-52 B450*84 53-56
230*96 30-48 320*90 52-56 B450*86 52-55
230*101 30-36 320*100 38-54 450*90 58-76
250*47K 84 320*100W 37-65 KU450*90 58-76
250*48.5K 80-88 Y320*106K 39-43 T450*100K 48-65
250*52.5K 72-78 350*52.5 70-92 K450*163 38
250*72 47-57 350*54.5K 80-86 485*92W 74
B250*72 34-60 B350*55K 77-98 500*90 76-82
B250*72B 42-58 350*56 80-86 500-92 72-84
E250*72 37-58 350*75.5K 74 500*92W 78-84
250*96 35-38 350*90 42-56 500*100 71
250*109 35-38 350*100 46-60 K500*146 35
260*55.5K 74-80 350*108 40-46 600*100 76-80
Y260*96 38-41 350*109 41-44 600*125 56-64
260*109 35-39 Y370*107K 39-41 700*100 80-98
280*72 45-64 400*72.5N 70-80 750*150 66
Y280*106K 35-42 400*72.5W 68-92 800*125 80
300*52.5N 72-98 Y400*72.5K 72-74
300*52.5W 72-92 KB400*72.5K 68-76
