ZX200-3 ZX240-3 ZX250-3 Hydraulic Pump Oil Seal 4451039
ZX200-3 ZX240-3 ZX250-3 Hydraulic Pump Oil Seal 4451039
ZX200-3 ZX240-3 ZX250-3 Hydraulic Pump Oil Seal 4451039
ZX200-3 ZX240-3 ZX250-3 Hydraulic Pump Oil Seal 4451039
ZX200-3 ZX240-3 ZX250-3 Hydraulic Pump Oil Seal 4451039
ZX200-3 ZX240-3 ZX250-3 Hydraulic Pump Oil Seal 4451039
ZX200-3 ZX240-3 ZX250-3 Hydraulic Pump Oil Seal 4451039
ZX200-3 ZX240-3 ZX250-3 Hydraulic Pump Oil Seal 4451039
ZX200-3 ZX240-3 ZX250-3 Hydraulic Pump Oil Seal 4451039
ZX200-3 ZX240-3 ZX250-3 Hydraulic Pump Oil Seal 4451039
Specifications
Brand Name :
TOT
Model Number :
ZX200-3 ZX240-3 ZX250-3
Certifiion :
ISO9001
Place of Origin :
China
MOQ :
1 PCS
Price :
Negotiable
Payment Terms :
T/T,
Supply Ability :
3000 Piece/Pieces per Week
Delivery Time :
Within 3-7days after received payment
Packaging Details :
carton/ plywood case
Part number :
4451039
Part name :
Hydraulic pump repair kit , main pump seal kit
Excavator model :
ZX200-3 ZX240-3 ZX250-3
Used for :
Excavator
Applicable Industries :
Machinery Repair Shops, Construction works , Energy & Mining
Warranty :
3 Months
Condition :
New
Weight :
0.5KG
Featur :
High Efficiency, Long Life
MOQ :
1 Set
Description

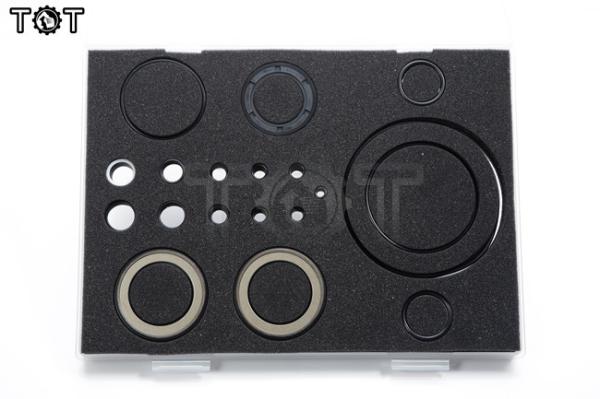

4451039 excavator Hydraulic pump repair kit ZX200-3 ZX240-3 ZX250-3 main pump seal kit

Product Description

The installation quality of O-ring has an important impact on its sealing performance and service life. Leakage problems are often caused by poor installation. During installation, O-rings are not allowed to be scratched, installed incorrectly, or twisted. Before assembly, the sealing groove and sealing mating surface must be strictly cleaned; At the same time, apply grease to the surface to be passed during O-ring assembly. In order to prevent the O-ring from being cut or scratched by sharp edges such as sharp corners and threads during installation, a lead-in angle of 15O ~ 30o shall be reserved at the installed shaft end and hole end. When the O-ring needs to pass through the external thread, a special thin-wall metal guide sleeve shall be used to cover the external thread; If the O-ring needs to pass through the orifice, the orifice shall be inverted into the corresponding bevel shape to prevent the O-ring from being scratched. The bevel angle of the groove is generally a = 120o ~ 140o.

Part Number
4451039
Part name
Hydraulic pump repair kit , main pump seal kit
Brand
O-Ring
Machine Model
ZX200-3 ZX240-3 ZX250-3
MOQ
1SET
Delivery time
3-7 Days
Size
20X15X10
Weight
0.5KG
Packing Type
Carton
Out packing size
20X15X10
Out packing Weight
0.5KG

Compatible equipment models: 4451039:
HU230-A IZX200 IZX200LC MA200 MA200-G SR2000G VR512 VR516FS ZR130HC
ZR420JC ZR900TS ZR950JC ZX140W-3 ZX140W-3-AMS ZX140W-3DARUMA ZX145W-3 ZX145W-3-AMS
ZX160LC-3 ZX160LC-3-AMS ZX160LC-3-HCME ZX170W-3 ZX170W-3-AMS ZX170W-3DARUMA ZX180LC-3
ZX180LC-3-HCME ZX180W ZX180W-AMS ZX190W-3 ZX190W-3-AMS ZX190W-3DARUMA ZX200 ZX200-3
ZX200-3-HCMC ZX200-3G ZX200-5G ZX200-E ZX200-HHE ZX200-X ZX200LC-5G ZX200LC-HHE ZX210-3-AMS
ZX210-3-HCME ZX210-AMS ZX210-HCME ZX210H ZX210H-3 ZX210H-3-HCMC ZX210H-3G ZX210H-5G ZX210K
ZX210K-3 ZX210K-3-HCMC ZX210K-3G ZX210K-5G ZX210LC-3-HCMC ZX210LC-3G ZX210LCH-5G ZX210LCK-3-HCMC
ZX210LCK-5G ZX210N-3-AMS ZX210N-3-HCME ZX210N-AMS ZX210N-HCME ZX210W ZX210W-3 ZX210W-3-AMS
ZX210W-3-HCMC ZX210W-3DARUMA ZX210W-AMS ZX220W-3 ZX225US ZX225US-3 ZX225US-3-HCME ZX225US-E
ZX225US-HCME ZX225USR ZX225USR-3 ZX225USR-E ZX225USR-HCME ZX225USRK ZX225USRK-3 ZX230
ZX230-HHE ZX240-3 ZX240-3-AMS ZX240-3-HCMC ZX240-3G ZX240-5G ZX240-AMS ZX240-HCME ZX240H
ZX240K ZX240LC-3G ZX240LC-5G ZX240LC-HHE ZX240N-3-HCME ZX250-AMS ZX250-HCME ZX250H-3
ZX250H-3G ZX250H-5G ZX250K-3 ZX250K-3G ZX250K-5G ZX250LC-3-HCMC ZX250LC-3-HCME ZX250LC-3G
ZX250LCH-5G ZX250LCK-5G ZX250W-3 ZX260LCH-3G ZX270 ZX270-3 ZX270-HHE ZX280-5G ZX180LC-3-AMS
ZX280LC-3 ZX280LC-3-HCME ZX280LC-5G ZX280LC-AMS ZX280LC-HCME ZX280LCH-3 ZX300W ZX360W-3


Parts on group PUMP;UNIT:

ZX200-3 ZX240-3 ZX250-3 Hydraulic Pump Oil Seal 4451039

Pos. Part No Qty Parts name Comments
+++++++ [1] PUMP;UNIT
1. 1032319 [1] CASING;PUMP
3. 2043207 [1] DISC;DRIVING
4. 2043211 [1] DISC;DRIVING
6. 4410050 [2] BRG.;ROL.
7. 4339171 [2] RING
8. 4622945 [2] BRG.;ROL.
9. 4178173 [2] NUT;BRG.
10. 4338907 [1] RING;THRUST
12. 4333170 [2] SEAL;OIL
13. 4116290 [2] RING;RETAINING
15. 4233165 [1] PLUG
16. 957366 [1] O-RING
19. 8059452 [14] PISTON
21. 4337035 [2] SHAFT;CENTER
22. 4198956 [2] PIN
23. 4179181 [2] SPRING;COMPRES.
25. 2036744 [2] ROTOR
27. 2036795 [1] VALVE
28. 2036786 [1] VALVE
29. 4179179 [4] PIN
31. 3075674 [2] LINK;E
32. 9724756 [4] LEVER
33. 4179177 [4] PIN
34. 4179176 [2] PIN
35. 4146370 [12] RING;RETAINING
36. 4200227 [2] PIN
41. 1027131 [1] HEAD
42. 3069541 [2] PISTON;SERVO
43. 4338053 [2] PIN
44. 4337812 [2] SCREW;SET
46. 4355085 [2] O-RING
47. 4338060 [2] STOPPER
50. 4355083 [2] O-RING
51. 4338061 [2] STOPPER
54. 4180349 [20] O-RING
55. M340825 [16] BOLT;SOCKET
57. 3070581 [1] RING;BACKUP
58. 4099290 [2] PIN;SPRING
59. 4342840 [1] O-RING
60. M341245 [12] BOLT;SOCKET
64. 4436271 [2] SENSOR;PRES.
64A. 4365826 [1] O-RING
67. 9134110 [2] PLUG
67A. 957366 [1] O-RING
69. +++++++ [1] REGULATOR;L I 9207258 <for assembly of machine><for details see "REGULATOR (L)">
69. 9207258 [1] REGULATOR;L <for transportation>
70. +++++++ [1] REGULATOR;R I 9207259 <for assembly of machine><for details see "REGULATOR (R)">
70. 9207259 [1] REGULATOR;R <for transportation>
72. 4515041 [4] PIN;SPRING
73. 4343074 [4] O-RING
74. 4348665 [2] O-RING
80. 9134111 [2] PLUG
80A. 4509180 [1] O-RING
82. 4252767 [1] BRACKET
83. M340613 [1] BOLT;SOCKET
84. A590908 [1] WASHER;SPRING
100. 4451039 [1] KIT;SEAL

Factory Dedails

ZX200-3 ZX240-3 ZX250-3 Hydraulic Pump Oil Seal 4451039

ZX200-3 ZX240-3 ZX250-3 Hydraulic Pump Oil Seal 4451039

Q1: What is brand you can offer in your company?

A: 100% Genuine parts, OEM,Aftermarket

Q2: What about the deliver time?

A: 1)Ready stock:1-3 days 2)Future order:The specific delivery time depends on the items and the quantity. We'll let you know before you place your order.

Q3: What is MOQ?

A: We can accept sample orders. There is no limit on quantity.

Q4: What is package?

A: Original packing or Neutral packing with cartons or wooden cases.If you have any special request, please contact us before delivery.

Q5: What is your payment term?

A: T/T,Western Union,Paypal,Payoneer,Cash

Q6: What is the shipping method?

A: It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and etc). We'll confirm with you before you place the order.
