Features:
1.Applicable for all the make and model of excavator.
2.Standard supply include:bucket,linkage,bucket cylinder, 4oil pipe/hose,6pins,lubricating system
3.Many different material such as Q345B,Q690D,Weldox are optional to suit to your application.
4.Big boom can be split into two sections to be loadable by container.

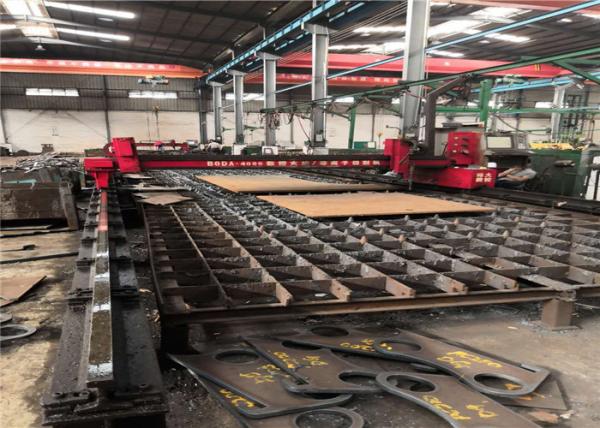

5.All steel plate edge are tapered by bevelling machine before welding , which will enhance welding greatly.
6.One year warranty
7.Some parts can be consolidated using thicker plate or overlapping another plate for heavy-duty application such as mining operation.
8.Conform to Europe Machinery Directive 2006/42/EC Article 12 .We have CE certificate.
9.Extra pipeline can be put on for extra attachments such as breaker, hammer, quick coupler and so
Packing and shipping:
1.We pack it by film at first, then secure it inside the container by fixing to the container wall through steel wire.
2.One container can load 3 complete sets(we use rack to hold the upper sets).
3.Production leadtime is 15 days for 1 set, 20 days for 3 sets
Common Models:
Model | LDB120 | LDB200 | LDB220 | LDB300 | LDB350 | LDB400 | LDB450 |
Total length (mm) | 13000 | 15380 | 15380 | 18000 | 20000 | 22000 | 24000 |
Weight (kg) | 3000 | 4000 | 4200 | 5200 | 6000 | 6500 | 7000 |
Max dig depth (mm) | 9000 | 11340 | 11370 | 13000 | 15000 | 16500 | 18000 |
Max extensive Scope (mm) | 12500 | 15100 | 15100 | 17600 | 19600 | 21600 | 23600 |
Max dig height (mm) | 11300 | 12510 | 12610 | 13720 | 14920 | 16100 | 17300 |
Folding height (mm) | 2900 | 2980 | 3040 | 3210 | 3210 | 3400 | 3400 |
Bucket volume (m3) | 0.3 | 0.4 | 0.4 | 0.4 | 0.5 | 0.6 | 0.6 |
Excavator Tonnage(ton) | 12 | 20 | 22 | 30 | 35 | 40 | 45 |
