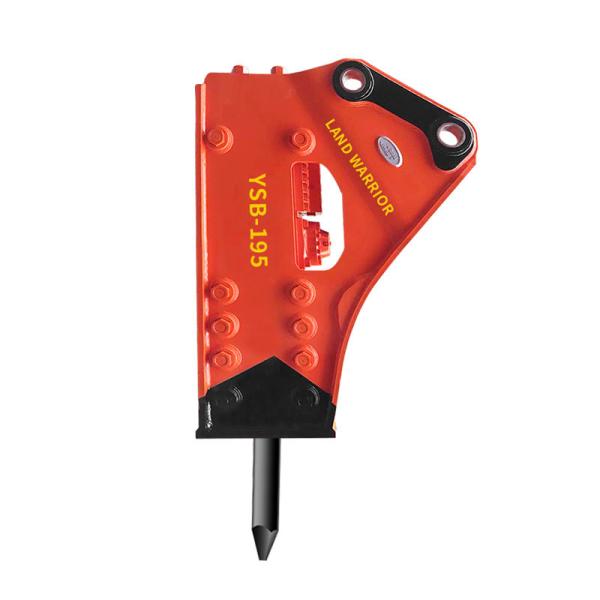

YSB195 Excavator Concrete Breaker Rock Crusher Excavator Triangular Hammer
YSB195 Excavator Concrete Breaker Rock Crusher Excavator Triangular Hammer
Specifications
Brand Name :
FANGBANG
Model Number :
YSB195
Place of Origin :
GUANGZHOU
MOQ :
negotiable
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1000 Piece/Pieces per Week
Delivery Time :
5-8 work days
Packaging Details :
standard packing
impact frequebcy :
180-200 bpm
Suitable Excavator(ton) :
40-55 ton
Chisel Diameter :
195mm
Name :
hydraulic breaker attachment
weight :
2630KG
Quality :
High Guarantee
Description

YSB185 excavator concrete breaker for kubota hydraulic breaker

Product features of excavator concrete breaker

·Designed crushing technology

·Heat treatment technology: enhance heat resistance and wear resistance.

·Low fuel consumption design: reduce the volume of oil cylinder and fuel consumption under the condition of constant oil pressure.

·Durability design of movement: the original imported Korean movement is adopted, and the piston annular oil passage is designed to reduce resistance and make the piston cylinder more durable.

Product model and relevant data

Specname Unit YSBT155 YSB165 YSB165A YSB175 YSB175A YSB185 YSB195 YSB210
Body weight kg 1313 1442 1590 1933 1925 2145 2630 3400
Total weight kg 2577/2574/2968 2571/3156/2916 3015 3910/4470/3902 3725 4420 4680/4793 7700/7045
size mm 2776*590*1382 2820*590*1378 2820*665*1445 3184*670*1670 3255*764*1608 3255*764*1576 3433*764*1635 3600*864*1945
3102*600*760 3820*760*840 3812*760*920 4021*764*920 4290*864*1007
3075*640*760 3337*654*840 3723*670*920
Operating pressure Kg/c㎡ 180-200 160-200 180-220 180-220 180-220 190-220 190-220 200-240
Hydraulic flow range L/min 180-240 200-260 200-250 200-260 220-270 220-270 220-290 290-350
Diameter of house inch 1-1/4 1-1/4 1-1/4 1-1/4 1-1/4 1-1/4 1-1/4 1-1/4
Diameter of tool mm 155 165 165 175 175 185 195 210
Impact frequebcy bpm 300-450 250-400 250-380 200-350 200-300 200-250 180-200 180-200
Suitable carrier ton 28-36 30-40 30-40 35-40 35-45 36-45 40-55 60-80

Common application of breaking hammer:
1. Mining: Mountain opening, mine opening, lattice screen crushing and secondary crushing;
2. Metallurgy: ladle, slag cleaning, furnace body removal, equipment foundation removal;
3. Railway: Mountain opening, tunnel excavation, road and bridge demolition, subgrade compaction;
4. Highway: highway repair, cement pavement broken, foundation excavation;
5. Municipal Garden: concrete crushing, water, electricity, gas engineering construction, old city reconstruction;
6. Buildings: old buildings demolished, reinforced concrete broken;
7. Ships: removing mussels and rust from the hull;
8. Others: ice breaking, frozen soil breaking, sand mold vibration.

GUANGZHOU FANGBANG MACHINERY CO,.LTD
The main product and sales of excavator front end include various types of excavator quick hitch, claw woods device, vibration rammer, crushing pliers, eagle mouth shear,demolition shear, hydraulic suction cup and connect other accessories.
Our products are used in mining metallurgy chemical industry, building materials, construction and railway, highway construction, and other industry and departments, superior cost performance, we hope every customer can buy more affordable products. Our company can offer professional technical support and quality after-sales service and ensure users choose our products at ease.
