Flexible Rubber Engine Drive Coupling CF-A-016-O0-1306 PAT 778322
Flexible Rubber Engine Drive Coupling CF-A-016-O0-1306 PAT 778322
Flexible Rubber Engine Drive Coupling CF-A-016-O0-1306 PAT 778322
Flexible Rubber Engine Drive Coupling CF-A-016-O0-1306 PAT 778322
Flexible Rubber Engine Drive Coupling CF-A-016-O0-1306 PAT 778322
Flexible Rubber Engine Drive Coupling CF-A-016-O0-1306 PAT 778322
Flexible Rubber Engine Drive Coupling CF-A-016-O0-1306 PAT 778322
Flexible Rubber Engine Drive Coupling CF-A-016-O0-1306 PAT 778322
Flexible Rubber Engine Drive Coupling CF-A-016-O0-1306 PAT 778322
Flexible Rubber Engine Drive Coupling CF-A-016-O0-1306 PAT 778322
Specifications
Brand Name :
Huilian
Model Number :
CF-A-016-O0 Coupling
Place of Origin :
China
MOQ :
1 Set
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
10000 pieces per month
Delivery Time :
1-7 days
Packaging Details :
Carton
CF-A Material :
NBR+AL, PE
CF-H Material :
Hytel+AL
FLE-PA Material :
Glassfiber Plastic
Performance :
Power Transmission Coupling
AppliCATEEEEEEion :
Engine Flywheel, PTO, Shaft Coupling
Machine :
Mini Excavator
Part Number :
CF-A-016-O0 Rubber Coupling
Description

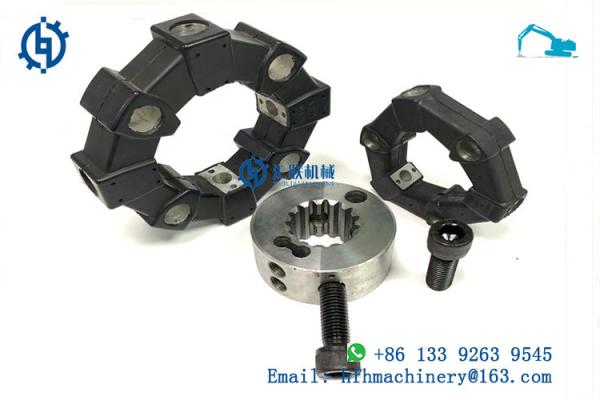

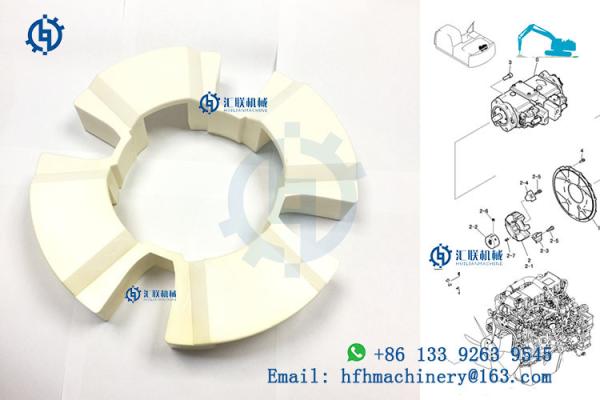

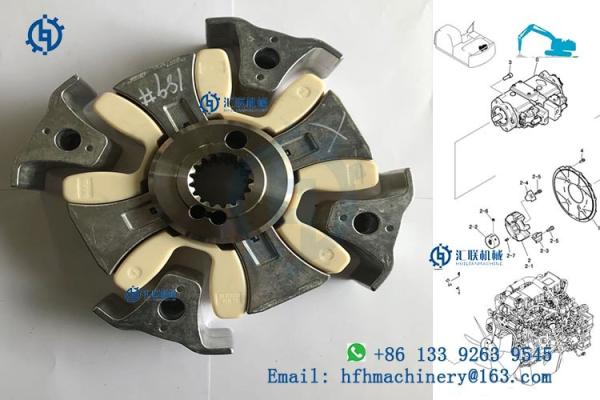

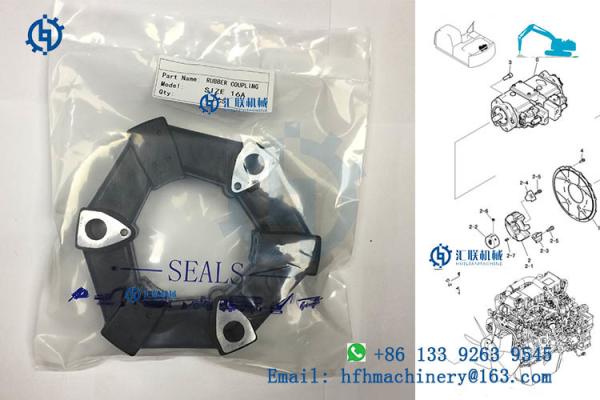

Flexible Rubber Coupling CF-A-016-O0-1306 PAT 778322 Excavator Engine Drive Pump Shaft Coupling

Hongkong H&F Eng. Machinery Co.,Limited (Huilian Machinery) Specialized in Hydraulic Excavator Parts: Hyd. Cylinder, Hydraulic Main Pump, Pilot Pump, Swing Motor, Travel Motor, Main Control Valve MCV, Diesel Engine Parts and related parts, Suitable for Komatsu, Hitachi, , EC, Hyundai, Kobelco, Sumitomo, Kato, Doosan, JCB, cx, Sany, Liugong, XCMG, Xugong, Zoomlion, etc.

Flexible Rubber Engine Drive Coupling CF-A-016-O0-1306 PAT 778322

COUPLING “CF-H” SERIES TECHNICAL DATA
SIZE of Rubber Coupling CF-H-30 CF-H-040 CF-H-050 CF-H-110 CF-H-140 CF-H-160
TECHNICAL DATA
DESCRIPTION SYMBOL UNIT 500 600 800 1200 1600 2000
Nominal Torque Tkn Nm
Maximum Torque Tkmax Nm 1400 1600 2000 2500 4000 4000
Maximum Rotational speed Nmax Min-1 4000 4000 4000 4000 3600 3600
COUPLING “CF-A” SERIES TECHNICAL DATA
SIZE of Rubber Coupling CF-A-004 CF-A-008 CF-A-016 CF-A-025 CF-A-030 CF-A-050 CF-A-140
TECHNICAL DATA
DESCRIPTION SYMBOL UNIT 50 100 200 315 500 700 1700
Nominal Torque Tkn Nm
Maximum Torque Tkmax Nm 125 280 560 875 1400 2100 8750
Maximum Rotational speed Nmax Min-1 7000 6500 6000 5000 4000 4000 3600
Komatsu Excavator Coupling Parts List
20D-01-18100 205-01-72110 20T-01-31110 415-12-21110 419-12-31110 20T-01-77200
418-12-41111 418-12-31110 416-12-31613 416-12-31612 416-12-31611 416-12-31640
20R-01-11210 20T-01-77220 22L-01-21700 20N-01-43200 20S-01-31300 20T-01-81100
20Y-01-11112 20Y-01-11111 20Y-01-11112 22U-01-21310 20D-01-18130 203-01-41120
20N-01-43700 20R-01-11210 20N-01-12200 20R-01-11210 20R-01-28200 20R-01-12210

Flexible Rubber Engine Drive Coupling CF-A-016-O0-1306 PAT 778322

E40B 4D32 E450 6D22-TC 322 3116
E70 4D31 E650 S6B-TA 325 3116
E70B 4D32 235B 3306 325B 3116
E110 4D31T 235C 3306 325C 3116
E110B S4K-T 245B 3406 330 3306
E120B S4K-T CATEEEEEEEEEEEE307 3406 330B 3306
E120 6D14 CATEEEEEEEEEEEE307C 3406 330C C9
E140 6D14 311B 4D32 330D C-9
E180 6D14T 312C S4K 349D C13
E200 S6K-T 315C S4K 350 3306
E200B S6K-T 318B S4K 350L 3306
E240 6D15-T 320 3066 345 C12
E240B 3116-T 324 C7 320D C6.4
E300 4SA1 320B 3166 E311 S4K
E300B 4SA1 320C S6KT
E200B S6K-T CATEEEEEEEEEEEE 318B S4K CATEEEEEEEEEEEE 350L 3306
E240 6D15-T CATEEEEEEEEEEEE 320 3066 CATEEEEEEEEEEEE 345 C12
E240B 3116-T CATEEEEEEEEEEEE 324 C7 CATEEEEEEEEEEEE 320D C6.4
E300 4SA1 CATEEEEEEEEEEEE 320B 3166 CATEEEEEEEEEEEE 311 S4K
E300B 4SA1 CATEEEEEEEEEEEE 320C S6KT

For CATEEEEEEEEEEEE : E70B E110B E120 E140 E120B E180 CATEEEEEEEEEEEE307 CATEEEEEEEEEEEE308 (ARM) CATEEEEEEEEEEEE311 CATEEEEEEEEEEEE311B CATEEEEEEEEEEEE312 CATEEEEEEEEEEEE312B E200 E200B E240 E240B CATEEEEEEEEEEEE315 CATEEEEEEEEEEEE318 CATEEEEEEEEEEEE320 CATEEEEEEEEEEEE320B CATEEEEEEEEEEEE 320C CATEEEEEEEEEEEE322B E300 E300B CATEEEEEEEEEEEE325 CATEEEEEEEEEEEE325B E330 E330B CATEEEEEEEEEEEE330C CATEEEEEEEEEEEE345 CATEEEEEEEEEEEE450, etc
