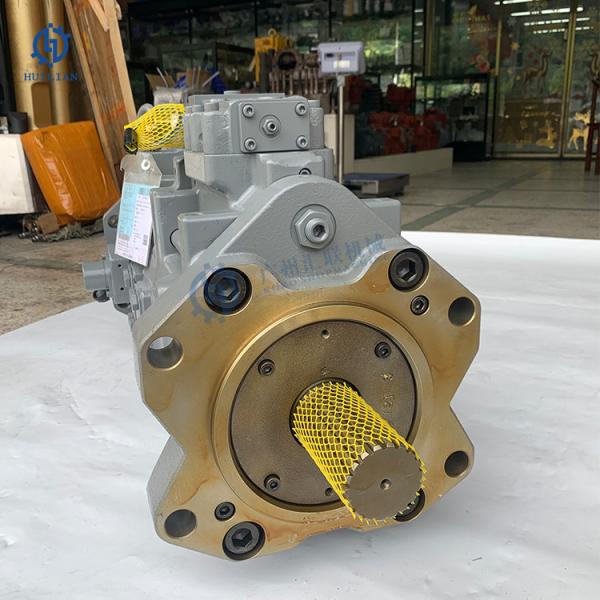

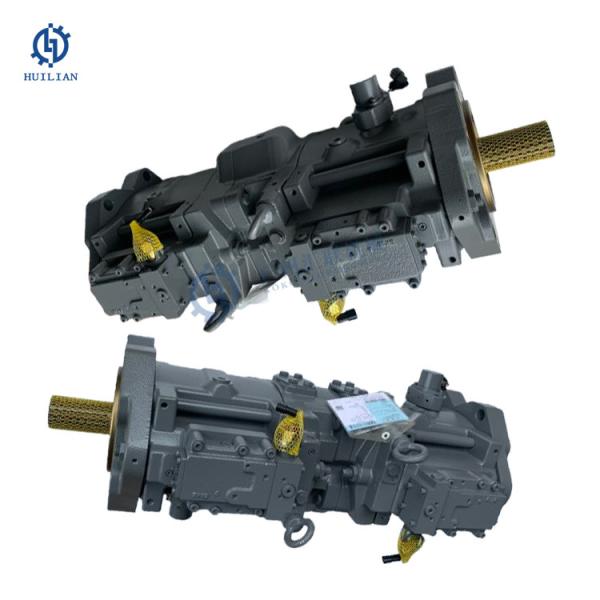

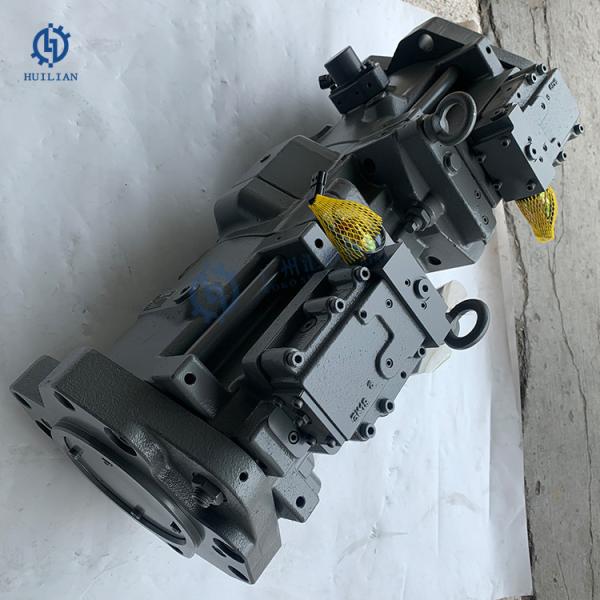

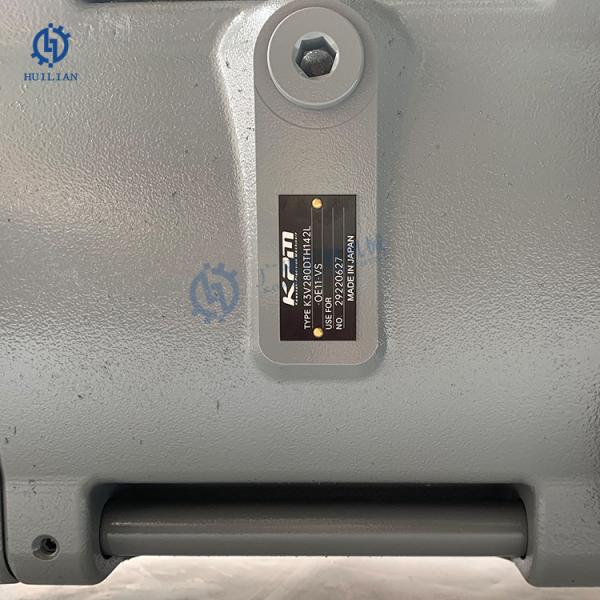

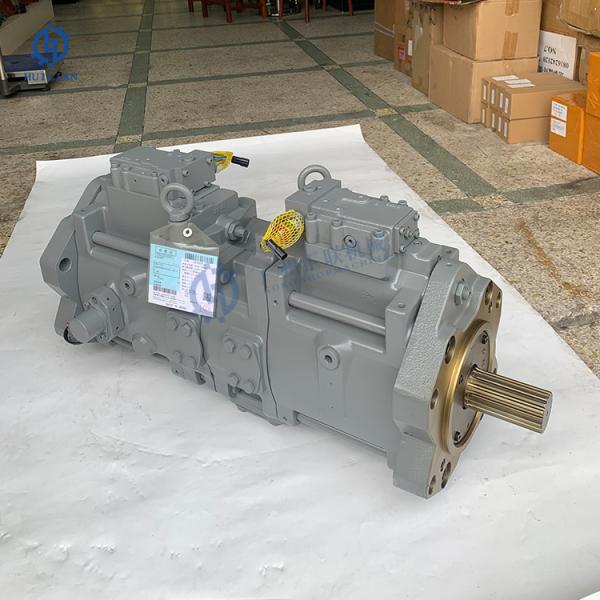

9139426 9168965 9169241 9184005 Hydraulic Pump for Hitachi CX700 SH700 CX750 EX750 EX750-5 EX800H-5 K3V280DTH Pumps
9139426 9168965 9169241 9184005 Hydraulic Pump for Hitachi CX700 SH700 CX750 EX750 EX750-5 EX800H-5 K3V280DTH Pumps
9139426 9168965 9169241 9184005 Hydraulic Pump for Hitachi CX700 SH700 CX750 EX750 EX750-5 EX800H-5 K3V280DTH Pumps
9139426 9168965 9169241 9184005 Hydraulic Pump for Hitachi CX700 SH700 CX750 EX750 EX750-5 EX800H-5 K3V280DTH Pumps
9139426 9168965 9169241 9184005 Hydraulic Pump for Hitachi CX700 SH700 CX750 EX750 EX750-5 EX800H-5 K3V280DTH Pumps
9139426 9168965 9169241 9184005 Hydraulic Pump for Hitachi CX700 SH700 CX750 EX750 EX750-5 EX800H-5 K3V280DTH Pumps
9139426 9168965 9169241 9184005 Hydraulic Pump for Hitachi CX700 SH700 CX750 EX750 EX750-5 EX800H-5 K3V280DTH Pumps
9139426 9168965 9169241 9184005 Hydraulic Pump for Hitachi CX700 SH700 CX750 EX750 EX750-5 EX800H-5 K3V280DTH Pumps
9139426 9168965 9169241 9184005 Hydraulic Pump for Hitachi CX700 SH700 CX750 EX750 EX750-5 EX800H-5 K3V280DTH Pumps
9139426 9168965 9169241 9184005 Hydraulic Pump for Hitachi CX700 SH700 CX750 EX750 EX750-5 EX800H-5 K3V280DTH Pumps
Specifications
Brand Name :
Huilian
Model Number :
Hitachi excavator
CertifiCATEion :
ISO9001
Place of Origin :
China
MOQ :
1Pieces
Price :
RMB/USD
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000 Pieces per Month
Delivery Time :
1-7 work days
Packaging Details :
PP bag, Carton, Wooden cx, or as Required
Product Name :
Excavator Main Pump
Weight :
326 kg
Delivery :
Within 1-3 Days
Warranty :
1 Year
Part Number :
9139426 9168965 9169241 9184005
Manufacture :
China
Condition :
New
Size :
113-50-67cm
Description

9139426 9168965 9169241 9184005 Hydraulic Pump Fits for Hitachi CX700 SH700 CX750 EX750 EX750-5 EX800H-5 K3V280DTH Pumps

Product Name Excavator Hydraulic Pump
Machine model EX750-5 EX800H-5
Part number 9139426 9168965 9169241 9184005
Pressure Standard, High Pressure

# Part No Part Name Qty.
9139426 PUMP; PISTON 1
1 4391503 . REGULATOR 2
11 4312157 . PISTON 2
11 718001 . PISTON 2
011A .. PISTON 9
011B .. SHOE 9
13 703001 . CYL. 1
013A .. BLOCK; CYL. 1
013B .. PLATE; VALVE 1
14 703002 . CYL. 1
014A .. BLOCK; CYL. 1
014B .. PLATE; VALVE 1
30 703003 . PLATE 2
30 719701 . PLATE 2
030A .. PLATE 1
030B .. BUSHING 1
030C .. LEVER 1
030D 703004 .. BOLT 1
030E 218839 .. PIN 1
030F 703005 .. PIN 1
111 703006 . SHAFT 1
113 703007 . SHAFT 1
114 703008 . COUPLING 1
123 703009 . BRG. 2
124 682303 . BRG.; NEEDLE 2
127 339809 . SPACER 4
130 703010 . BOOSTER 1
153 682305 . RETAINER 2
153 718002 . RETAINER 2
156 682306 . BUSHING 2
157 682307 . SPRING 18
158 682308 . SPACER 2
211 682309 . PLATE 2
251 703011 . SUPPORT 2
251 703011 . SUPPORT
261 682311 . COVER 1
263 703012 . COVER 1
271 703013 . CASING; PUMP 2
311 703014 . COVER; VALVE 1
312 703015 . COVER; VALVE 1
401 682316 . BOLT; SOCKET 4
402 703016 . BOLT; SOCKET 4
403 237902 . BOLT; SOCKET 2
406 M340820 . BOLT; SOCKET 8
414 150809 . BOLT; SOCKET 2
466 236014 . PLUG 3
468 175233 . PLUG 4
490 263019 . PLUG 31
491 451027 . SCREW 4
492 451028 . PLUG 5
493 682317 . RESTORICTOR 2
530 703017 . PIN 2
532 682318 . PISTON; SERVO 2
534 682319 . STOPPER 2
535 682320 . STOPPER 2
702 4292386 . O-RING 2
706 703018 . O-RING 1
710 682321 . O-RING 2
717 682322 . O-RING 4
718 703019 . O-RING 1
724 443801 . O-RING 19
725 4297379 . O-RING 3
728 443408 . O-RING 4
732 682324 . O-RING 2
774 682325 . SEAL; OIL 1
789 682326 . RING; BACK-UP 2
792 682327 . RING; BACK-UP 2
803 4366339 . UNIT (TILTING-PROBING) 2
808 451038 . NUT 4
824 960323 . RING; RETAINING 2
885 313404 . PIN 2
886 4144353 . PIN; SPRING 5
901 177612 . BOLT; EYE 2
953 339847 . SCREW 2
954 682328 . SCREW; SET 2
974 451203 . WASHER 2
974 451204 . WASHER 2
981 . NAME-PLATE 1
983 . PIN 2
995 9102385 . SENSOR; ANGLE 1
996 4255077 . SPRING; PLATE 1
997 4274371 . O-RING 1

9139426 9168965 9169241 9184005 Hydraulic Pump for Hitachi CX700 SH700 CX750 EX750 EX750-5 EX800H-5 K3V280DTH Pumps
