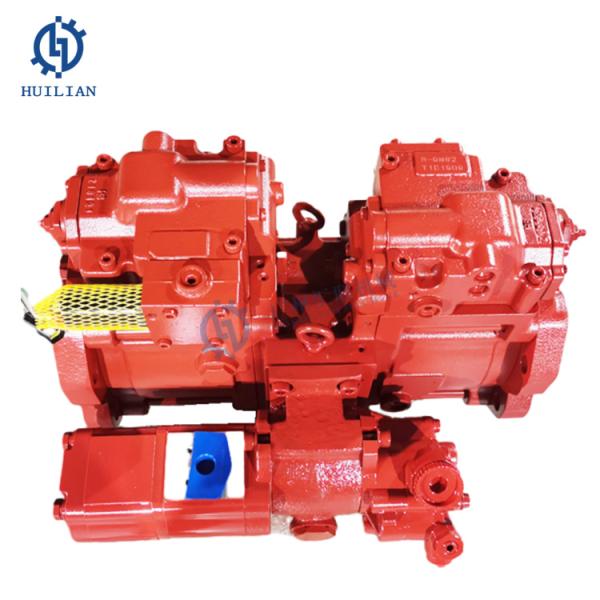

Excavator Spare Parts 31Q4-15020 Hydraulic Pump For Hyundai R150W-9 R140W-9
Product Description
This hydraulic pump for excavators is powered by hydraulic pressure, making it a reliable and efficient choice for your earthmoving equipment needs. With its powerful axial flow pump theory, this pump is able to efficiently move hydraulic fluid through your excavator system, ensuring that all of your hydraulic-powered components are working at their best.
Whether you need to replace a worn-out hydraulic pump or are looking to upgrade your excavator's hydraulic system, this pump is the perfect choice. Its pump number, 31Q4-15020, ensures that it is compatible with a wide range of excavator models, making it a versatile and reliable choice for your earthmoving needs.
And with our online support for after warranty service, you can trust that we will be there to help you with any questions or issues that you may have with your excavator hydraulic pump. We are committed to providing the highest level of customer service and support, ensuring that your excavator is always running at its best.
Product Attribute | Value |
Product Name | Excavator Hydraulic pump |
Hydraulic Pump Type | Axial Flow Pump |
Model | R150W-9 R140W-9 |
Pump Number | 31Q4-15020 |
Power Source | Hydraulic |
Application | Crawler Excavator, Excavator |
Model Number | E307 |
After Warranty Service | Online Support |
List of spare parts
# | Part No | Part Name | Qty. | Price request |
---|---|---|---|---|
* | 31Q4-10010 | MAIN PUMP *-1, *-2, *-3 | 1 | |
*-1 | @ | FUEL INJECTION PIPE & NOZZLE | 1 | |
111 | XJBN-00802 | SHAFT(F)-DRIVE | 1 | |
113 | XJBN-00803 | SHAFT(R)-DRIVE | 1 | |
116 | XJBN-00804 | GEAR-1ST | 1 | |
123 | XJBN-00429 | BEARING-ROLLER | 2 | |
124 | XJBN-00805 | BEARING-NEEDLE | 2 | |
127 | XJBN-00806 | SPACER-BEARING | 4 | |
N141 | XJBN-00807 | BLOCK-CYLINDER | 2 | |
N151 | XJBN-00425 | PISTON | 18 | |
N152 | XJBN-01278 | SHOE | 18 | |
153 | XJBN-00808 | PLATE-SET | 2 | |
156 | XJBN-00422 | BUSHING-SPHERICAL | 2 | |
157 | XJBN-00421 | SPRING-CYLINDER | 18 | |
211 | XJBN-00420 | PLATE-SHOE | 2 | |
N212 | XJBN-00419 | PLATE-SWASH | 2 | |
N214 | XJBN-00418 | BUSHING-TILTING | 2 | |
251 | XJBN-00417 | SUPPORT | 2 | |
261 | XJBN-00809 | COVER-FR | 1 | |
271 | XJBN-01046 | CASING-PUMP | 2 | |
312 | XJBN-00812 | BLOCK-VALVE | 1 | |
N313 | XJBN-01045 | PLATE(R)-VALVE | 1 | |
N314 | XJBN-01044 | PLATE(L)-VALVE | 1 | |
326 | XJBN-00937 | COVER | 1 | |
401 | XJBN-00411 | SCREW | 8 | |
406 | XJBN-00410 | SCREW | 8 | |
414 | XJBN-01371 | SCREW | 4 | |
466 | XJBN-00356 | PLUG | 2 | |
467 | XJBN-00409 | PLUG | 4 | |
468 | XJBN-00237 | PLUG | 2 | |
490 | XJBN-00032 | PLUG | 15 | |
N531 | XJBN-00815 | PIN-TILTING | 2 | |
532 | XJBN-00407 | PISTON-SERVO | 2 | |
534 | XJBN-00816 | STOPPER(L) | 2 | |
535 | XJBN-00405 | STOPPER(S) | 2 | |
N548 | XJBN-00360 | PIN-FEED BACK | 2 | |
702 | XJBN-00888 | O-RING | 2 | |
710 | XJBN-00387 | O-RING | 1 | |
711 | XJBN-00878 | O-RING | 1 | |
717 | XJBN-00401 | O-RING | 2 | |
719 | XJBN-00400 | O-RING | 2 | |
724 | XJBN-00044 | O-RING | 18 | |
725 | XJBN-00045 | O-RING | 2 | |
727 | XJBN-01357 | O-RING | 2 | |
728 | XJBN-00097 | O-RING | 4 | |
732 | XJBN-00820 | O-RING | 2 | |
774 | XJBN-01029 | SEAL-OIL | 1 | |
789 | XJBN-00398 | RING-BACK UP | 2 | |
792 | XJBN-00397 | RING-BACK UP | 2 | |
808 | XJBN-00396 | NUT-HEX | 4 | |
824 | XJBN-00395 | RING-SNAP | 2 | |
885 | XJBN-00394 | PIN-VALVE PLATE | 2 | |
886 | XJBN-00365 | PIN-SPRING | 4 | |
901 | XJBN-00393 | BOLT-EYE | 2 | |
953 | XJBN-00105 | SCREW-SET | 2 | |
954 | XJBN-00392 | SCREW-SET | 2 | |
981 | XJBN-00156 | NAME PLATE | 1 | |
983 | XJBN-00341 | PIN | 2 | |
079 | @ | FUEL INJECTION PIPE & NOZZLE SEE 4020 | 2 | |
*-2 | @ | FUEL INJECTION PIPE & NOZZLE SEE 4020 | 2 | |
*-3 | @ | FUEL INJECTION PIPE & NOZZLE SEE 4030 | 1 | |
011 | XJBN-01572 | PISTON SUB ASSY SEE ILLUST | 2 | |
013 | XJBN-01048 | CYLINDER SUB ASSY-RH SEE ILLUST | 1 | |
014 | XJBN-01047 | CYLINDER SUB ASSY-LH SEE ILLUST | 1 | |
030 | XJBN-00800 | SWASH PLATE SUB ASSY SEE ILLUST | 2 | |
530 | XJBN-00801 | TILTING PIN SUB ASSY SEE ILLUST | 2 | |
N | @ | FUEL INJECTION PIPE & NOZZLE | AR |
