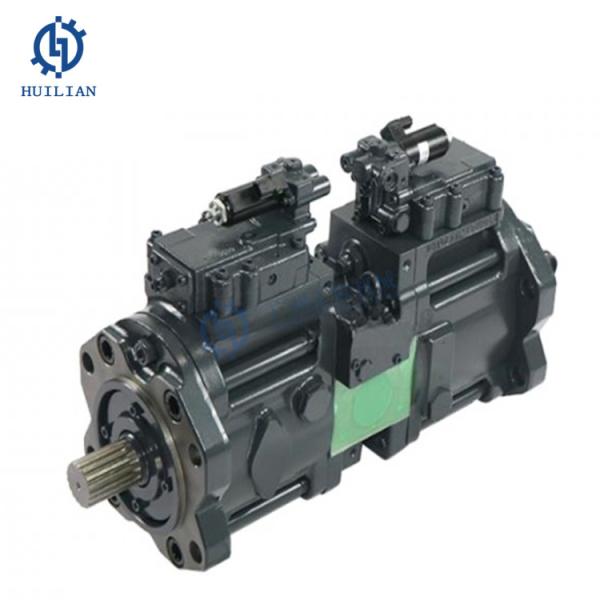

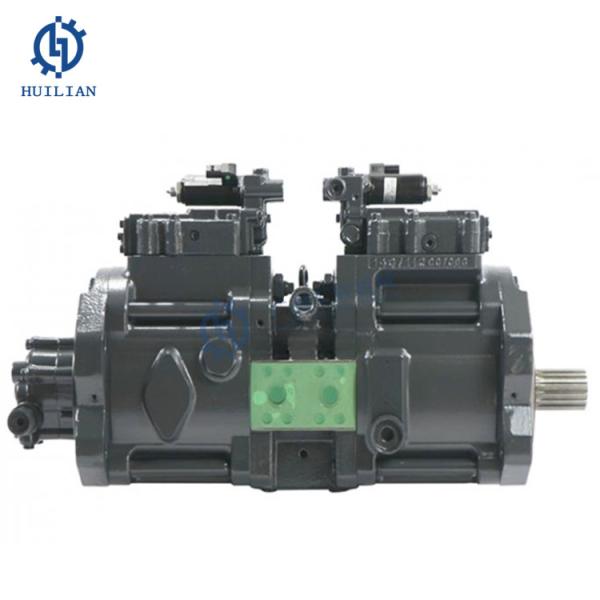

Excavator Spare Parts SA 1142-00531 SA 8230-14650 VOE 14343114 Excavator Main Pump For EC230B EC240 EC240B
Product Description
Product Name | Excavator Hydraulic Pump |
Brand | Huilian |
Machine model | EC230B EC240 EC240B |
Packing Size | 84*38*49 |
Part number | SA 1142-00531 SA 8230-14650 VOE 14343114 |
Pressure | Standard, High Pressure |
List of spare parts
# | Part No | Part Name | Qty. | Price request |
SA 1142-00531 | Pump more | 1 | ||
1 | SA 8230-14650 | Piston | 2 | |
2 | SA 14500003 | Piston | 9 | |
3 | SA 14500002 | Seat | 9 | |
4 | SA 8230-28580 | Cylinder | 1 | |
5 | SA 8230-28560 | Block | 1 | |
6 | SA 14500001 | Plate | 1 | |
7 | SA 8230-28590 | Cylinder | 1 | |
8 | SA 8230-28560 | Block | 1 | |
9 | SA 14500000 | Plate | 1 | |
10 | SA 8230-09800 | Plate | 2 | |
11 | SA 8230-30540 | Plate | 1 | |
12 | SA 14500012 | Bushing | 1 | |
13 | SA 7223-00450 | Check valve more | 2 | |
14 | SA 7223-00500 | Seat | 1 | |
15 | SA 7223-00520 | Guard | 1 | |
16 | SA 9676-73200 | Ball more | 1 | |
17 | SA 7223-00460 | Check valve | 2 | |
18 | SA 7223-00500 | Seat | 1 | |
19 | SA 7223-00540 | Guard | 1 | |
20 | SA 9676-73200 | Ball more | 1 | |
21 | SA 8230-09020 | Valve more | 1 | |
22 | SA 8230-09100 | Shaft | 1 | |
23 | SA 8230-09070 | Shaft | 1 | |
24 | SA 8230-09660 | Coupling | 1 | |
25 | SA 8230-26610 | Roller Bearing more | 2 | |
26 | SA 8230-26700 | Needle Bearing more | 2 | |
27 | SA 8230-14530 | Spacer | 4 | |
28 | SA 8230-09370 | Plate | 2 | |
29 | SA 8230-09680 | Bushing more | 2 | |
30 | SA 8230-09710 | Spring | 18 | |
31 | SA 8230-09670 | Spacer | 2 | |
32 | SA 8230-21920 | Plate | 2 | |
33 | SA 8230-08940 | Support | 2 | |
34 | SA 8230-09350 | Cover | 1 | |
35 | SA 8230-08930 | Body | 1 | |
36 | SA 8230-08980 | Valve assembly | 1 | |
37 | SA 8230-09690 | Bolt | 8 | |
38 | SA 9016-10804 | Bolt more | 4 | |
39 | SA 9415-11021 | Plug more | 3 | |
40 | SA 9415-11051 | Plug more | 4 | |
41 | SA 7242-11040 | Plug more | 21 | |
42 | SA 8230-09790 | Pin | 2 | |
43 | SA 8230-09320 | Pin | 1 | |
44 | SA 7223-00570 | Pin | 1 | |
45 | SA 8230-09250 | Piston | 2 | |
46 | SA 8230-09640 | Stop | 2 | |
47 | SA 8230-09650 | Stop | 2 | |
48 | SA 9511-22035 | O-ring more | 2 | |
49 | SA 9511-22095 | O-ring more | 1 | |
50 | SA 9511-22145 | O-ring more | 4 | |
51 | SA 9511-12008 | O-ring more | 16 | |
52 | SA 9511-12011 | O-ring more | 8 | |
53 | SA 9511-12024 | O-ring more | 4 | |
54 | SA 9511-12018 | O-ring more | 2 | |
55 | SA 8230-26900 | Seal more | 1 | |
56 | SA 9566-10180 | Ring | 2 | |
57 | SA 9566-20350 | Ring | 2 | |
58 | SA 8230-25620 | Nut | 2 | |
59 | SA 9111-12000 | Nut more | 2 | |
60 | SA 8230-25980 | Ring | 2 | |
61 | SA 8230-26430 | Plate | 2 | |
62 | SA 7223-00660 | Spring Pin | 4 | |
63 | SA 8230-25450 | Eye Bolt | 2 | |
64 | SA 8230-26780 | Bolt | 2 | |
65 | SA 8230-09700 | Bolt | 2 | |
100 | SA 8148-13080 | Sealing Kit more | 1 |
Model | Nominal displacement (ml/r) Fore pump hind pump | Pressure(MPa | Speed(r/min) | Volumetric efficiency (≥%) Fore pump hind pump | L1 | L2 | L | h | D | Weight (kg | |||||
Oval | Rectangk | Inlet Fore pump hind pump | Outlet Fore pump, hind pumg | ||||||||||||
Rated | Max | Min | Rated | Max | |||||||||||
CBOT-E563/F410-*F** | 63/10 | 16/20 | 20/25 | 800 | 2000 | 2500 | 92/91 | 77.5 | 140.5 | 278 | 15 | 23 | 35/23 | 25/20 | 11.2 |
CBOT-E563/F416-*F** | 63/16 | 143.5 | 285 | 11.4 | |||||||||||
CBOT-E563/F420-*F** | 63/20 | 600 | 145.5 | 289 | 35/26 | 11.6 | |||||||||
CBOT-E563/F425-*F** | 63/25 | 148.5 | 295 | 11.9 | |||||||||||
CBOT-E563/F432-*F** | 63/32 | 92/92 | 152.5 | 303 | 12.1 | ||||||||||
CBOT-F550/F410-*F** | 50/10 | 20/20 | 25/25 | 800 | 2500 | 3000 | 92/91 | 73 | 136 | 269 | 35/23 | 10.1 | |||
CBOT-F550/F416-*F** | 50/16 | 139 | 275 | 10.3 | |||||||||||
CBOT-F550/F420-*F** | 50/20 | 600 | 141 | 280 | 35/26 | 10.5 | |||||||||
CBOT-F550/F425-*F** | 50 25 | 144 | 286 | 10.9 | |||||||||||
CBOT-F550/F432-*F** | 50 32 | 92/92 | 148 | 294 | 11.1 | ||||||||||
CBOT-F540/F410-*F** | 40/10 | 800 | 92/91 | 69.5 | 132.5 | 262 | 35/23 | 20/20 | 9 | ||||||
CBOT-F540/F416-*F** | 40/16 | 135.5 | 268 | 9.3 | |||||||||||
CBOT-F540/F420-*F** | 40 20 | 600 | 137.5 | 274 | 35/26 | 9.4 | |||||||||
CBOT-F540/F425-*F** | 140.5 | 279 | 9.7 | ||||||||||||
CBOT-F540/F432-*F** | 40 | 92/92 | 144.5 | 287 | 10 | ||||||||||
CBOT-F532/F410-*F* | 32 | 800 | 92/91 | 67 | 130 | 257 | 30/23 | 8 | |||||||
CBOT-F532/F416-*F** | 32/16 | 133 | 263 | 8.2 | |||||||||||
CBOT-F532/F420-*F** | 32 20 | 600 | 135 | 268 | 30/26 | 8.4 | |||||||||
CBOT-F532/F425-*F** | 32/25 | 138 | 274 | 8.7 | |||||||||||
CBOT-F532/F432-*F** | 32/32 | 92/92 | 142 | 282 | 8.9 | ||||||||||
CBOT-F525/F410-*F* | 25/10 | 800 | 92/91 | 64.5 | 127.5 | 252 | 25/23 | 7.1 | |||||||
CBOT-F525/F416-*F** | 130.5 | 258 | 7.4 | ||||||||||||
CBOT-F525/F420-*F** | 600 | 132.5 | 263 | 25/26 | 7.7 | ||||||||||
CBOTF525/5425-*F** | 135.5 | 269 | 7.9 |
Why choose us
1.We provide the product 12 months guarantee from the ship date.
2. We have advanced technoledge and 100% testing before delivery.
3. Quick delivery and competitive price.
4. The larger quantity you order, the better price and faster delivery we can supply.
5. We have a professional team to offer professional service for you.
Company Profile
Koko Shop Machine Co.,Ltd is a professional supplier for almost all brands hyd breakers. seal kits, diaphragm, piston, chisel, upper and lower bush, rod pin, through bolts, side bolts, control valve, front head, cylinder, back head, accumulator,charger kit, gas bottle, shock absorber, ect.
we have hydraulic breaker parts for CATEE, EDT, JCB, NPK, MSB, Atlas-Copco, Soosan, Furuwawka, Daemo, Krupp, Fine, Toku, Toyo, Okada, Beilite, Everdigm, Montabert, Indeco, Kwanglim, General, Komac, Rammer, Konan, Teisaku, Hanwoo, Komatsu......and so on.
Also We have our own OEM production capacity to meet any of your requriements, and have excavator parts for Komatsu, Hitachi, Kobelco, Daewoo, Hyundai, EC, Sumitomo, Kato, Sany, Xcmg, Liugong...and so on.
FAQ
1. what kind of information I need to send you?
For different parts it need different information , for hydraulic pump need the nameplate and picture . For the final drive , need the number of the frame hole and sprocket hole ,and the inner diamter of the sprocket . But don't worry , if we need information , we will ask you to check .
2. Do you have stock?
For our main products , our have stock for almost of them , the factory supplier warehouse is near us , if the parts we don't have stock , we will tell you before you order it .
3. Can I get the picture of the part I need before payment ?
For almost parts , we can give you the picture of it , but some parts we don't have picture , but anyway will show you before the shipment .
4. When will the delivery be arranged after the payment
After we received the money , we will arrange the shipment within 1 days ;
5. How can I do if there is something wrong with the items ?
First of all , I have confidence in the quality of our products , if you really found something wrong ,please provide pictures for us and we will check. After it is confirmed, please return to us , we will offer the correct item .
6. What is your advantage products ?
Our advantage products are final drive / hydraulic pump / swing gearbox / travel gearbox / swing motor / hydraulic parts . If you need any parts for crawler excavator , you can ask us . We will try our best to find the parts what you need .
