ESD5111 Speed Control Unit 12V 24V Speed Governor Controller
ESD5111 Speed Control Unit 12V 24V Speed Governor Controller
ESD5111 Speed Control Unit 12V 24V Speed Governor Controller
ESD5111 Speed Control Unit 12V 24V Speed Governor Controller
ESD5111 Speed Control Unit 12V 24V Speed Governor Controller
ESD5111 Speed Control Unit 12V 24V Speed Governor Controller
Specifications
Brand Name :
Hi-TTS
Model Number :
ESD5111
Place of Origin :
China
MOQ :
1 pcs
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000/pcs per month
Delivery Time :
3-5 Work Days
Product Name :
SPEED CONTROL UNIT
Engine :
ESD5111
MOQ :
1 Set
Qaulity :
Top Quality
Payment Term :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Packing :
Neutral Package
Voltage: :
12V, 24V
Specifiion: :
18*17.5*5cm
Description

ESD5111 Speed Control Unit 12V 24V Speed Governor Controller

Quick Details:


Speed Range:1KHz-7.5KHz


Thermal Stability:Max ±1%


IDLE Adjustment:160 ± 20Hz ~ rated speed of 95%


External Speed Adjustment:± 200Hz (external 1KΩ) AUX.


Input Sensitivity:148Hz / 1V., ± 10Hz., Impedance 1MΩ START FUEL.


Adjust:160 ± 20Hz ~ 70% of rated speed RAMP.


Time Adjustment:1.5 ~ 20Sec. 10V.


Output Current:Maximum 20mA environment


Operating Temperature Range:-40ºC ~ 85ºC


Operating Humidity Range:Max 95%


Save Temperature:-55ºC ~ 90ºC


Shock:20-100HZ 500mm/Sec


Voltage:12V and 24V DC battery systems


Ground Polarity:negative electrode


Power Consumption:50mA


Actuator Continuous Current:minimum 2.5A; maximum 10A


Speed Sensor Signal:0.5 ~ 120 RMS

Weight: 0.75 kgs

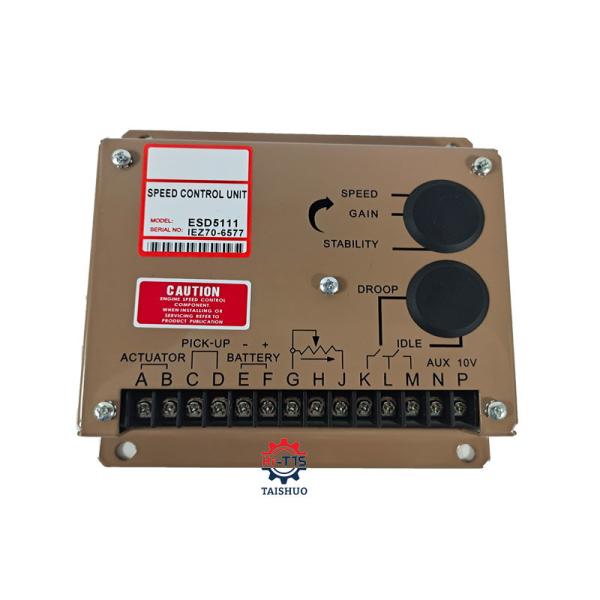

Photo:

ESD5111 Speed Control Unit 12V 24V Speed Governor Controller
