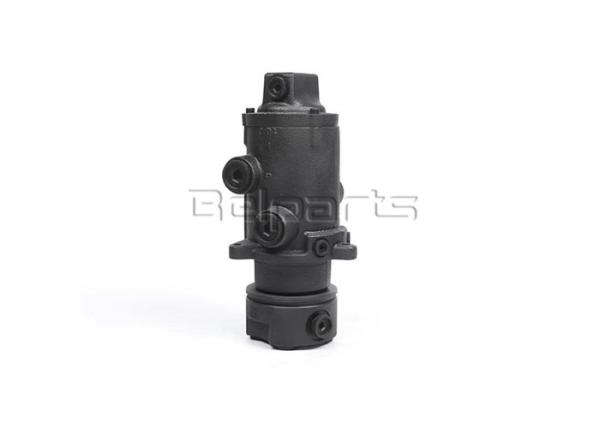

Belparts Excavator centre joint assy For Kobelco SK210LC-8 YN55V00053F1
Belparts Excavator centre joint assy For Kobelco SK210LC-8 YN55V00053F1
Belparts Excavator centre joint assy For Kobelco SK210LC-8 YN55V00053F1
Belparts Excavator centre joint assy For Kobelco SK210LC-8 YN55V00053F1
Belparts Excavator centre joint assy For Kobelco SK210LC-8 YN55V00053F1
Belparts Excavator centre joint assy For Kobelco SK210LC-8 YN55V00053F1
Belparts Excavator centre joint assy For Kobelco SK210LC-8 YN55V00053F1
Belparts Excavator centre joint assy For Kobelco SK210LC-8 YN55V00053F1
Specifications
Brand Name :
Belparts
Model Number :
SK210LC-8
Certifiion :
OEM
Place of Origin :
Guangdong, China
MOQ :
1 piece
Price :
Negotiable price
Payment Terms :
T/T, Paypal and Trade Assurance
Supply Ability :
1000pieces
Delivery Time :
1-5days
Packaging Details :
Wooden packing
Condition :
New
Warranty :
12month
Part name :
Excavator Controller
Part number :
YN55V00053F1
Availability :
In stock
Description

Belparts Excavator centre joint assy For Kobelco SK210LC-8 YN55V00053F1

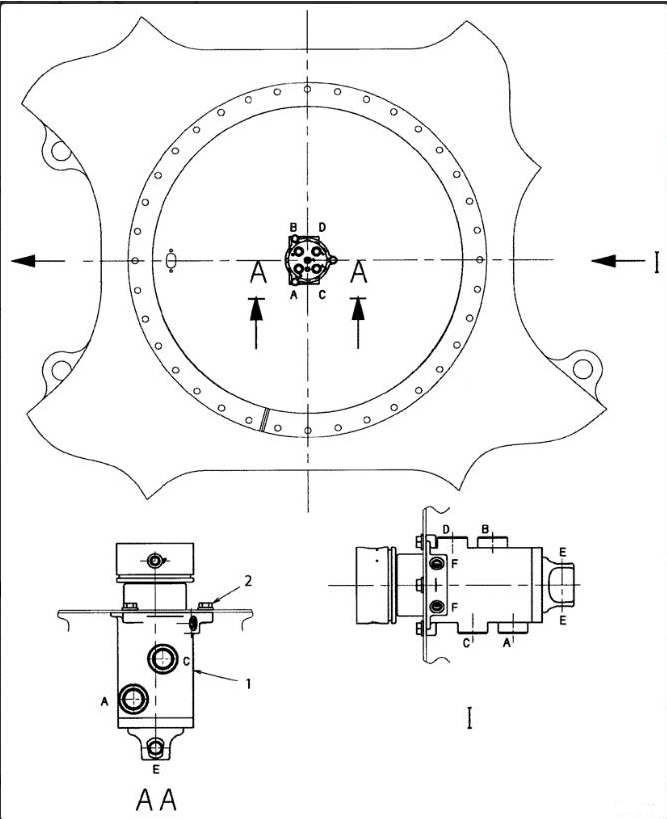

Parts scheme

Belparts Excavator centre joint assy For Kobelco SK210LC-8 YN55V00053F1

Belparts Excavator centre joint assy For Kobelco SK210LC-8 YN55V00053F1

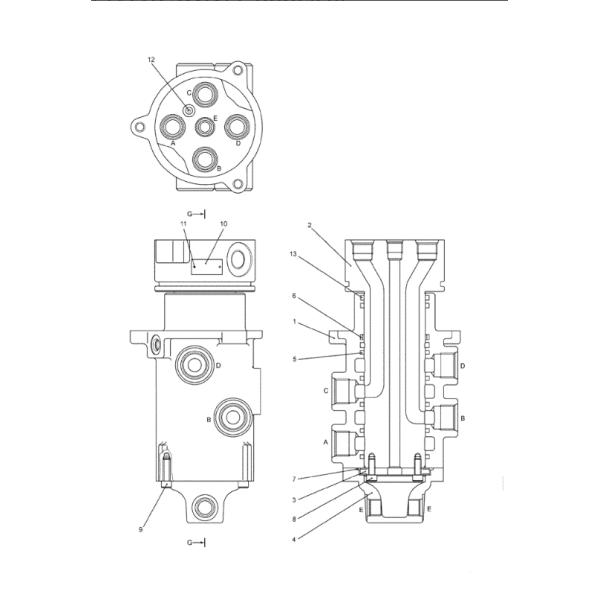

List of spare parts

Pos. Part No Qty Parts name Comments
. . YN55V00053F1 [1] CENTER JOINT KOB ASSY,SWIVEL See Fig. 02-001(00) and 02-005(00)
1. YN55V01063P1 [1] BODY
2. YN55V01084P1 [1] STEM
3. 2414T1991 [1] THRUST PLATE KOB Superseded by part number: YN55V01115P1
4. YN55V01062P1 [1] GUARD SM COVER
5. YN55V01057P1 [5] SEAL,80.5mm ID x 91mm OD x 4.9mm Thk KOB SEAL
6. YN55V01049P1 [1] SEAL,80.15mm ID x 91mm OD x 6mm Thk KOB
7. ZD11G09500 [1] O-RING,94.40mm ID x 100.60mm OD x 3.10mm KOB ID 94.40 ± 0.81 x OD 100mm
8. ZS23C08020 [2] SCREW,Hex Socket Head, M8 x 20mm KOB M08x1.25x20mm
9. ZS23C08030 [3] SCREW,Hex Socket Head, M8 x 30mm KOB M08x1.25x30mm Superseded by part number: ZS28C08030
10. YN22T00194P1 [1] TYPE PLATE KOB
11. 2420Z1036D3 [2] CLEVIS KOB 2.2x4.6mm
12. ZE82T02000 [1] PLUG KOB Pipe, 1.25" PT
13. 2445R152D1 [2] O-RING,5.7mm Thk x 79.6mm ID, 70 Duro KOB ID 79.6 ± 0.40 x OD 91mm

Product description

Appliion Hitachi Kobelco Excavator
Quality High Guarantee
Model SK210LC-8
Package Standard Packing at Normal
Warranty 1 Year
Payment term T/T,, PayPal, Trade Assurance
Delivery 2 days after the payment received
Shipment by sea, by air, by express or as required

FAQ

1 . If I only know the excavator model, but can not offer parts No., what should I do ?
If possible, you can send us pictures of old products, nameplate or the size for reference.

2 . What is the warranty of the parts after I purchased?
The warranty is 6/12 Months based on the item details.The genuine parts we don't have the warranty of it,but just can make sure it is 100% genuine.

3 . How can I pay the order?
You can finish the payment by T/T,Western Union,Paypal etc.

4 . When will get the items after I place order?
Once we received your payment , we will arrange the shipment within 24 hours ; if don't have stock , we will tell you before payment .

5 . How can I do if there is something wrong with the items?
First of all , I have confidence in the quality of our products ,if you really found something wrong ,please provide pictures for us and we will check. After it is confirmed, please return to us , we will offer the correct item.

6 . What is your main products ?
Our pain product is final drive , hydraulic pump , swing gearbox , travel gearbox , swing motor , hydraulic parts . If you need any parts for crawler excavator , you can ask us too . We will try our best to meet your requirement.
