Belparts Hydraulic Pump For Kobelco SK60-7 YC85 DH80 Excavator Main Pumps 2437U390F1
Belparts Hydraulic Pump For Kobelco SK60-7 YC85 DH80 Excavator Main Pumps 2437U390F1
Belparts Hydraulic Pump For Kobelco SK60-7 YC85 DH80 Excavator Main Pumps 2437U390F1
Belparts Hydraulic Pump For Kobelco SK60-7 YC85 DH80 Excavator Main Pumps 2437U390F1
Belparts Hydraulic Pump For Kobelco SK60-7 YC85 DH80 Excavator Main Pumps 2437U390F1
Belparts Hydraulic Pump For Kobelco SK60-7 YC85 DH80 Excavator Main Pumps 2437U390F1
Belparts Hydraulic Pump For Kobelco SK60-7 YC85 DH80 Excavator Main Pumps 2437U390F1
Belparts Hydraulic Pump For Kobelco SK60-7 YC85 DH80 Excavator Main Pumps 2437U390F1
Belparts Hydraulic Pump For Kobelco SK60-7 YC85 DH80 Excavator Main Pumps 2437U390F1
Belparts Hydraulic Pump For Kobelco SK60-7 YC85 DH80 Excavator Main Pumps 2437U390F1
Specifications
Brand Name :
Belparts
Model Number :
SK60-7 YC85 DH80
Certifiion :
OEM
Place of Origin :
Huangpu China
MOQ :
1 piece
Price :
Negotiable price
Payment Terms :
T/T, Paypal and Trade Assurance
Supply Ability :
500pieces
Delivery Time :
1-5days
Packaging Details :
Wooden packing
Condition :
New
Warranty :
12month
Part name :
Hydraulic Pump
Part number :
2437U390F1
Availability :
In stock
Description

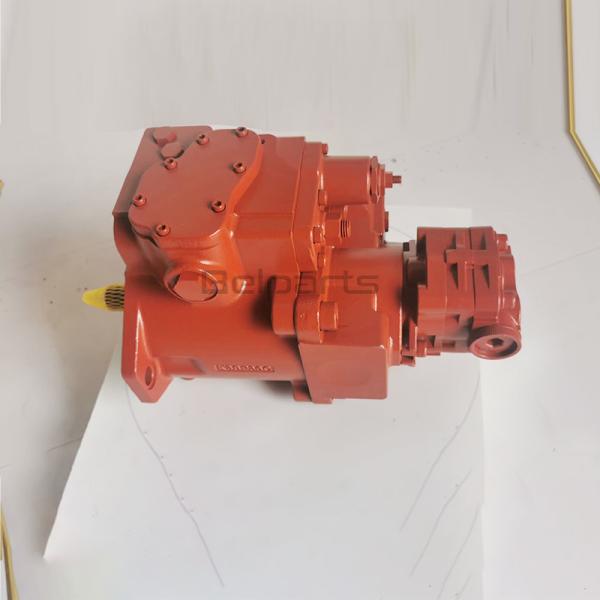

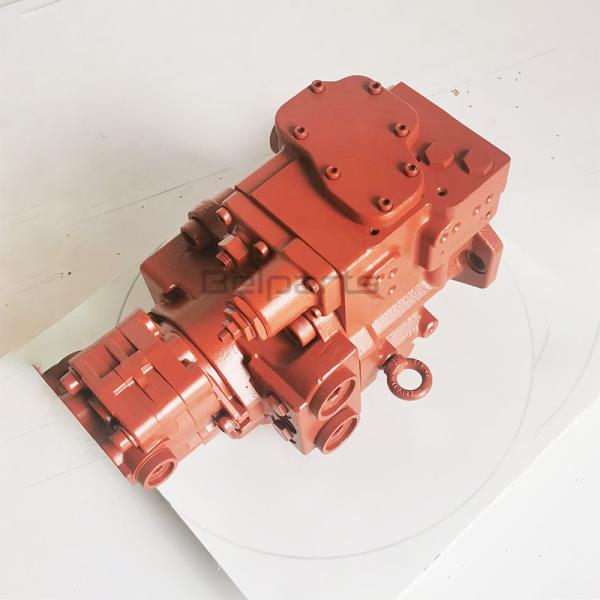

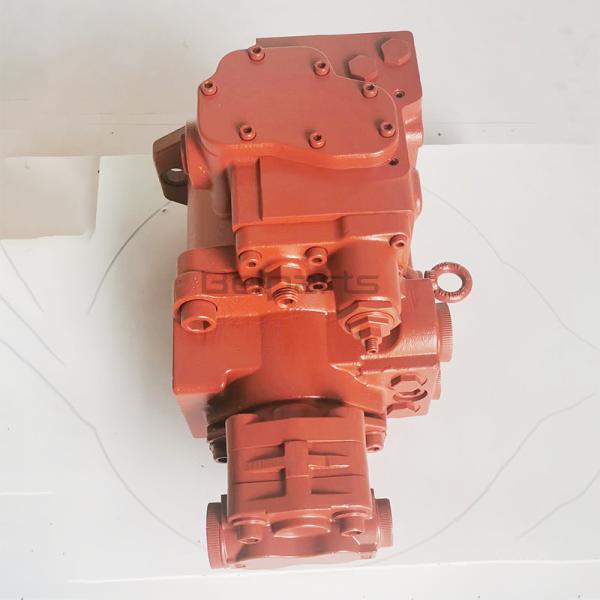

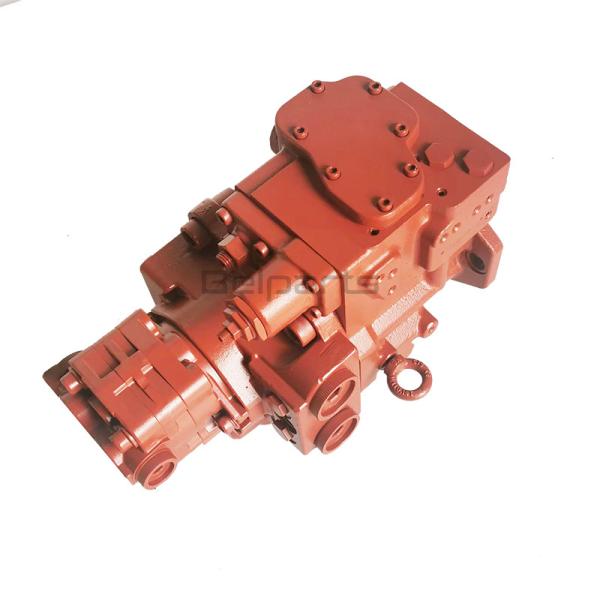

Belparts Hydraulic Pump for Kobelco SK60-7 YC85 DH80 Excavator main pumps 2437U390F1

Parts scheme

Belparts Hydraulic Pump For Kobelco SK60-7 YC85 DH80 Excavator Main Pumps 2437U390F1

Belparts Hydraulic Pump For Kobelco SK60-7 YC85 DH80 Excavator Main Pumps 2437U390F1

List of spare parts

Pos. Part No Qty Parts name Remark
. . 24100N6332F3 [1] PUMP KOB PUMP ASSY, CONNECT
1. 2437U390F1 [1] PUMP KOB APPLICABLE: LE14101-15754, SEE (C.P.M) (13) Superseded by part number: 2437U486F1
2. 2416N5695 [1] BRACKET
3. 24100U341F1 [1] COUPLING KOB Superseded by part number: LF30P01001F1
3-1. 24100U341S1 [1] COUPLING KOB Superseded by part number: LF30P01001S001
3-2. 2418U128S5 [6] SCREW KOB M16x2.0x50mm Long Superseded by part number: LQ30P01003S005
3-3. ZP26D05010 [9] PIN KOB Roll -- OD 05 x 10mm Long
4. 2418P23473 [1] HUB KOB
5. ZS23C16040 [4] CAPSCREW,Hex Socket Head, M16 x 40mm KOB SCREW M16x2.0x40mm
6. ZS13C10035 [5] SCREW KOB M10x1.50x35mm Superseded by part number: ZS18C10035
9. ZW22K16000 [4] LOCK WASHER KOB ID 16 x OD 24 x Th 3.5mm
10. ZW22X10000 [8] LOCK WASHER KOB ID 10 x OD 18.4 x Th 2.5mm Superseded by part number: ZW26X10000
12. ZS13C10045 [3] SCREW KOB M10x1.50x45mm Superseded by part number: ZS18C10045
13. 2437U486F1 [1] PUMP KOB ASSY, APPLICABLE: LE15755-, SEE (C.P.M)

Pos. Part No Qty Parts name Remark
. . 2437U390F1 [1] PUMP KOB Superseded by part number: 2437U486F1
1. 2480U328F1 [1] CONTROL KOB
2. 2416R481F1 [1] HANGER KOB HAN
3. 24100R232F1 [2] ROTARY DIVIDER KOB
4. 2414R430F1 [1] COVER ASSY
5. 2410R335F1 [1] KOB
5-1. NSS [1] NOT SOLD SEPARAT CON
5-2. ZR26X06200 [1] SNAP RING KOB
5-3. NSS [1] NOT SOLD SEPARAT CON OIL SEAL
5-4. 2410R335S4 [1] O-RING KOB
6. 2437U386F1 [1] PUMP HIT
7. NSS [1] NOT SOLD SEPARAT CON SHAFT
8. 2437U390S8 [1] CONTACT PLATE KOB PLATE, CONTROL
9. NSS [1] NOT SOLD SEPARAT CON BEARING
10. 2414R268S3 [2] PIN
11. 2437U390S11 [1] SHIM KOB SHIM
12. ZR16X02800 [1] SNAP RING KOB
13. 2437U390S13 [1] PLUG
14. ZD12P01100 [1] O-RING KOB ID 10.8mm x OD 13.2mm
15. NSS [1] NOT SOLD SEPARAT CON NAME PLATE
15-1. NSS [2] NOT SOLD SEPARAT CON SCREW

Product description

Appliion Hitachi Kobelco Yucai Doosan Excavator
Quality High Guarantee
Model SK60-7 YC85 DH80
Package Standard Packing at Normal
Warranty 1 Year
Payment term T/T,, PayPal, Trade Assurance
Delivery 2 days after the payment received
Shipment by sea, by air, by express or as required

FAQ

1 . If I only know the excavator model, but can not offer parts No., what should I do ?
If possible, you can send us pictures of old products, nameplate or the size for reference.

2 . What is the warranty of the parts after I purchased?
The warranty is 6/12 Months based on the item details.The genuine parts we don't have the warranty of it,but just can make sure it is 100% genuine.

3 . How can I pay the order?
You can finish the payment by T/T,Western Union,Paypal etc.

4 . When will get the items after I place order?
Once we received your payment , we will arrange the shipment within 24 hours ; if don't have stock , we will tell you before payment .

5 . How can I do if there is something wrong with the items?
First of all , I have confidence in the quality of our products ,if you really found something wrong ,please provide pictures for us and we will check. After it is confirmed, please return to us , we will offer the correct item.

6 . What is your main products ?
Our pain product is final drive , hydraulic pump , swing gearbox , travel gearbox , swing motor , hydraulic parts . If you need any parts for crawler excavator , you can ask us too . We will try our best to meet your requirement.
