Excavator 31NA-10150 Swing Gearbox Reduction R360LC-7 Swing Gearbox Assy
Excavator 31NA-10150 Swing Gearbox Reduction R360LC-7 Swing Gearbox Assy
Excavator 31NA-10150 Swing Gearbox Reduction R360LC-7 Swing Gearbox Assy
Excavator 31NA-10150 Swing Gearbox Reduction R360LC-7 Swing Gearbox Assy
Excavator 31NA-10150 Swing Gearbox Reduction R360LC-7 Swing Gearbox Assy
Excavator 31NA-10150 Swing Gearbox Reduction R360LC-7 Swing Gearbox Assy
Excavator 31NA-10150 Swing Gearbox Reduction R360LC-7 Swing Gearbox Assy
Excavator 31NA-10150 Swing Gearbox Reduction R360LC-7 Swing Gearbox Assy
Excavator 31NA-10150 Swing Gearbox Reduction R360LC-7 Swing Gearbox Assy
Excavator 31NA-10150 Swing Gearbox Reduction R360LC-7 Swing Gearbox Assy
Excavator 31NA-10150 Swing Gearbox Reduction R360LC-7 Swing Gearbox Assy
Excavator 31NA-10150 Swing Gearbox Reduction R360LC-7 Swing Gearbox Assy
Excavator 31NA-10150 Swing Gearbox Reduction R360LC-7 Swing Gearbox Assy
Excavator 31NA-10150 Swing Gearbox Reduction R360LC-7 Swing Gearbox Assy
Specifications
Brand Name :
Belparts
Model Number :
R360LC-7
Certifiion :
OEM
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiated price
Payment Terms :
T/T, Western Union,Paypal
Supply Ability :
500 pieces per month
Delivery Time :
2-5days
Packaging Details :
Wooden
Machine model :
R360LC-7
Product name :
Swing Reduction Gearbox
Weight :
344KG
Part number :
31NA-10150
packing size :
60X60x64
Brand :
Hyundai
Description

Excavator 31NA-10150 swing gearbox reduction R360LC-7 swing gearbox assy

Product name

Swing Gearbox

Weight:

344KG

Name

 Swing gearbox

Model:

R360LC-7

Part number:

31NA-10150

Packing size:

60X60x64

Brand:

Hyundai

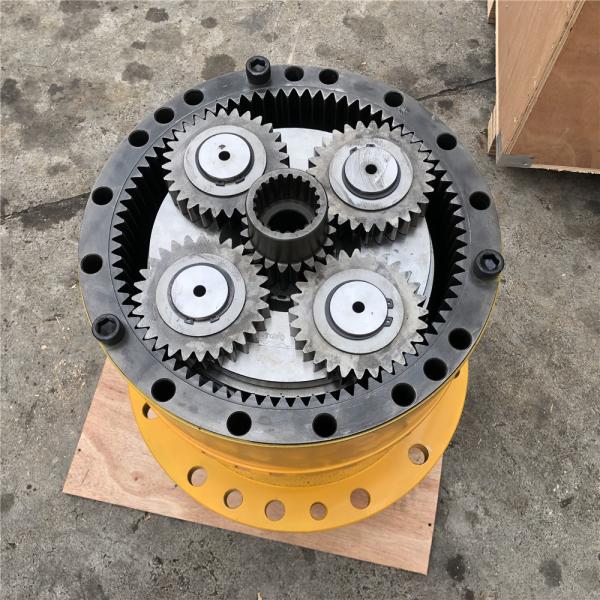

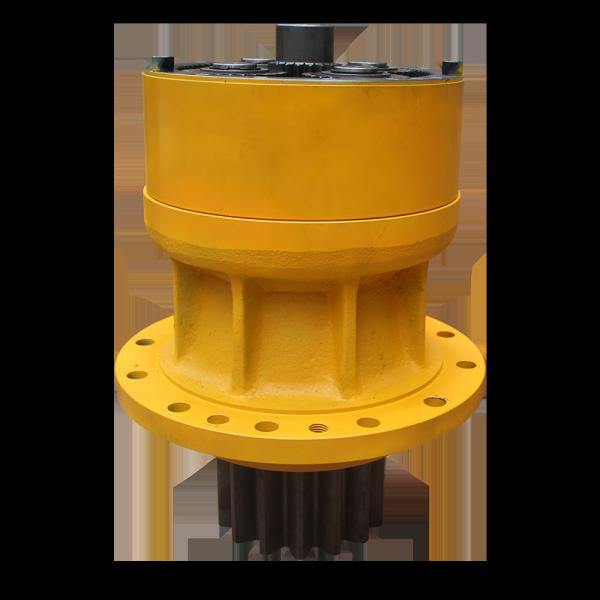

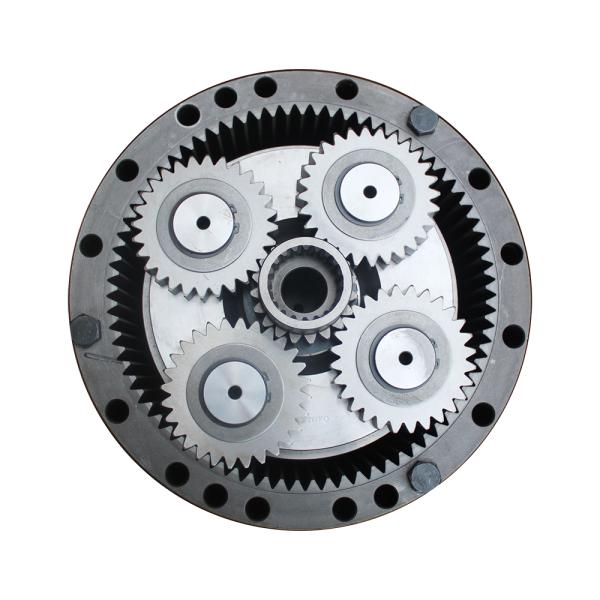

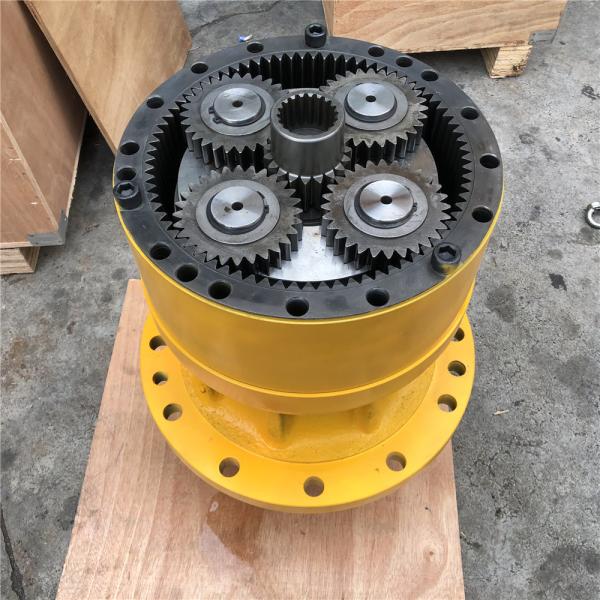

The Pictures

Excavator 31NA-10150 Swing Gearbox Reduction R360LC-7 Swing Gearbox Assy

Excavator 31NA-10150 Swing Gearbox Reduction R360LC-7 Swing Gearbox Assy

Excavator 31NA-10150 Swing Gearbox Reduction R360LC-7 Swing Gearbox Assy

Excavator 31NA-10150 Swing Gearbox Reduction R360LC-7 Swing Gearbox Assy

Excavator 31NA-10150 Swing Gearbox Reduction R360LC-7 Swing Gearbox Assy

Excavator 31NA-10150 Swing Gearbox Reduction R360LC-7 Swing Gearbox Assy

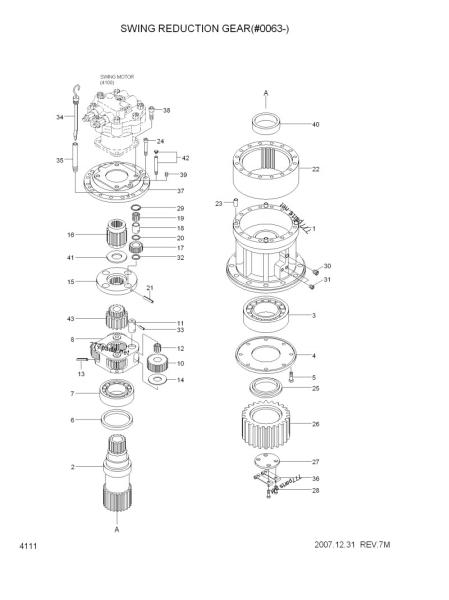

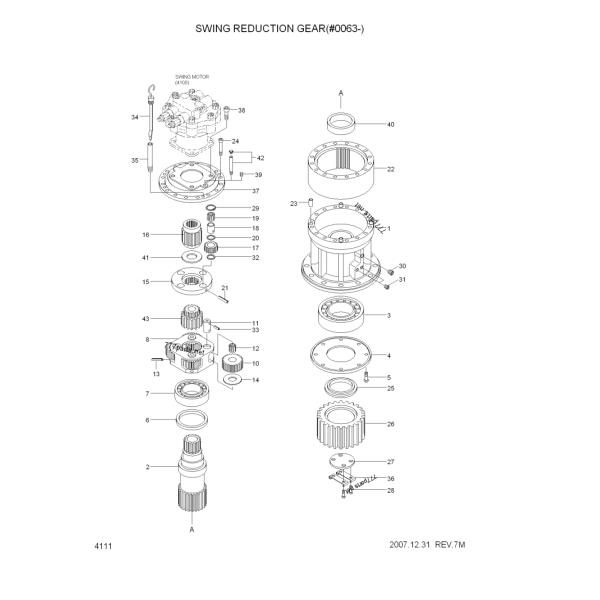

# Part No Part Name Qty. Price request
*-2 31NA-10150 SWING REDUCTION GEAR 1
1 XKAQ-00144 CASING 1
2 XKAQ-00145 SHAFT-DRIVE 1
2 XKAQ-00300 SHAFT-DRIVE 1
3 XKAQ-00146 BEARING-ROLLER 1
4 XKAQ-00147 PLATE-COVER 1
5 XKAQ-00148 BOLT-HEX 8
6 XKAQ-00149 SEAL-OIL 1
7 XKAQ-00027 BEARING-ROLLER 1
* XKAQ-00263 CARRIER ASSY 2 1
* XKAQ-00264 CARRIER ASSY-NO 2 1
8 XKAQ-00150 CARRIER 2 1
8 XKAQ-00251 CARRIER 2 1
10 XKAQ-00152 GEAR-PLANET 2 4
10 XKAQ-00253 GEAR-PLANET 2 4
11 XKAQ-00153 PIN ASSY 2 4
11 XKAQ-00254 PIN ASSY 2 4
N12 @ FUEL INJECTION PIPE & NOZZLE 4
N12 @ FUEL INJECTION PIPE & NOZZLE 4
N33 @ FUEL INJECTION PIPE & NOZZLE 4
13 XKAQ-00050 PIN-SPRING 4
14 XKAQ-00156 WASHER 4
* XKAQ-00261 CARRIER ASSY-NO 1 1
* XKAQ-00262 CARRIER ASSY-NO 1 1
15 XKAQ-00157 CARRIER 1 1
15 XKAQ-00325 CARRIER 1 1
16 XKAQ-00158 GEAR-SUN 1 1
16 XKAQ-00257 GEAR-SUN 1 1
17 XKAQ-00774 GEAR-PLANET 1 4
18 XKAQ-00019 PIN 1 4
19 XKAQ-00030 CAGE-NEEDLE 4
20 XKAQ-00040 PLATE-SIDE 2 4
21 XKAQ-00048 PIN-SPRING 4
22 XKAQ-00160 GEAR-RING 1
22 XKAQ-00258 GEAR-RING 1
23 XKAQ-00072 PIN-KNOCK 4
24 XKAQ-00161 BOLT-SOCKET 16
24 XKAQ-00259 BOLT-SOCKET 16
25 XKAQ-00162 SPACER 1
26 XKAQ-00163 GEAR-PINION 1
27 XKAQ-00164 PLATE-LOCK 1
27 XKAQ-00299 PLATE-LOCK 1
28 XKAQ-00042 BOLT-HEX 2
28 XKAQ-00042 BOLT-HEX 4
29 XKAQ-00041 RING-STOP 1
30 XKAQ-00273 PLUG 1
31 XKAQ-00274 PLUG 2
32 XKAQ-00057 PLATE-SIDE 1 4
34 XKAQ-00166 BAR-GAUGE 1
35 XKAQ-00167 PIPE-GAUGE 1
36 XKAQ-00168 WASHER-LOCK 1
36 XKAQ-00292 WASHER-LOCK 2
37 XKAQ-00169 COVER 1
38 XKAQ-00170 BOLT-HEX SOCKET 4
39 XKAQ-00155 PLUG-SOCKET 1
40 XKAQ-00171 RING-SPACER 1
41 XKAQ-00076 PLATE-THRUST 1
41 XKAQ-00260 RING-THRUST 1
42 XKAQ-00143 AIR BREATHER ASSY 1
43 XKAQ-00151 GEAR-SUN 2 1
43 XKAQ-00252 GEAR-SUN 2 1
N @ FUEL INJECTION PIPE & NOZZLE 1
