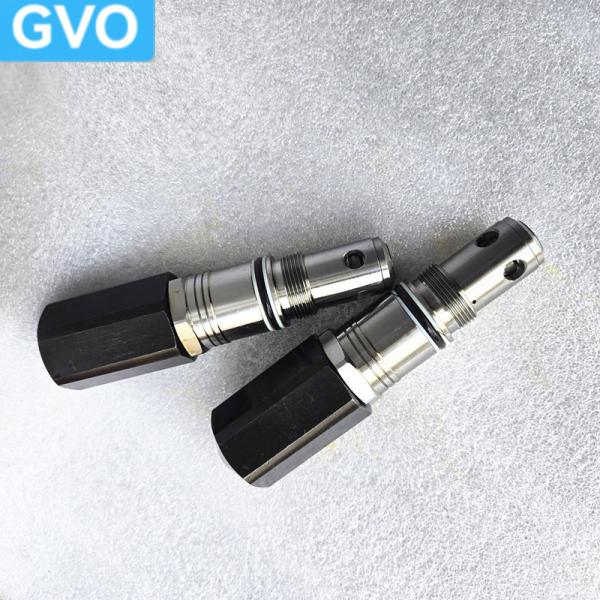

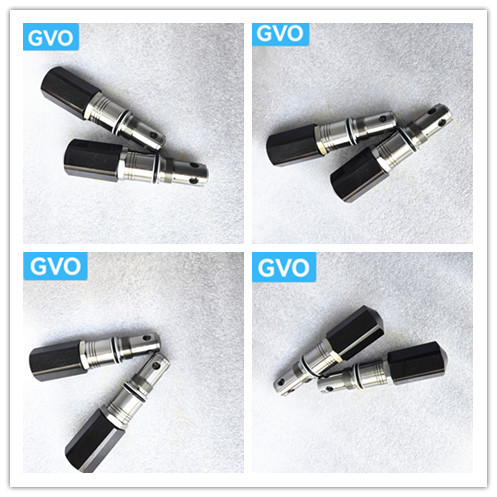

LC22V00006F1 Excavator Kobelco 200 210 230 250 260-5 6 8 Walking Motor Main Gun Brake Overflow Valve
LC22V00006F1 Excavator Kobelco 200 210 230 250 260-5 6 8 Walking Motor Main Gun Brake Overflow Valve
LC22V00006F1 Excavator Kobelco 200 210 230 250 260-5 6 8 Walking Motor Main Gun Brake Overflow Valve
LC22V00006F1 Excavator Kobelco 200 210 230 250 260-5 6 8 Walking Motor Main Gun Brake Overflow Valve
LC22V00006F1 Excavator Kobelco 200 210 230 250 260-5 6 8 Walking Motor Main Gun Brake Overflow Valve
LC22V00006F1 Excavator Kobelco 200 210 230 250 260-5 6 8 Walking Motor Main Gun Brake Overflow Valve
Specifications
Brand Name :
GVO
Model Number :
SK200-8 SK200-6 SK210 SK230 SK250 SK260-5
Place of Origin :
CHINA
MOQ :
1PCS
Price :
Negotiable price
Payment Terms :
T/T，Western Union，Ali payment，L/C,Paypal
Supply Ability :
280PCS
Delivery Time :
Within 2-7 Days After Receiving Payment
Packaging Details :
Export standard packaging
Part Number :
LC22V00006F1
Model Name :
SK200-8 SK200-6 SK210 SK230 SK250 SK260-5
After-sales Service :
Online Suppor
Condition :
100%new
Size :
Standard Size/custom Size
Compatibility :
Fits Most Excavator Models
Appliion :
EXCAVATOR
Product Name :
Excavator relief valve
APPLICABLE INDUSTRIES :
Building Material Shops, Machinery Repair Shops, Retail, Construction Works
Highlight :
Excavator Kobelco 200 210 230 250 260-5 6 8 walking motor main gun brake overflow valve
Description
Appliion

Excavator
Brand Name

GVO
Material

Alloy
After-sales Service Provided

Online Support
Shipment

Huangpu Port, Guangzhou, China
Size

tandard Size/custom Size
CONDITION:

100%New
High Ligh

Excavator Kobelco SK200 230 350-6/8 walking motor main gun walking main overflow valve safety valve excavator accessories
price

Details consultation
Model Name

Excavator relief safety valve
Delivery logistics

Shipping express aviation
Appliion:

Machinery Repair Shops/Construction Works/Energy & Mining

LC22V00006F1 Excavator Kobelco 200 210 230 250 260-5 6 8 Walking Motor Main Gun Brake Overflow Valve

The main relief valve of Kobelco 200-8 travel motor is mainly used to limit the maximum pressure of the system, protect the safety of the hydraulic system and prevent the system from overloading.

Its working principle is: when the hydraulic system pressure rises to the set pressure of the main relief valve, the valve core of the main relief valve overcomes the spring force to open, so that part of the hydraulic oil flows back to the tank through the overflow port, thereby limiting the system pressure from continuing to rise. When the system pressure is lower than the set value, the valve core is closed under the action of the spring force, and the hydraulic oil is normally supplied to the actuators such as the travel motor to ensure the normal operation of the system.

For example, when the excavator encounters greater resistance during travel, causing the system pressure to tend to exceed the rated value, the main relief valve opens the overflow to prevent the hydraulic components from being damaged by excessive pressure, thus protecting the system.

FAQ

1.What is the warranty of the parts after I purchased?
The warranty is 6 Months based on the item details.

2.What do you mainly produce?

A;Our main business hydraulic Spare Parts,safety valve,Gear pump,hydraulic pump,control valve,Trave Motor Assy,swing motor,Seal kit, Electric parts,solenoid valve, engine assembly.etc.

3. Brand Advantages
A;Reasonable Price Good Quality On Time Delivery

LC22V00006F1 Excavator Kobelco 200 210 230 250 260-5 6 8 Walking Motor Main Gun Brake Overflow Valve

LC22V00006F1 Excavator Kobelco 200 210 230 250 260-5 6 8 Walking Motor Main Gun Brake Overflow Valve

Welcome to contact us for Inquiry & orde

If you are not sure about the model and part number - please contact us via WhatsApp
