Introduction of Road Work Equipment Wheel Hook Machine Wheeled Wood Grabber Digger Excavator
The excavation device is the core part of an excavator, mainly composed of a boom, a bucket, and a bucket. The boom is a component that connects the upper structure and the bucket, usually consisting of multiple telescopic arms that can be adjusted according to the depth of excavation and the scope of operation. The bucket rod is a component that connects the boom and bucket, usually composed of multiple telescopic rods, which can be adjusted according to different excavation heights and operating ranges. Bucket is the working device of an excavator, usually composed of shovel teeth and bucket body, which can be used for excavating, loading, and unloading various materials.
Ultra large excavators have powerful excavation capabilities and efficient operational performance. Its excavation force can reach tens to hundreds of tons, making it easy to excavate various hard soil, rocks, and ores. At the same time, its operation speed is fast, and it can excavate tens to hundreds of cubic meters of soil per minute. In addition, ultra large excavators also have a wide range of operations, which can be applied in various fields such as earthwork, mining, construction, and road restoration.
Ultra large excavators play an important role in earthwork and mining. It can quickly and efficiently complete large-scale earthworks and mining tasks, improve work efficiency, and reduce labor costs. At the same time, it can also reduce environmental damage, reduce construction risks, and improve safety.
Parameters of Road Work Equipment Wheel Hook Machine Wheeled Wood Grabber Digger Excavator
Basic parameters of the whole machine | Total weight | 7300KG |
shipping length | 6346(mm) | |
Total height during transportation | 2800(mm) | |
Transport width | 2200(mm) | |
Tire center distance | 2400(mm) | |
Counterweight ground clearance | 1035(mm) | |
umber of tires | 8-825 | |
Boom length | 3560(mm) | |
Stick length | 1900(mm) | |
Working Range | Max.Digging Height | 6550(mm) |
Max.Dumping Height | 5100(mm) | |
Max.Digging Depth | 3380(mm) | |
Max.Digging radius | 6590(mm) | |
Maximum lifting height of earth shovel | 300(mm) | |
Bulldozer maximum digging depth | 100(mm) | |
Dynamical system | Model | Yuchai |
Power | 55KW | |
Cooling method | Water cooled turbocharging | |
Hydraulic System | Operating Pressure | 22mpa |
Main pump | Variable plunger | |
hydraulic valve | Korea | |
Shape | Load Sensing System | |
Performance Parameter | Bucket Capacity(SAE) | 0.36m³ |
Climbing ability | 30° | |
Maximum digging force | 8200N | |
Travel speed | 35KM/h | |
Unit swing speed | 9-11r/min | |
Hydraulic oil capacity | 90L | |
Hydraulic tank capacity | 120L | |
Parking brake | Air break | |
Service brake | Kill | |
Stabilizers | Legs / optional |

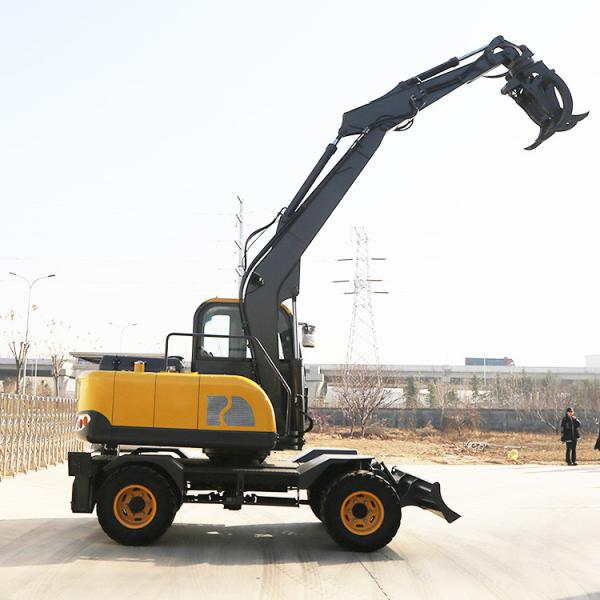

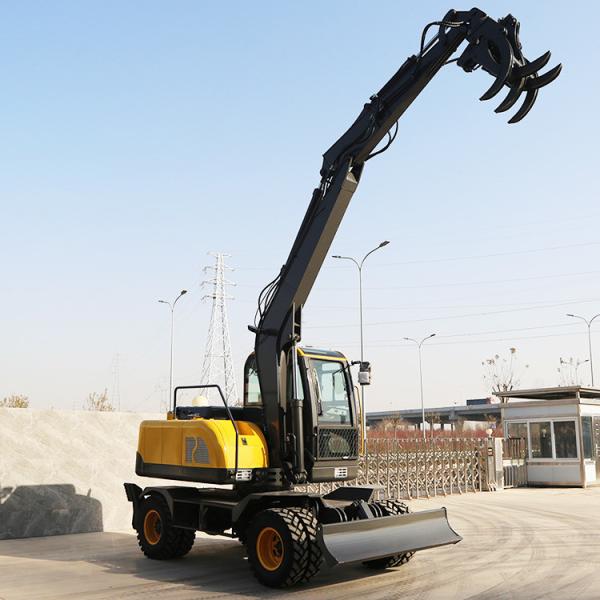

Photos of Road Work Equipment Wheel Hook Machine Wheeled Wood Grabber Digger Excavator
Why Choose China Coal Group?
Unparalleled Expertise: With 20 years of industry experience, we have established ourselves as industry leaders in manufacturing wheeled excavators. Our dedicated team of engineers and technicians continuously push boundaries to develop cutting-edge solutions that cater to the evolving needs of the construction sector.
Customer-Centric Approach: At China Coal Group, we prioritize customer satisfaction above all else. We work closely with our clients, understanding their specific requirements, and customizing our wheeled excavators to ensure optimal performance and maximum efficiency.
Comprehensive Support: Our commitment extends beyond the sale of our wheeled excavators. We provide comprehensive after-sales support, including training programs, maintenance services, and readily available spare parts, ensuring our customers experience seamless operations and peace of mind.
Global Reach: We serve a wide network of clients across the globe, cementing our reputation as a trusted manufacturer of wheeled excavators. With our extensive distribution channels and strategic partnerships, we ensure timely delivery and exceptional customer service regardless of your location.
