ZHONGMEI Ce Certificate Mini Dumper Construction Site 4.5km/h Auto Loader Dumper
ZHONGMEI Ce Certificate Mini Dumper Construction Site 4.5km/h Auto Loader Dumper
ZHONGMEI Ce Certificate Mini Dumper Construction Site 4.5km/h Auto Loader Dumper
ZHONGMEI Ce Certificate Mini Dumper Construction Site 4.5km/h Auto Loader Dumper
ZHONGMEI Ce Certificate Mini Dumper Construction Site 4.5km/h Auto Loader Dumper
ZHONGMEI Ce Certificate Mini Dumper Construction Site 4.5km/h Auto Loader Dumper
ZHONGMEI Ce Certificate Mini Dumper Construction Site 4.5km/h Auto Loader Dumper
ZHONGMEI Ce Certificate Mini Dumper Construction Site 4.5km/h Auto Loader Dumper
ZHONGMEI Ce Certificate Mini Dumper Construction Site 4.5km/h Auto Loader Dumper
ZHONGMEI Ce Certificate Mini Dumper Construction Site 4.5km/h Auto Loader Dumper
ZHONGMEI Ce Certificate Mini Dumper Construction Site 4.5km/h Auto Loader Dumper
ZHONGMEI Ce Certificate Mini Dumper Construction Site 4.5km/h Auto Loader Dumper
Specifications
Brand Name :
ZHONGMEI
Model Number :
3 Ton
Certification :
CE
Place of Origin :
shandong
MOQ :
1
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
Quantity(sets) 1 - 1000 5 days
Delivery Time :
5 days
Packaging Details :
* Wooden box with Standard Export Packing * Film plastic and wooden crate with manufacturer logo outsides. * All of the productions are inspected carefully by QC before delivery.
Product name: :
3 T Crawler Transport Truck
Keywords: :
Crawler Transport Truck
Max. flat Road Loading: :
3T Auto Loader Dumper
Gear: :
Six Forward And Two Backward
Crawler Model(mm): :
350*90*56 Auto Loader Dumper
Standing Slope Angle: :
35° Auto Loader Dumper
Description

ZHONGMEI Ce Certificate Mini Dumper Construction Site 4.5km/h Auto Loader DumperZHONGMEI Ce Certificate Mini Dumper Construction Site 4.5km/h Auto Loader Dumper

Introduction of ZHONGMEI Ce Certificate Mini Dumper Construction Site 4.5km/h Auto Loader Dumper

The versatility of crawler dump trucks is enhanced by their ability to traverse steep slopes and uneven terrain. The combination of the tracked undercarriage and the powerful engine allows the truck to climb gradients that would be difficult or impossible for wheeled vehicles. This capability is especially valuable in mining operations, where materials need to be transported from deep excavations or remote locations.

Operator comfort and safety are essential considerations in the design of crawler dump trucks. The operator's cab is designed to provide a comfortable working environment, with ergonomic controls, adjustable seats, and excellent visibility. Safety features such as rollover protection structures (ROPS), reinforced cabins, and seat belts are incorporated to protect the operator in case of accidents or rollovers. Some models may also have advanced features like rear-view cameras and automatic stability control systems to enhance safety during operation.

Parameters of ZHONGMEI Ce Certificate Mini Dumper Construction Site 4.5km/h Auto Loader Dumper

L*W*H(mm)
3300*1600*2100
Startup Method
Electric Start
Container Size
2200*1500*600
Driving Method
Mechanical Drive
Max. flat Road Loading
3T
Track Material
Engineering Steel Wire Rubber Track
Engine
Horizontal Bar Full Diesel Water Cooling (22hp) Power: 16.18kw
Gear
Six Forward And Two Backward
Whole Vehicle Weight(T)
1.5
Grounding Length
1680
Crawler Model(mm)
350*90*56
Ground Clearance(cm)
67
Transmission Material Model
Solid Power Nodular Cast Iron21#
Standing Slope Angle
35°
Max. Speed
15km/h
Number Of Bottom Steel Wheels
5 Large + 2 Small
Min. Speed
4.5km/h
Self-unloading Function
Hydraulic Self Unloading
Chassis Width(m)
1.6
Packing Dimensions
14m³

L*W*H(mm)
3500*1600*2100
Startup Method
Electric Start
Container Size
2300*1500*600
Driving Method
Mechanical Drive
Max. flat Road Loading
4T
Track Material
Engineering Steel Wire Rubber Track
Engine
Weichai Huajie 490 Power: 42kw
Gear
Six Forward And Two Backward
Whole Vehicle Weight(T)
1.6
Grounding Length
1780
Crawler Model(mm)
3200*900*560
Ground Clearance(cm)
67
Transmission Material Model
Solid Power Nodular Cast Iron21#
Standing Slope Angle
35°
Max. Speed
25km/h
Number Of Bottom Steel Wheels
6 Large + 2 Small
Min. Speed
4.5km/h
Self-unloading Function
Hydraulic Self Unloading
Chassis Width(m)
1.6
Packing Dimensions
15m³

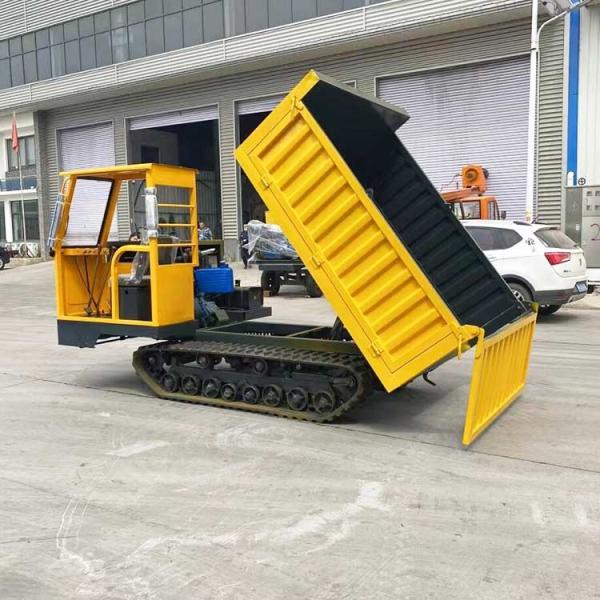

Photos of ZHONGMEI Ce Certificate Mini Dumper Construction Site 4.5km/h Auto Loader Dumper

ZHONGMEI Ce Certificate Mini Dumper Construction Site 4.5km/h Auto Loader DumperZHONGMEI Ce Certificate Mini Dumper Construction Site 4.5km/h Auto Loader DumperZHONGMEI Ce Certificate Mini Dumper Construction Site 4.5km/h Auto Loader DumperZHONGMEI Ce Certificate Mini Dumper Construction Site 4.5km/h Auto Loader DumperZHONGMEI Ce Certificate Mini Dumper Construction Site 4.5km/h Auto Loader Dumper

ZHONGMEI Ce Certificate Mini Dumper Construction Site 4.5km/h Auto Loader DumperZHONGMEI Ce Certificate Mini Dumper Construction Site 4.5km/h Auto Loader DumperZHONGMEI Ce Certificate Mini Dumper Construction Site 4.5km/h Auto Loader DumperZHONGMEI Ce Certificate Mini Dumper Construction Site 4.5km/h Auto Loader Dumper
