ZHONGMEI 8T Heavy Duty Lifting Machine Spider Lifting Cranes With CE Certificate
ZHONGMEI 8T Heavy Duty Lifting Machine Spider Lifting Cranes With CE Certificate
ZHONGMEI 8T Heavy Duty Lifting Machine Spider Lifting Cranes With CE Certificate
ZHONGMEI 8T Heavy Duty Lifting Machine Spider Lifting Cranes With CE Certificate
ZHONGMEI 8T Heavy Duty Lifting Machine Spider Lifting Cranes With CE Certificate
ZHONGMEI 8T Heavy Duty Lifting Machine Spider Lifting Cranes With CE Certificate
ZHONGMEI 8T Heavy Duty Lifting Machine Spider Lifting Cranes With CE Certificate
ZHONGMEI 8T Heavy Duty Lifting Machine Spider Lifting Cranes With CE Certificate
ZHONGMEI 8T Heavy Duty Lifting Machine Spider Lifting Cranes With CE Certificate
ZHONGMEI 8T Heavy Duty Lifting Machine Spider Lifting Cranes With CE Certificate
ZHONGMEI 8T Heavy Duty Lifting Machine Spider Lifting Cranes With CE Certificate
ZHONGMEI 8T Heavy Duty Lifting Machine Spider Lifting Cranes With CE Certificate
Specifications
Brand Name :
ZHONGMEI
Model Number :
8T
Certification :
CE
Place of Origin :
shandong
MOQ :
1
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
Quantity(sets) 1 - 1000 5 days
Delivery Time :
5 days
Packaging Details :
* Wooden box with Standard Export Packing * Film plastic and wooden crate with manufacturer logo outsides. * All of the productions are inspected carefully by QC before delivery.
Maximum working radius :
Mini Spider Craner 16m*0.2t
Maximum ground lift :
17m*0.9t
Wire Rope Specifications :
Φ10mm*120m
Boom form :
5 -stage boom
Vehicle size :
Length 4950*width 1560*height 2235
Gradeability :
20° (36%)
Voltage :
AC380V
Key words: :
Crawler Cranes
Description

ZHONGMEI 8T Heavy Duty Lifting Machine Spider Lifting Cranes With CE Certificate

ZHONGMEI 8T Heavy Duty Lifting Machine Spider Lifting Cranes With CE Certificate

ZHONGMEI 8T Heavy Duty Lifting Machine Spider Lifting Cranes With CE Certificate

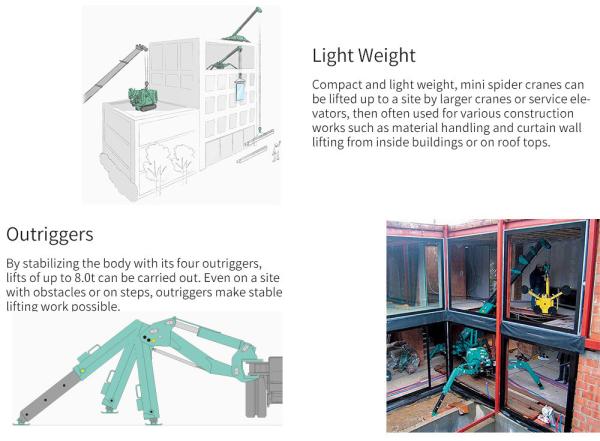

Introduction of ZHONGMEI 8 Ton Mini Spider Craner Electric Movable Small Spider Cranes With CE Certificate

Now the aerial construction is also more and more complex, and there are many parts of the aerial site, remote location, space is small, resulting in many normal large aerial work vehicles, such as many car cranes are difficult to expand the legs, even if they can barely get into this small work space, is also unable to normal lifting operations, or let lifting capacity greatly reduced.

In particular, some large shopping malls, large office areas of indoor aerial work, on some car cranes and aerial work vehicles is a great restriction, not only in these areas of work is difficult to carry out normal lifting operations, and even in many times normal access to these work areas are difficult.

The road crane spider crane is a mechanical equipment specifically used for lifting operations on roads. It has a unique spider shaped structure and can stably stand on uneven roads for work.

ZHONGMEI 8T Heavy Duty Lifting Machine Spider Lifting Cranes With CE Certificate

Product Paramenters

ZHONGMEI 8T Heavy Duty Lifting Machine Spider Lifting Cranes With CE Certificate

Parameters of ZHONGMEI 8 Ton Mini Spider Craner Electric Movable Small Spider Cranes With CE Certificate

Maximum working radius
16m*0.2t
Maximum ground lift
17m*0.9t
Winch
Hook up speed
0- 10 m/min
Wire Rope Specifications
Φ10mm*120m
Telescopic device
Boom form
5 -stage boom
Boom length
4.5m-16m
Undulating Device
Boom angle/time
0-7 5 °/13sec
Gyratory Device
Rotation angle/speed
0-360° (continuous)/60sec
Outrigger
Outrigger Action Form
Hydraulic automatic support + manual unscrewing
Maximum extension (mm)
6300 (L) X 4600 (Rear) , (Front)
Walking Device
way of walking
Hydraulic motor drive, two-speed ( rubber track )
Walking speed
0-5.5 km /h
Gradeability
20° (36%)
Motor
Voltage
AC380V
Engine
Producer
Yunnei
Type/displacement
YN27GBZ/2.7L
Start method
Electric start
Startup performance
-5°C~40°C
fuel/volume
Diesel / 45 L
battery capacity
24v 45AH
Fuel consumption
230 g/kW-h
noise level
Rated speed≤81.5dBA (1m)
Operating System
Type of operation (jib/outrigger), manual travel
Manual operation, manual walking + remote control (optional)
The standard configuration
Diesel engine and electric motor (dual power)
Vehicle size
Length 4950*width 1560*height 2235
Craftsmanship
Paint assembly process
Details Images

ZHONGMEI 8T Heavy Duty Lifting Machine Spider Lifting Cranes With CE Certificate

Photos of ZHONGMEI 8 Ton Mini Spider Craner Electric Movable Small Spider Cranes With CE Certificate

ZHONGMEI 8T Heavy Duty Lifting Machine Spider Lifting Cranes With CE CertificateZHONGMEI 8T Heavy Duty Lifting Machine Spider Lifting Cranes With CE CertificateZHONGMEI 8T Heavy Duty Lifting Machine Spider Lifting Cranes With CE CertificateZHONGMEI 8T Heavy Duty Lifting Machine Spider Lifting Cranes With CE Certificate

ZHONGMEI 8T Heavy Duty Lifting Machine Spider Lifting Cranes With CE Certificate

ZHONGMEI 8T Heavy Duty Lifting Machine Spider Lifting Cranes With CE Certificate

ZHONGMEI 8T Heavy Duty Lifting Machine Spider Lifting Cranes With CE CertificateZHONGMEI 8T Heavy Duty Lifting Machine Spider Lifting Cranes With CE CertificateZHONGMEI 8T Heavy Duty Lifting Machine Spider Lifting Cranes With CE Certificate
