SK75UR OEM Digger Excavator Swing Bearing Slew Ring 2425U261F1
SK75UR OEM Digger Excavator Swing Bearing Slew Ring 2425U261F1
SK75UR OEM Digger Excavator Swing Bearing Slew Ring 2425U261F1
SK75UR OEM Digger Excavator Swing Bearing Slew Ring 2425U261F1
Specifications
Brand Name :
Zhongxing
Model Number :
2425U261F1
Certification :
OEM
Place of Origin :
China
MOQ :
1 PC
Price :
Negotiable
Supply Ability :
10000pcs/month
Packaging Details :
Wooden Case Or As You Required
Model :
SK75UR
Weight :
110Kg
Quality :
High Quality
Part Name :
Slew Bearing
Texture :
Steel
Part Number :
2425U261F1
Description

Swing gears handle a lot of stress throughout their life and improper care can lead to replacement needs earlier than usual. Some of the most common reasons for swing gear failures include lack of lubrication, overloading or overworking the machine and outside contamination.

Excavator 2425U261F1 slewing ring bearing SK75UR swing bearing

Quick Detail

Application
Crawler excavator
Part name
Slew ring bearing
Model
SK75UR
Part number
2425U261F1
Warranty
Negotiable
Payment term
T/T, Western Union
After sales service
Online

SK75UR OEM Digger Excavator Swing Bearing Slew Ring 2425U261F1

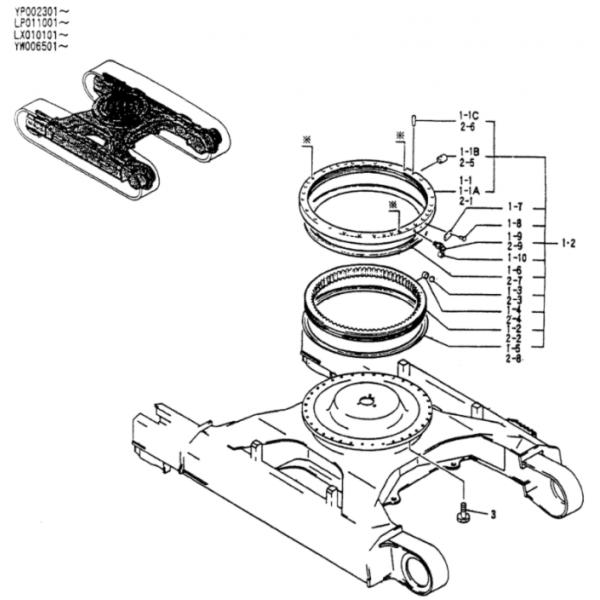

Pos. Part No Qty Parts name Comments
. . LP40F00001F1 [1] RING KOB Slewing Ring Assembly, Used in production, For Service Only 24100N7529F1 Superseded by part number: LP40F00001F4
1. 24100N7529F1 [1] RING KOB Slewing Assembly, Incls. Refs. 1-1 - 1-9, Service Replacement
1-1. 2425N373F1 [1] RACE KOB Outer
1-1A. NA [1] NOT SERVICED FOR Race, Outer
1-1B. 2420T4543D2 [1] PLUG KOB
1-1C. 2419T1964D7 [1] PIN,10mm OD x 56mm L KOB Taper -- OD 10 x 56mm Long
1-2. 2401N443 [1] RACE KOB Inner
1-3. 2425T321 [108] BALL KOB Ø25.4mm (1 in) Steel
1-4. 2425T322 [108] RETAINER KOB
1-5. 2445P165D6 [1] SEAL KOB Superseded by part number: YN40F01024D4
1-6. 2445P165D5 [1] SEAL KOB Superseded by part number: YN40F01024D4
1-7. 2432T1265 [1] LABEL KOB Name Plate Superseded by part number: YN22T00191P1
1-8. 4020Z64 [2] RIVET KOB OD 5.0 x 6.0mm Long Superseded by part number: 2420P623D7
1-9. ZG91S02000 [1] LUBE NIPPLE,1/8" NPT x 1/8" NPT KOB 1/8" PT -- Straight
1-10. 2414Z307 [1] CAP KOB
3. ZS13C16045 [36] SCREW KOB Screw -- M16x2.0x45mm
. . 2445P114D7 [1] SEAL KIT KOB Kit -- Contains Items 1-5 & 1-6 Superseded by part number: YN40F01024D4
. . LP40F00001F2 [1] Slewing Ring Assembly, Used in production, For Service Only 24100N7529F1
2. YW40F00001F1 [1] SLEWING RING KOB Superseded by part number: 24100N7529F1
2-1. NSS [1] NOT SOLD SEPARAT CON
2-2. NSS [1] NOT SOLD SEPARAT CON
2-3. 2425T321 [108] BALL KOB Ø25.4mm (1 in) Steel
2-4. 2425U238S4 [108] CAP
2-5. NSS [1] NOT SOLD SEPARAT CON
2-6. 2425U238S6 [1] PIN KOB TAPER
2-7. YW40F00001S007 [1] SEAL KOB
2-8. 2425U238S8 [1] SEAL KOB
2-9. ZG91S02000 [1] LUBE NIPPLE,1/8" NPT x 1/8" NPT KOB 1/8" PT -- Straight

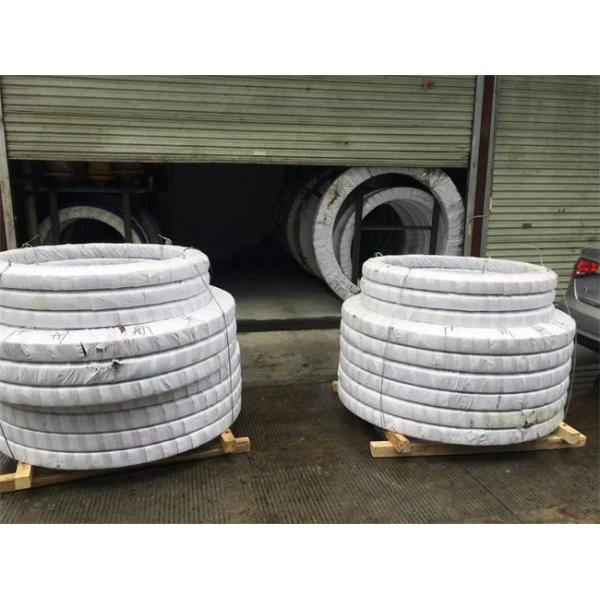

Packing
SK75UR OEM Digger Excavator Swing Bearing Slew Ring 2425U261F1
FAQ
Q: What are the main products?
A :Our main products are breaker hammer parts and other excavator parts.

Q: What is your minimum order quantity?
A :No MOQ, you can buy 1pc at first

Q: Do you accept OEM order?
A :Yes, OEM is available, welcome to tell us your requirements.

Q : What is the normal packing?
A :Standard export packing or as you required
