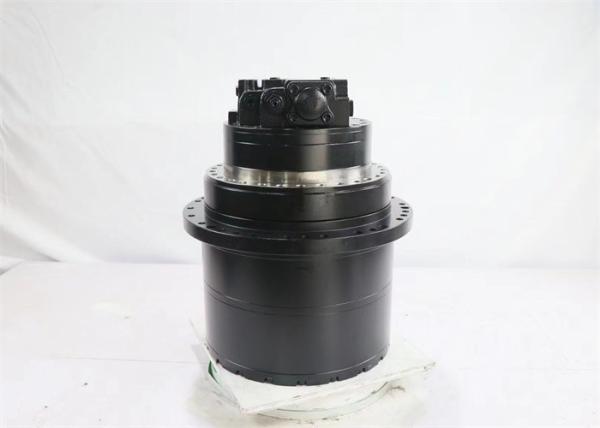

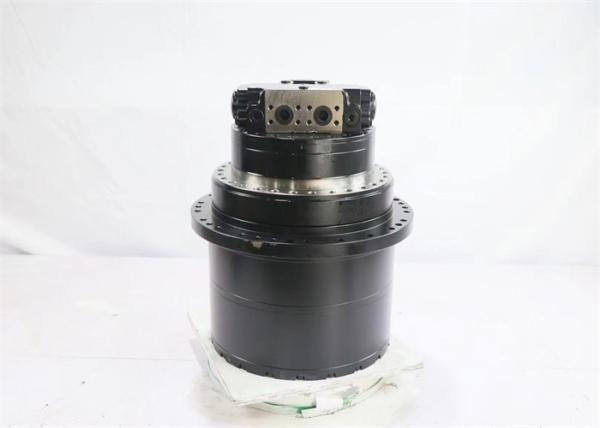

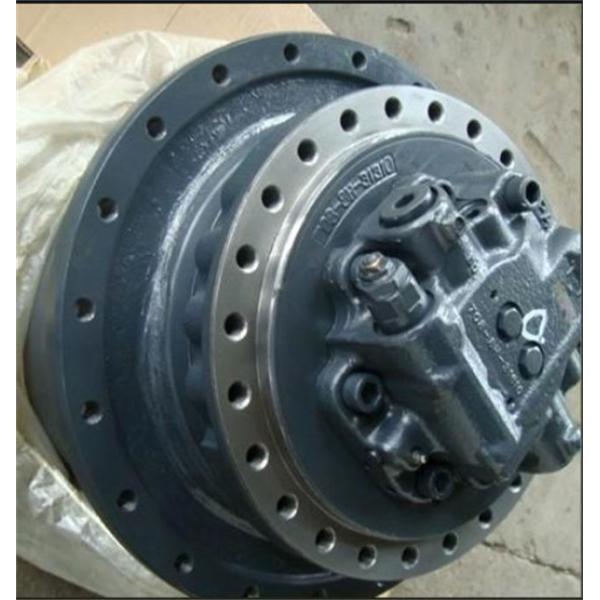

Steel Travel Gear Box SK250 SH200A3 Motor Swing Assy 260 8 TM40
Steel Travel Gear Box SK250 SH200A3 Motor Swing Assy 260 8 TM40
Steel Travel Gear Box SK250 SH200A3 Motor Swing Assy 260 8 TM40
Steel Travel Gear Box SK250 SH200A3 Motor Swing Assy 260 8 TM40
Steel Travel Gear Box SK250 SH200A3 Motor Swing Assy 260 8 TM40
Steel Travel Gear Box SK250 SH200A3 Motor Swing Assy 260 8 TM40
Specifications
Brand Name :
Zhongxing
Model Number :
TM40
Certification :
OEM
Place of Origin :
China
MOQ :
1 PC
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
1000pcs/month
Packaging Details :
Wooden case
Model :
SK250/260-8 SH200A3 SH210-5/240-5 HD800
Quality :
High Quality
Texture :
Steel
Weight :
310KG
Color :
Black
Part Name :
Final Drive
Description

Like wheel motors, travel drive motors are used in a variety of industries including construction, material handling, and forestry. Travel drives are used on crawler-type machines such as excavators, feller-bunchers, skidders, mobile crushers, crawler cranes, crane shovels, and crawler tractors

EXcavator TM40 final drive SK250/260-8 SH210-5/240-5 HD800 travel motor assy

Application Excavator
Part name Swing gearbox
Material Steel
Model SK250/260-8 SH200A3 SH210-5/240-5 HD800
MOQ 1PC
Warranty 6 months
Payment term T/T, Western Union ,RMB
Delivery Time 3-15 days
Shipping By Sea, By Air, By Express
Packing Wooden package

Steel Travel Gear Box SK250 SH200A3 Motor Swing Assy 260 8 TM40

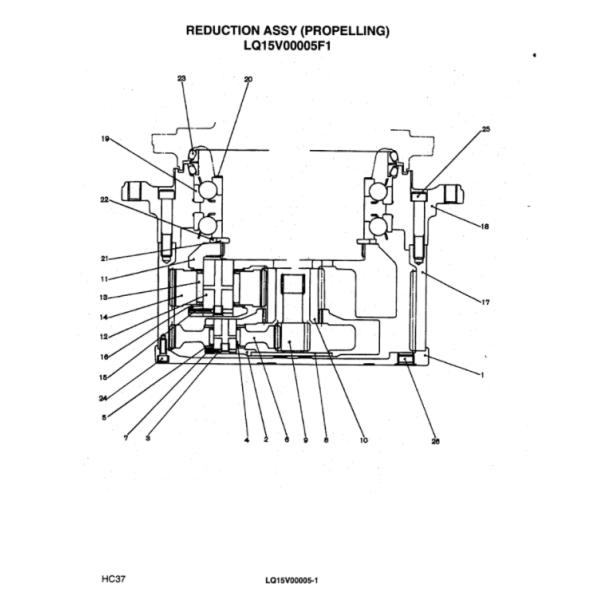

Pos. Part No Qty Parts name Comments
. . LQ15V00005F1 [1] GEAR REDUCTION UNIT KOB (PROPELLING) Superseded by part number: LQ15V00005F3
1. LQ15V00005S001 [1] COVER KOB
2. LQ15V00005S002 [1] CARRIER KOB
3. LQ15V00005S003 [3] PIN KOB
4. LQ15V00005S004 [3] BEARING KOB NEEDLE
5. LQ15V00005S005 [6] WASHER KOB
6. LQ15V00005S006 [3] GEAR KOB PLANETARY
7. ZP26D04022 [3] PIN KOB SPRING
8. LQ15V00005S008 [1] PLATE KOB THRUST
9. LQ15V00005S009 [1] GEAR KOB SUN
10. LQ15V00005S010 [1] GEAR KOB SUN
11. LQ15V00005S011 [1] CARRIER ASSY. KOB CARRIER
12. LQ15V00005S012 [3] PIN KOB
13. LQ15V00005S013 [3] BEARING KOB NEEDLE
14. LQ15V00005S014 [3] GEAR KOB PLANETARY
15. ZP26D06036 [3] PIN KOB Roll -- OD 06 x 36mm Long
16. LQ15V00005S016 [6] WASHER KOB
17. LQ15V00005S017 [1] GEAR KOB RING
18. LQ15V00005S018 [1] HOUSING KOB
19. LQ15V00005S019 [2] BEARING KOB
20. LQ15V00005S020 [1] SHIM KOB
21. LQ15V00004S021 [2] PISTON KOB LOCK WASHER
22. LQ15V00005S022 [1] RING KOB
23. LQ15V00005S023 [1] SEAL KOB FLOATING Superseded by part number: ZD58F30040
24. ZS23C10025 [16] SCREW,Hex Socket Head, M10 x 25mm KOB M10x1.50x25mm Superseded by part number: ZS28C10025
25. ZS23C16090 [20] SCREW,Hex Socket Head, M16 x 90mm KOB M16x2.0x90mm
26. ZE82T12000 [2] PLUG KOB 3/4" PT

Steel Travel Gear Box SK250 SH200A3 Motor Swing Assy 260 8 TM40

FAQ:

Q. Which countries have you exported?
A : ASIA: Iraq, UAE, Thailand, Malaysia, Indonesia, Vietnam, Bangladesh, Kuwait, Lebanon
EUROPE: Russia, Kazakhstan, Greece, Norway, Ireland
OCEANIA: Australia, Fiji, Kiribati, New Caledonia
AMERICAS: USA, Canada, Jamaica, Brazil, Peru, Chile,
AFRICA: Angola, South Africa, Kenya, Tanzania, Zambia, Sudan, South Sudan, Egypt, Algeri, Nigeria

Q: How to guarantee your service?
A :Strict inspection during production,before shipping. And we will Track and

receive feedback from customer regularly

Q: What is the warranty for the products?
A :We offer different warranty to different products,3-12 months.

Q: When can you deliver after sending deposit?


A :It depends on your order quantity, if we have stock then need about 3~10

working days get it ready, if no stock we will start to produce when the deposite received. Usually it takes 15-60 days for different items.
