Hyundai Excavator Ram Hydraulic Cylinder Assembly R210 R210 9 R210LC 9
Hyundai Excavator Ram Hydraulic Cylinder Assembly R210 R210 9 R210LC 9
Hyundai Excavator Ram Hydraulic Cylinder Assembly R210 R210 9 R210LC 9
Hyundai Excavator Ram Hydraulic Cylinder Assembly R210 R210 9 R210LC 9
Specifications
Brand Name :
Zhongxing
Model Number :
R210-9
Certification :
OEM
Place of Origin :
China
MOQ :
1 PC
Price :
Negotiable
Supply Ability :
1000pcs/month
Packaging Details :
Wooden case
Catagory :
Hydraulic Spare Parts
Part Name :
Excavator Hydraulic Cylinder
Machinery :
R210-9 R210 - 9
Material :
Metal
Package :
Wooden Box
Application :
Excavator
Description

Hydraulic cylinders are used as linear actuators to apply unidirectional force and stroke in many marine and offshore engineering applications. The piston rod of these cylinders transmits the power from the displacement of pressurized hydraulic fluid via the piston inside the cylinder shell

R210 R210-9 R210LC-9 Bucket Cylinder Assy for Crawler Excavator

Name Hyundai Crawler Excavator Bucket Cylinder Assy
Quality High
Model R210 R210-9 R210LC-9
Color Orange
Packing 1pc
After-sales service 7/24
Condition 100% New
Stock Condition In Stock
Category Group Hydraulic Spare Parts
Usage Mining &Construction &Road &Agricuture &Earth moving
Related Products

1.boom cylinder

2.boom cylinder seal kit

3.arm cylinder

4.arm cylinder seal kit

5.bucket cylinder seal kit

……

List of spare parts

# Part No Part Name Qty.
* 31Q6-60110 CYLINDER ASSY 1
*-1 31Y1-28970 BUCKET CYL SUB ASSY
WITHOUT PIPE		 1
1 31Y1-28980 TUBE ASSY 1
2 31Y1-29030 ROD ASSY 1
3 31Y1-29080 GLAND 1
4 S732-085030 BUSHING-DD2 1
5 Y191-092000 RING-SNAP 1
K6 Y220-085013 SEAL-ROD 1
K7 Y180-085020 RING-BACK UP 1
K8 Y240-085012 RING-BUFFER 1
K9 Y110-085011 WIPER-DUST,DKBI,DLW 1
10 Y190-099000 RING-SNAP 1
K11 S632-115004 O-RING 1
K12 S642-115003 RING-BACK UP 1
13 31YC-26060 RING-CUSHION 1
14 31Y1-28940 PISTON 1
K15 Y420-120000 SEAL-PISTON,SPGW 1
K15 Y420-120002 SEAL-PISTON 1
K16 Y310-120203 RING-WEAR 2
K17 Y440-120002 RING-DUST 2
K18 S632-060004 O-RING 1
K19 S642-060003 RING-BACKUP,O-RING 2
20 31YC-68030 NUT-LOCK 1
21 S114-080144 SCREW-SET,HEX SOC HDLESS 1
K22 S632-120004 O-RING 1
23 S109-160754 BOLT-SOCKET 12
24 31YC-16010 BUSHING-PIN 1
24 61Q6-05570 BUSHING-PIN 1
25 31YC-15020 BUSHING-PIN 1
25 61Q6-97220 BUSHING-PIN 1
26 Y020-080000 SEAL-DUST,DLI,KPU 4
23 61Q6-05570 BUSHING-PIN 1
27 31Y1-29290 BAND ASSY 2
24 61Q6-97220 BUSHING-PIN 1
25 Y020-080000 SEAL-DUST,DLI,KPU 4
27-1 31Y1-29300 BAND SUB ASSY 1
27-2 31YC-31480 BAND 1
26-2 31YC-31480 BAND 1
26-3 S011-100352 BOLT-HEX 2
26-4 S411-100002 WASHER-SPRING 2
26-5 31YC-36010 CLAMP-PIPE 1
26-6 S015-120502 BOLT-HEX 1
26-7 S411-120002 WASHER-SPRING 1
27-3 S011-100352 BOLT-HEX 2
27-4 XKCF-00235 WASHER-SPRING 2
27-5 31YC-36010 CLAMP-PIPE 1
27-6 S015-120502 BOLT-HEX 1
27-7 S411-120002 WASHER-SPRING 1
28 31Y1-29310 PIPE ASSY-R 1
29 31Y1-15695 PIPE ASSY-B 1
K30 Y171-019004 O-RING(AN ??) 2
31 S107-100454 BOLT-SOCKET HEAD 8
K 31Y1-29100 SEAL KIT
SEE ILLUST		 1

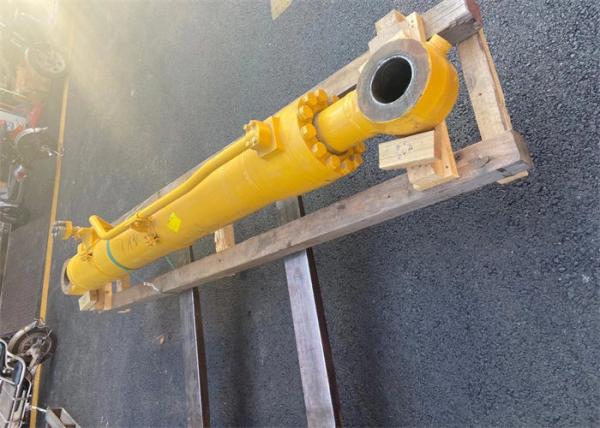

Packing Photo

Hyundai Excavator Ram Hydraulic Cylinder Assembly R210 R210 9 R210LC 9

FAQ:

Q: Are you a manufacturer factory?
A :Yes,we are the direct manufacture factory located in Guangzhou,China. We are specialized in offering all kinds of excavator parts with 16 years experience.


Q: What are the main products?
A :Our main products are breaker hammer parts and other excavator parts.

Q: How to guarantee your service?
A :Strict inspection during production,before shipping. And we will track and receive feedback from customer regularly

Q. Which countries have you exported?
A :ASIA: Iraq, UAE, Thailand, Malaysia, Indonesia, Vietnam, Bangladesh, Kuwait, Lebanon
EUROPE: Russia, Kazakhstan, Greece, Norway, Ireland
OCEANIA: Australia, Fiji, Kiribati, New Caledonia
AMERICAS: USA, Canada, Jamaica, Brazil, Peru, Chile,
AFRICA: Angola, South Africa, Kenya, Tanzania, Zambia, Sudan, South Sudan, Egypt, Algeri, Nigeria
