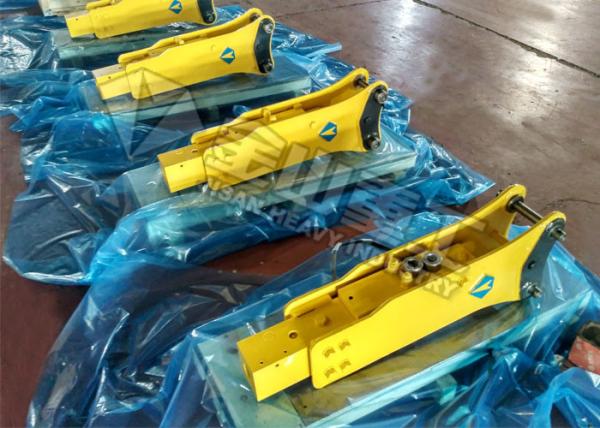

CE Certified Hydraulic Hammer Breaker 45mm Tool For Sunward Excavator SWE18
CE Certified Hydraulic Hammer Breaker 45mm Tool For Sunward Excavator SWE18
CE Certified Hydraulic Hammer Breaker 45mm Tool For Sunward Excavator SWE18
CE Certified Hydraulic Hammer Breaker 45mm Tool For Sunward Excavator SWE18
Specifications
Brand Name :
JISAN
Model Number :
JSB200
Certification :
CE, ISO
Place of Origin :
YANTAI,CHINA
MOQ :
1 set
Price :
Negotiation ( EXW , FOB or CIF price )
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
800 Sets per year
Delivery Time :
5-7 Workdays
Packaging Details :
Export Wooden Cases or Pallets
Flux :
15-25 L/Min
Impact Rate :
700-1200 Bpm
Suit Excavator :
1.5-3 Ton
Tool Type :
Moil, Wedge, Flat, Blunt, Conical type Chisel
Tool Diameter :
45 mm
Warranty :
14 Months
Description

CE Certified Excavator Rock Hammer Breaker For Mini Sunward Excavator SWE18


Hydraulic breaker's power source is excavators,loaders or pumping stations' pressure.It can break stones and rocks more effectively in the engineering construction.Selection of hydraulic breaker principle is according to the operation environment and excavator type.

Description

1. Selected raw material – high quality heavy duty wear resistant steel
2. Hydraulic-gas system, increase stability
3. High-quality and durable wear parts
4. Advanced manufacturing facilities, introduced from Korea
5. High energy and impact frequency (high performance)
6. High-performance optimized hydraulic unit
7. Low maintenance, less breakdown, long using life
8. Fully enclosed housing with robust structure

CE Certified Hydraulic Hammer Breaker 45mm Tool For Sunward Excavator SWE18


Specification

Model Weight (Kg) Length (Mm) Pressure (kg/cm2) Flux (L/Min) Rate (Bpm) Hose (Inch) Chisel (Mm) Suit (Ton)
JSB200 100/120 1100 90-120 15-25 700-1200 1/2 45/53 1.2-3.0
JSB400 298 1347 110-140 25-45 500-900 1/2 68/70 3.0-5.5
JSB600 421 1528 110-160 30-45 500-800 1/2 75 4.0-7.0
JSB800 577 1920 120-170 45-85 400-700 3/4 85 7.0-14
JSB900 973 2260 150-170 80-120 400-700 3/4 100 11-16
JSB1600 1855 2695 160-180 120-160 400-700 1 135 19-26
JSB1900 1989 2810 160-180 130-170 400-600 1 140 19-26
JSB2800 2420 2895 160-180 150-190 350-500 1 150 27-38
JSB3500 2750 3152 160-180 170-220 250-400 1 155 28-40
JSB4500 3160 3310 160-180 200-300 250-350 1.25 165 36-45
JSB5000 4210 3400 160-180 210-290 200-350 1.25 175 40-55
JSB5500 4720 3400 180-220 220-300 200-250 1.25 185 50-60
JSB6000 4910 3420 180-220 230-320 180-200 1.25 190 55-65
JSB6500 6100 3700 190-230 360-450 120-200 1.25 210 65-100


CE Certified Hydraulic Hammer Breaker 45mm Tool For Sunward Excavator SWE18

Application

1. mining—mining, second-time breaking
2. metallurgy—clearing slag, demolition of furnace and foundation
3. road—repairing, breaking, foundation work
4. railway—tunneling, demolition of bridge
5. construction—demolition of bulinding and reinforced concrete
6. ship repairing—clearing clam and rust from the hull
7. others—breaking frozen mud

Certification

Jisan Heavy Industry Ltd is a leading manufacture of hydraulic breaker and excavator attachments. The main products have passed CE and ISO9001 certification. We have already established over 120 agencies in the world. As one of the largest excavator attachments manufacture in China, we can supply all kinds of attachments to satisfy clients different demand.

Sincerely welcome friends to join us for long term co-operation.
