Heavy Duty Hydraulic Vibratory Hammer Customized Clip Mouth For 12 Meter Sheet Pile
Heavy Duty Hydraulic Vibratory Hammer Customized Clip Mouth For 12 Meter Sheet Pile
Heavy Duty Hydraulic Vibratory Hammer Customized Clip Mouth For 12 Meter Sheet Pile
Heavy Duty Hydraulic Vibratory Hammer Customized Clip Mouth For 12 Meter Sheet Pile
Heavy Duty Hydraulic Vibratory Hammer Customized Clip Mouth For 12 Meter Sheet Pile
Heavy Duty Hydraulic Vibratory Hammer Customized Clip Mouth For 12 Meter Sheet Pile
Specifications
Brand Name :
JISAN
Model Number :
JSP20
Certification :
CE,ISO
Place of Origin :
CHINA
MOQ :
1 Set
Price :
Negotiation ( EXW , FOB or CIF price )
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000 Sets per year
Delivery Time :
5-7 Workdays
Packaging Details :
Export Wooden Cases or pallets
Main Body Weight :
2080 Kg
Extension Boom Weight :
740 Kg
Composition :
assistant hand,main body, clip mouth
Suitable Excavator :
20-30 Ton All Brand Excavator
Service Time :
12 Months
Power :
Hydraulic power
Description

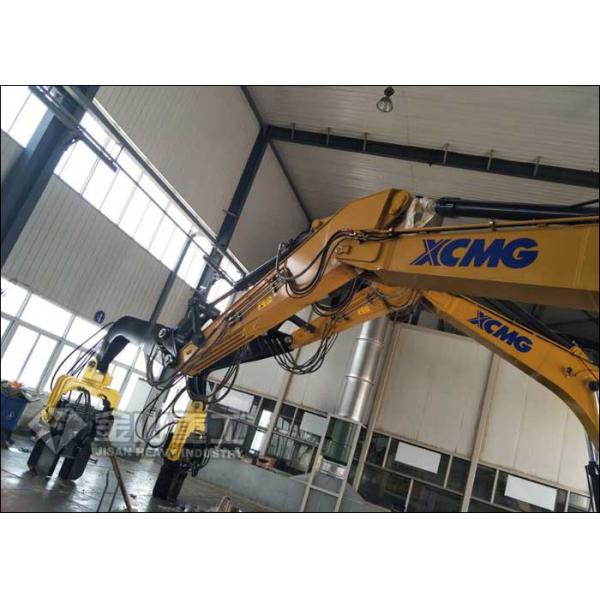

Excavator Mounted Hydraulic Steel Pile Driver Machine For 12 Meter Sheet Pile


Features

1. Hydraulic Motor driven turntable
2. Ventage
3. Adopts highly efficient imported damping rubber block
4. Adopts original imported hydraulic motor
5. Powerful hydraulic cylinder,Super durable tooth piece
6. Precision oil system
7. Well designed circuit control box
8. Adopts original imported control handle

Heavy Duty Hydraulic Vibratory Hammer Customized Clip Mouth For 12 Meter Sheet Pile


Parameter

ItemModel Unit JSP20 JSP40
Eccentric Moment Nm 40 85
Frequency rpm 2800 2800
Centrifugal Force KN 300 570
Amplitude mm 6.8 14
Working Pressure bar 280 300
Oil Flow L/min 155 255
Max Turning degree 270 270
Weight Main Body kg 2080 2940
Extension Boom kg 740 1070
Total weight kg 2900 4100
Applicable Excavator Ton 20-30 35-50



Application

hydraulic vibratory pile driver is using vibrating pile sinking to drive or extract piles. It is especially suitable for municipal, bridges,cofferdam,building foundation etc.

Heavy Duty Hydraulic Vibratory Hammer Customized Clip Mouth For 12 Meter Sheet Pile


Company Introduction

Jisan Heavy Industry Ltd. is a leading manufacturer of hydraulic breaker and attachments, widely used in the construction, demolition, mining industries and special project. At present, the capacities of research and development, and manufacturing and the level of quality control stand at the forefront of the industry regarding comprehensive strength.

After nearly ten years of development, we process a professional and experienced technical research team, We have over 300 employees, includes over 40 engineers, production workshop cover 30,000 square meters. With advanced testing equipments, leading R&D capability, and LPS production line, the company has passed authentication of BV, SGS, and CE certification. Quality is the life of enterprise! Grasp the quality source in all the details.

Heavy Duty Hydraulic Vibratory Hammer Customized Clip Mouth For 12 Meter Sheet Pile
