Specifications
Brand Name :
JISAN
Model Number :
JSB400
Certification :
CE, ISO
Place of Origin :
YANTAI,CHINA
MOQ :
1 set
Price :
Negotiation ( EXW , FOB or CIF price )
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1500 Sets per year
Delivery Time :
3-5 Workdays
Packaging Details :
Export Wooden Cases or pallets
Color :
Yellow or Customized
Chisel Diameter :
68 mm
Carrier :
3-5.5 Ton Mini Excavator
Weight :
300 kg
Type :
silence type, top type, side type hydraulic rock breaker
Warranty :
14 Months
Description

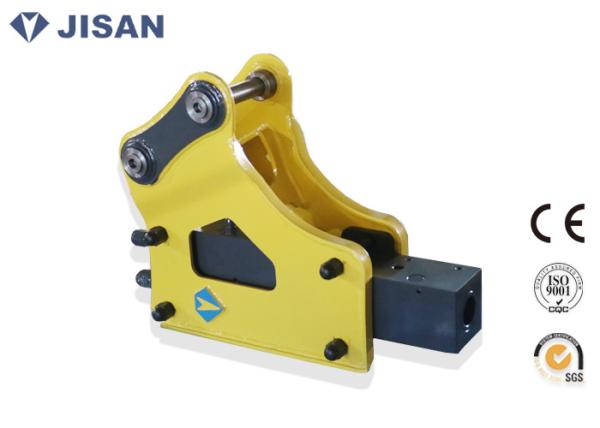

SB40 Hydraulic Rock Breaker Demolition Hammer For Mini Excavator Sany SY55 SY60

Hydraulic breakers are widely applied to rock broken, mining, road, building engineering, dismantling engineering and special engineering (underwater project, tunnel project), etc. Our breaker includes side type, top type, silenced type and backhoe loader type breaker.

Description

1. Supplied ready to use with hydraulic hoses, tool, N2 gas charging kit
2. Easy fitment onto any kinds of excavators
3. Durable body incorporating heavy duty rock claws
4. Perfectly matched tool and piston ensure maximum energy transfer to the material being broken
5. The hydraulic accumulator gives greater acceleration in the power stroke and reduces pressure peaks in the carrier hydraulic system.

SB40 Hydraulic Breaking Hammer Demolition Tool  For Mini Sany SY55 SY60

Specification

Model Weight (Kg) Length (Mm) Pressure (kg/cm2) Flux (L/Min) Rate (Bpm) Hose (Inch) Chisel (Mm) Suit (Ton)
JSB200S 90/110 1100 90-120 15-25 700-1200 1/2 45/53 1.2-3.0
JSB400S 254 1347 110-140 25-45 500-900 1/2 68/70 3.0-5.5
JSB600S 380 1528 110-160 30-45 500-800 1/2 75 4.0-7.0
JSB800S 510 1920 120-170 45-85 400-700 3/4 85 7.0-14
JSB900S 765 2260 150-170 80-120 400-700 3/4 100 11-16
JSB1600S 1668 2695 160-180 120-160 400-700 1 135 19-26
JSB1900S 1805 2810 160-180 130-170 400-600 1 140 19-26
JSB2800S 2228 2895 160-180 150-190 350-500 1 150 27-38
JSB3500S 2580 3152 160-180 170-220 250-400 1 155 28-40
JSB4500S 2755 3310 160-180 200-300 250-350 1.25 165 36-45
JSB5000S 3910 3400 160-180 210-290 200-350 1.25 175 40-55
JSB5500S 4135 3400 180-220 220-300 200-250 1.25 185 50-60
JSB6000S 4650 3420 180-220 230-320 180-200 1.25 190 55-65
JSB6500S 5860 3700 190-230 360-450 120-200 1.25 210 65-100

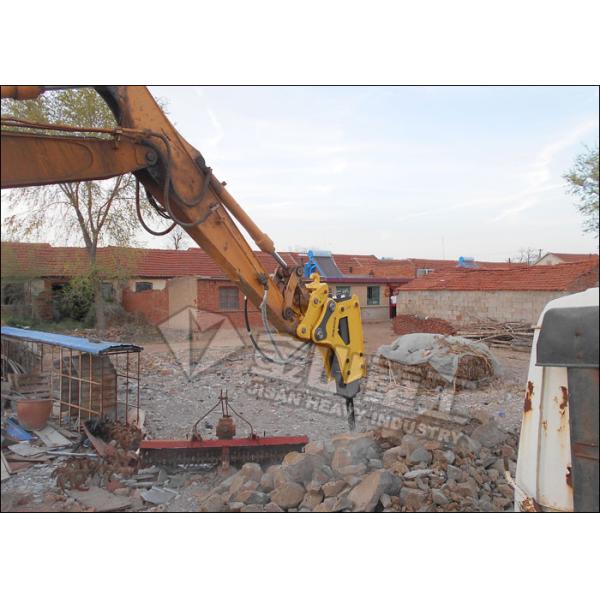

Application

1.Mining: Mountains, mining, crushing, secondary crushing
2.Metallurgy, slag cleaning, ladle furnace demolition, demolition equipment foundation body dissatisfied
3.Railway, tunnel, bridge, mountain down.
4.Highway: highway repair, cement pavement broken, foundation excavation.
5.Municipal gardens, concrete crushing, gas engineering construction, the transformation of the old city.
6.Building: the old building demolition, reinforced concrete broken.

SB40 Hydraulic Breaking Hammer Demolition Tool  For Mini Sany SY55 SY60

Company Introduction

Jisan Heavy Industry Ltd. is a leading manufacturer of hydraulic breaker and attachments, widely used in the construction, demolition, mining industries and special project. At present, the capacities of research and development, and manufacturing and the level of quality control stand at the forefront of the industry regarding comprehensive strength.

After nearly ten years of development, we process a professional and experienced technical research team, We have over 300 employees, includes over 40 engineers, production workshop cover 30,000 square meters. With advanced testing equipments, leading R&D capability, and LPS production line, the company has passed authentication of BV, SGS, and CE certification. Quality is the life of enterprise! Grasp the quality source in all the details.
