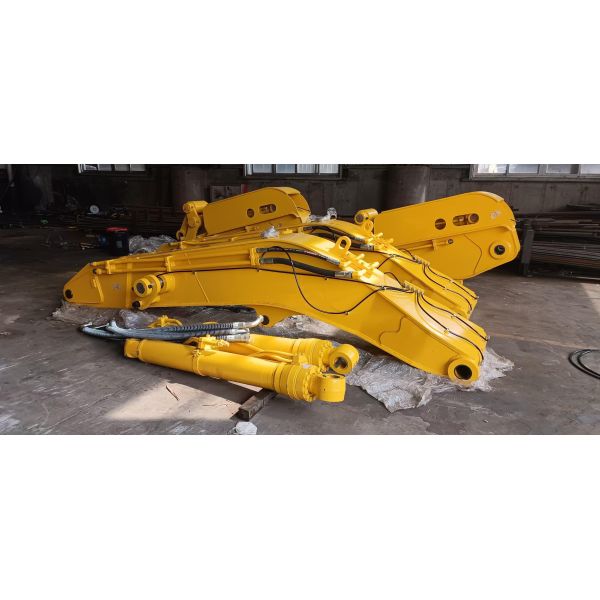

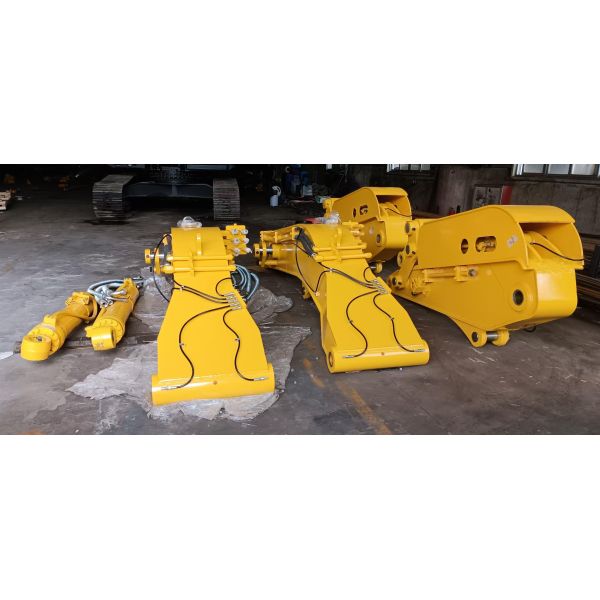

|| Excavator Tunnel Arms Suitable For Application

What is the role of beveling the long arm plate?

The penetration depth of the commonly used welding machines in the industry is only 3mm thick. The thickness of our long arm plate is at least 8mm. If the beveling is not opened, the welder cannot penetrate the entire weld, so the welding effect will be very poor, and problems such as weld cracking will occur later.

We use mechanical beveling, while other factories use manual beveling (as shown in the figure)

|||About Our Company------Zhonghe Machinery

Kaiping Zhonghe Machinery Co.,Ltd. established in 2018, it is a combination of manufacturing and trading, specializing in customizing different kinds of excavator boom arms and attachments. We are located in cuishanhu New District. Kaiping cityJiangmen City. Guangdong Province, China. We boast a 21000m3 steel structure workshop with a large number of high precision processing equipment and a strong and cohesive team of over 100 experienced technical staff. 50 welding workers with over 7 years experience. 30 senior designers, and a high-tech R&D team(10+ years on customization.100+technical patents), strict production system(6+ years quality control and cost control) and warm-hearted service team. Our annual output of various types of excavator boom arms can reach up to 800 sets.

Production Using High-precision Instruments

Plasma cutting machine

Plates less than 30mm thick are plasma cut, while those over 30mm are flame cut. Plasma cutting deformation is 0.1 mm.CNC plasma cutting with less panel deformation.

Double sided boring machine

Improved accuracy and consistency: Since the boring pin operations on both sides of the double-sided boring machine are performed simultaneously, the machining accuracy and consistency on both sides can be guaranteed.

• Milling machine
• responsible for milling wear-resistant blocks, positioning of pipe clamps, etc., used for boring holes. The product precision is strict, the drilling error is within 5-10um, and the precise and accurate design can make the force more balanced, thereby extending the service life.

Beveling machine

It is responsible for the beveling of the plate, which is the first process before welding. Mechanical beveling is used instead of flame beveling, and only 2mm plate thickness is reserved for beveling, so that the plate and welding material can be better welded. By beveling, the welding machine can penetrate the entire weld, and it is not easy to cause problems such as weld cracking.

Our factory has complete production equipment, which is conducive to the production of our products, good quality and guaranteed product accuracy.

1. The panel is cut by CNC plasma machine with small deformation.
2. The tolerance is within 5-10um to ensure the accuracy of the hole.
3. Environmentally verified paint room.
4. GMAW-gas shielded metal arc welding.
5. Plasma cutting machine, boring machine, beveling machine, bending machine, etc. to ensure accuracy.

Q1: Are you a manufacturer?

A1: Zhonghe Machinery provides a wide variety of attachments for excavators. Such as long arms, demolition arms, telescopic arms, standard buckets, rock buckets, cleaning buckets, tilt buckets, etc. We know that the perfect combination of high-quality cast steel products and moderate prices is the key to success.

Q2: Why is it called a tunnel arm?

A2: Tunnel arms generally refer to working devices that operate in narrow spaces. Most of them operate in tunnels, so they are called tunnel arms. Each country has a different name, but in China we call it a tunnel arm.
