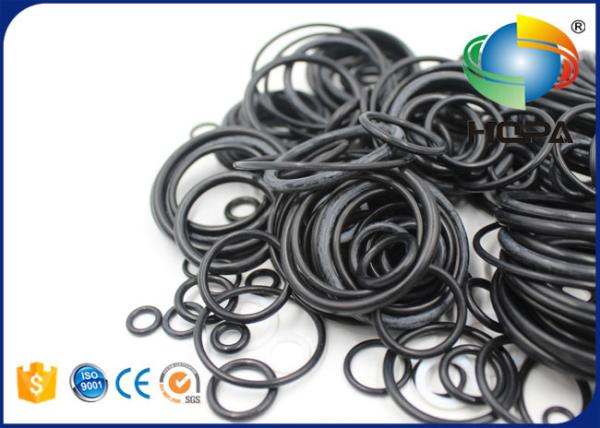

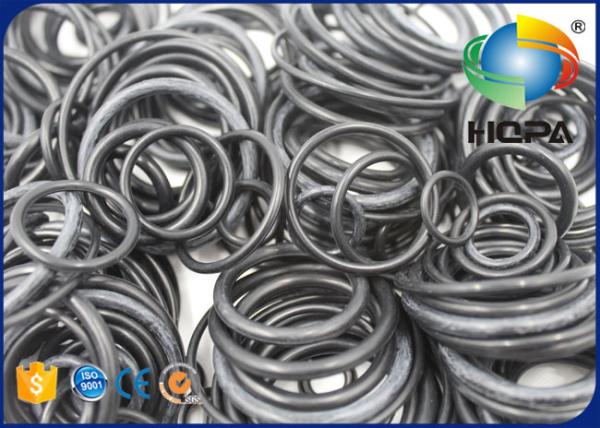

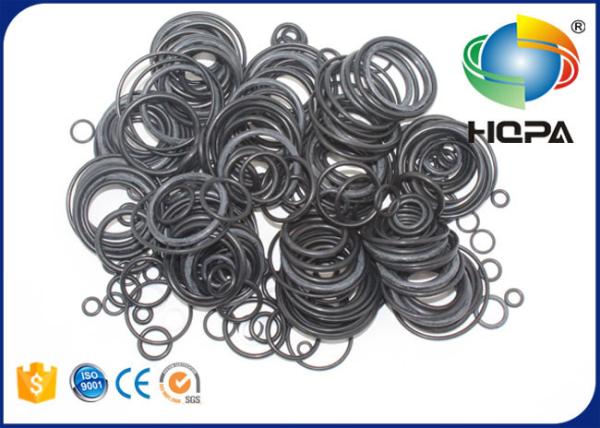

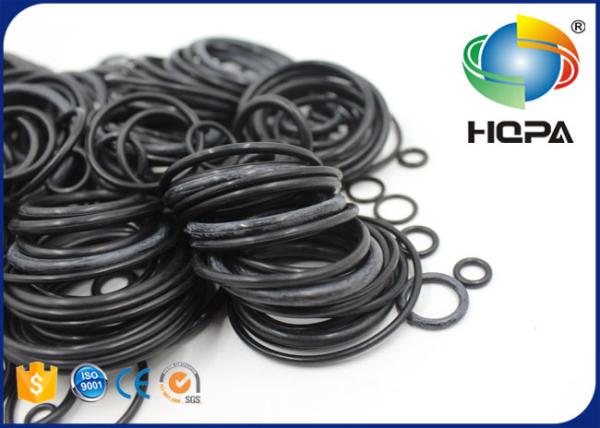

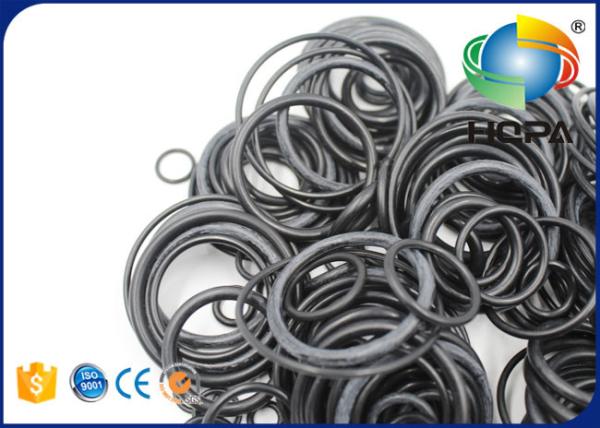

723-49-26101 723-49-26100 Main Control Valve Seal Kit For Komatsu PC300-7
723-49-26101 723-49-26100 Main Control Valve Seal Kit For Komatsu PC300-7
723-49-26101 723-49-26100 Main Control Valve Seal Kit For Komatsu PC300-7
723-49-26101 723-49-26100 Main Control Valve Seal Kit For Komatsu PC300-7
723-49-26101 723-49-26100 Main Control Valve Seal Kit For Komatsu PC300-7
723-49-26101 723-49-26100 Main Control Valve Seal Kit For Komatsu PC300-7
723-49-26101 723-49-26100 Main Control Valve Seal Kit For Komatsu PC300-7
723-49-26101 723-49-26100 Main Control Valve Seal Kit For Komatsu PC300-7
723-49-26101 723-49-26100 Main Control Valve Seal Kit For Komatsu PC300-7
723-49-26101 723-49-26100 Main Control Valve Seal Kit For Komatsu PC300-7
723-49-26101 723-49-26100 Main Control Valve Seal Kit For Komatsu PC300-7
723-49-26101 723-49-26100 Main Control Valve Seal Kit For Komatsu PC300-7
Specifications
Brand Name :
HQPA/OEM
Model Number :
723-49-26101 723-49-26100 Main Control Valve Seal Kit
Certification :
ISO9001
Place of Origin :
CHINA(MAINLAND)
MOQ :
Negotiable
Price :
negotiation
Payment Terms :
Western Union, L/C, T/T, MoneyGram, D/A, D/P
Supply Ability :
500 Sets per Week
Delivery Time :
3-5 days after payment received(public holiday excluded)
Packaging Details :
PP bag inside, carton box outside
Product :
723-49-26101 723-49-26100 Main Control Valve Seal Kit
Part Number :
723-49-26101KT 723-49-26100KT 723-49-26101 723-49-26100 7234926101KT 7234926100KT 7234926101 7234926100 Hydraulic Main Control Valve Assy
Fit for model :
Komatsu PC360-7 PC300-7-AA PC300LC-7 PC300LC-7-BA PC300-7 PC350LC-7 PC350-7
Group :
Main Control Valve Seal Kit / Control Valve Seal Kit
Loading Port :
HUAGNPU,China (Mainland)
Packing :
Neutral packing / HQPA packing
Description

723-49-26101 723-49-26100 Main Control Valve Seal Kit for Komatsu PC300-7
1.Product Description:

The travel motor provides the power that the final drive transforms into torque. Then torque is transferred to the sprocket, which turns the wheel or track.
The power comes from the hydraulic system.
When you find the travel lose power, there might be because the oil leakage caused to the travel motor.
In other words, the travel motor seal kit prevents oil from leaking and maintains power.


2.General Product Information:

723-49-26101 723-49-26100 Main Control Valve Seal Kit for Komatsu PC300-7
Brand Name HQPA/OEM
Product Name 723-49-26101 723-49-26100 Main Control Valve Seal Kit for Komatsu PC300-7
Product style Main Control Valve Seal Kit / Control Valve Seal Kit
Part No. 723-49-26101KT 723-49-26100KT 723-49-26101 723-49-26100 7234926101KT 7234926100KT 7234926101 7234926100 Hydraulic Main Control Valve Assy
Related parts: Boom Cylinder Seal Kit / Arm Cylinder Seal Kit / Swing Motor Seal Kit / Travel Motor Seal Kit / Main Pump Seal Kit / Pilot Pump Seal Kit / Regulator Valve Seal Kit / Main Control Valve Seal Kit
Application Komatsu PC360-7 PC300-7-AA PC300LC-7 PC300LC-7-BA PC300-7 PC350LC-7 PC350-7-AA PC350LC-7-BA PC350-7
MOQ 1 PC
Condition 100% New
Package Inner-Plastic Bag; Outer -Standard Carton Box.
Payment Western Union, L/C, T/T, MoneyGram, D/A, D/P etc.
Departure ports Huangpu(Guangzhou), China (Mainland)
Delivery time 3-5 days after payment received(public holiday excluded)
Place of origin China (Mainland)
Application Excavators, heavy machinery, mining, earth-moving, construction machinery, digger, car, truck.

3. Fit Model

Part Number: 723-49-26101 723-49-26100
Group: Main Control Valve Seal Kit
Fit for model: Komatsu PC360-7 PC300-7-AA PC300LC-7 PC300LC-7-BA PC300-7 PC350LC-7 PC350-7-AA PC350LC-7-BA PC350-7

4.Related spare parts:

723-49-26101 723-49-26100 Main Control Valve Seal Kit For Komatsu PC300-7

Part No Parts name Part No Parts name
723-49-26101 CONTROL VALVE ASSY'S 723-49-26100 CONTROL VALVE
07049-01012 PLUG 07049-01215 PLUG
22U-62-22480 ELBOW 201-60-11390 O-RING
20Y-62-19560 O-RING 11Y-62-12160 ELBOW
02896-11008 O-RING 21W-62-42490 ELBOW
02896-11009 O-RING 11Y-62-12250 TEE
11Y-62-12130 NIPPLE 11Y-62-12520 NIPPLE
07002-11423 O-RING 20Y-62-22160 ADAPTER
20Y-62-23541 ELBOW 20Y-62-41700 VALVE ASS'Y
20Y-60-22270 POPPET 701-20-61230 SPRING
723-46-15130 PLUG 723-46-15140 PLUG
07002-10823 O-RING 708-7T-16460 BALL
723-46-15120 RETAINER 723-46-15690 RETAINER
723-46-14110 SPRING 723-46-14170 SPRING
723-46-14131 SPRING 708-8H-11530 PLUG
07002-11423 O-RING 723-40-66601 VALVE ASS'Y
01252-61050 BOLT 01643-51032 WASHER
723-40-60101 VALVE ASS'Y 07000-12020 O-RING
07001-02020 RING,BACK-UP 709-25-11390 O-RING
723-46-17711 PLUG 07000-11009 O-RING
07001-01009 RING,BACK-UP 07000-11007 O-RING
07001-01007 RING,BACK-UP 723-40-91500 VALVE ASS'Y,RELIEF
700-80-64220 RING 700-22-11410 O-RING
709-25-11390 O-RING 723-40-91200 VALVE ASS'Y,SUCTION AND SAFETY
709-25-11390 O-RING 723-90-76201 VALVE ASS'Y,SUCTION AND SAFETY
07000-13024 O-RING 723-40-85100 VALVE ASS'Y,SUCTION
723-40-71330 RETAINER 723-40-71340 SPRING
01252-60816 BOLT 723-46-15111 CASE
723-40-71350 RETAINER 07430-71380 O-RING
01252-60820 BOLT 723-40-71440 SPRING
709-74-91860 PLUG 07002-12434 O-RING
723-40-71390 SPRING 723-40-61150 PLUG
723-40-91600 VALVE ASS'Y,RELIEF 702-16-53920 O-RING
07002-11623 O-RING 723-40-71430 VALVE
702-21-55460 SPRING 702-21-55420 O-RING
702-21-55520 O-RING 702-21-55440 O-RING
702-21-53120 FILTER 07000-12011 O-RING
702-21-55620 PLUG 07002-11423 O-RING
702-21-55710 SEAT 702-21-55720 SPRING
04260-00793 BALL 07000-11009 O-RING
708-8H-11530 PLUG 01252-61040 BOLT
01643-51032 WASHER 708-8E-16160 PLUG
07002-11023 O-RING 01010-61460 BOLT
01010-61470 BOLT 01643-31445 WASHER
723-40-87110 BODY 723-40-87140 SPOOL
723-40-87160 SPRING 723-40-87150 RETAINER
723-40-87170 O-RING 07000-13035 O-RING
07000-11007 O-RING 01252-60830 BOLT
01252-61075 BOLT 07000-13038 O-RING
07000-11010 O-RING 723-40-82210 PLUG
723-40-82220 FILTER 723-40-82140 SPRING
723-40-82150 PLUG 07002-13334 O-RING
709-25-11650 VALVE,CHECK 709-25-11361 SPRING
723-40-82161 PLUG 07000-13024 O-RING
07002-11823 O-RING 07000-12011 O-RING
07001-02011 RING 07000-11010 O-RING
07001-01010 RING 723-11-18190 PLUG
07002-11023 O-RING 723-40-82290 SPRING
01252-61075 BOLT 723-46-17570 BLOCK

5. Related models:

PC300-5 D39PX-23 D31EX-21A PC02-1A PC60-7B
PC300HD-7L D60A-6 PC650LC-5 PC05-7 PC750-6-AM
D20A-7 D60F-8 D37A-5 D65EX-15E0 PC250LC-6L
PC08UU-1 PC228USLC-8 PC1100SP-6 PC70-6 PC160LC-7K
PC70-7 PC118MR-8 D40PLL-3 PC16R-3 PC228US-8
D20Q-7-M PC300-5C PC120-6Z-A1 PC100-6 PC30UU-3
PW200-7K PW148-8 PC1800-6 WD600-3 PC100-6E
PC60-7 D21E-6 D50P-17 PC75UU-2 D475A-5
PC130-7 PC75UU-2E PC400LC-7-M1 PC400LC-1 PC340LC-7
D20P-6A PC340LCD-7EO D155AX-3C PC600LC-6A-KJ PC228USLC-3N
PC220LC-6LC PC50UUM-2 PC400-5C PC600-7K PC1000-1
PC60-6Z PC210LC-6LE D85E-SS-2 PC850-8E0 PC10-5
PC710-5 DNH031-3K PC220-8 D60A-11 WD500-3
D40F-5 PC30-1 PC400LC-6LM PC20UU-3 PC100L-1
D85EX-15R PC160LC-LGP PC200-2 D70LE-12 PC200LC-5C
D39PX-22 PC100-5S PC12UU-1 PC240LC-6K PC150LC-1
PC128UU-1 PC5500-6E PC45R-8 D85MS-15 PC100L-6
PC600-8E0 PC60-6 PC750SE-6K PW20-1 D60PL-8
PC400LC-3 D21P-6 PC340NLC-7K-E0 PC300-7-AA PC15-1


Welcome to contact us, we can provide high quality and the best price!

723-49-26101 723-49-26100 Main Control Valve Seal Kit For Komatsu PC300-7723-49-26101 723-49-26100 Main Control Valve Seal Kit For Komatsu PC300-7723-49-26101 723-49-26100 Main Control Valve Seal Kit For Komatsu PC300-7723-49-26101 723-49-26100 Main Control Valve Seal Kit For Komatsu PC300-7723-49-26101 723-49-26100 Main Control Valve Seal Kit For Komatsu PC300-7723-49-26101 723-49-26100 Main Control Valve Seal Kit For Komatsu PC300-7
