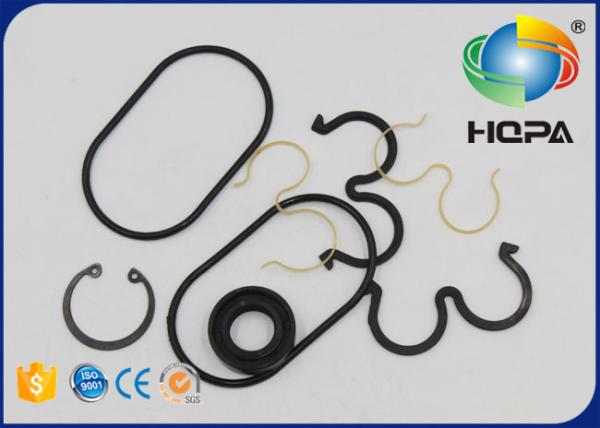

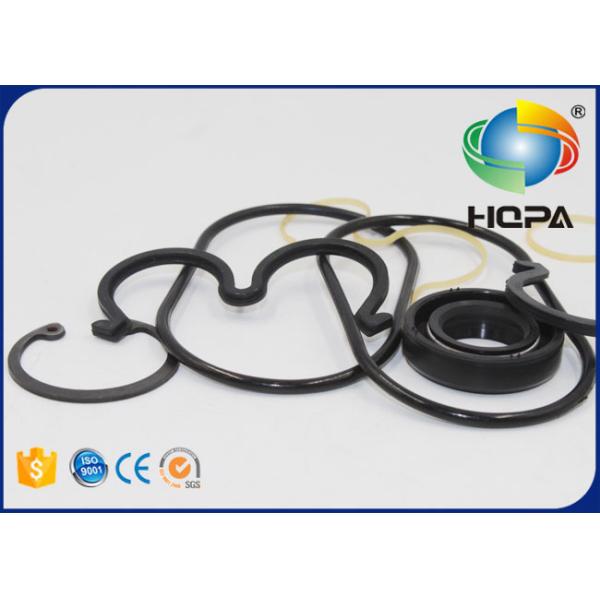

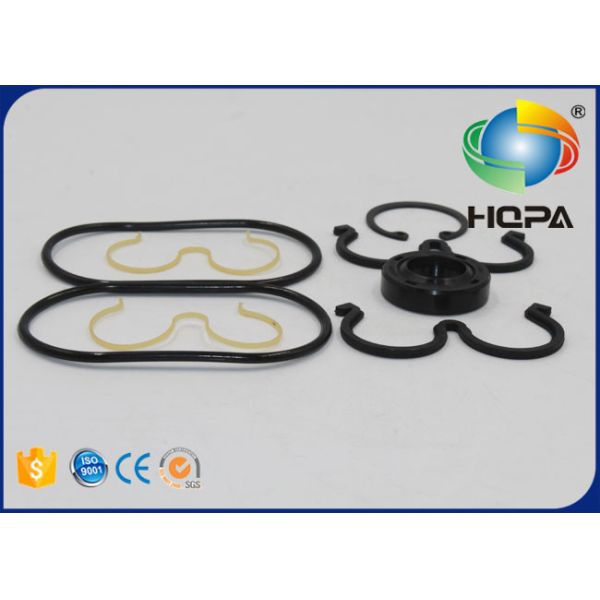

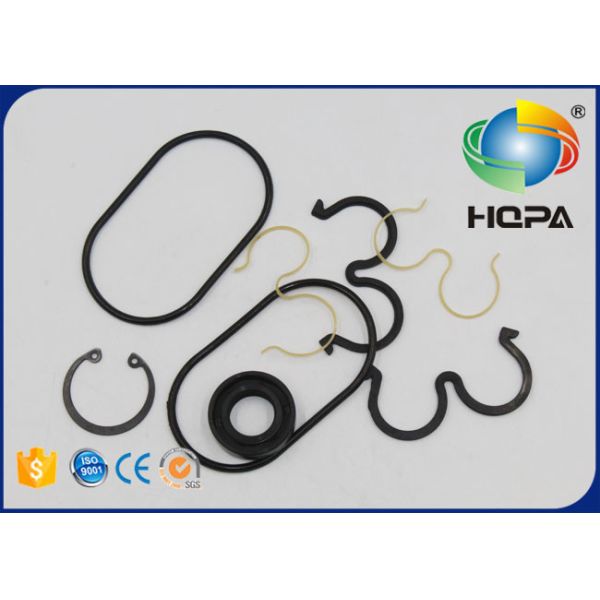

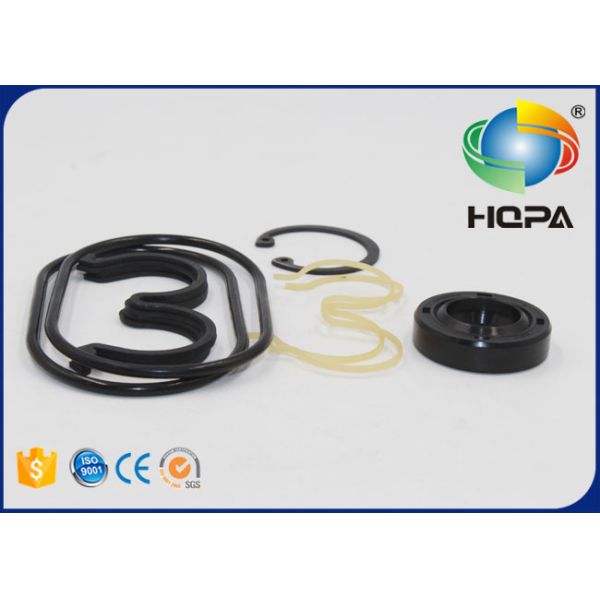

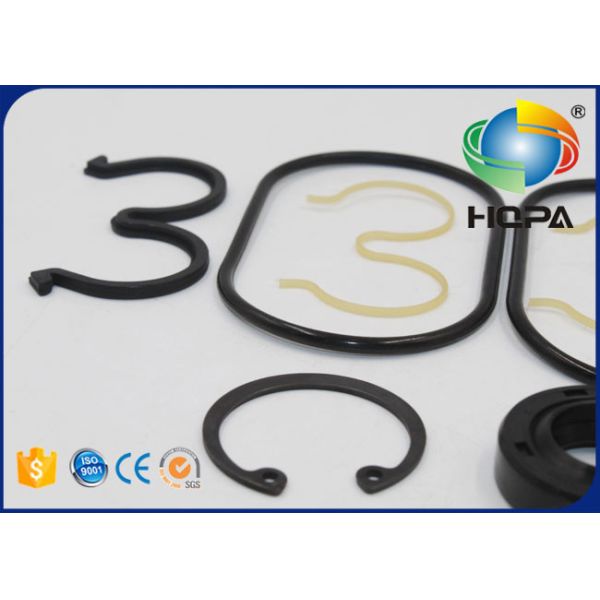

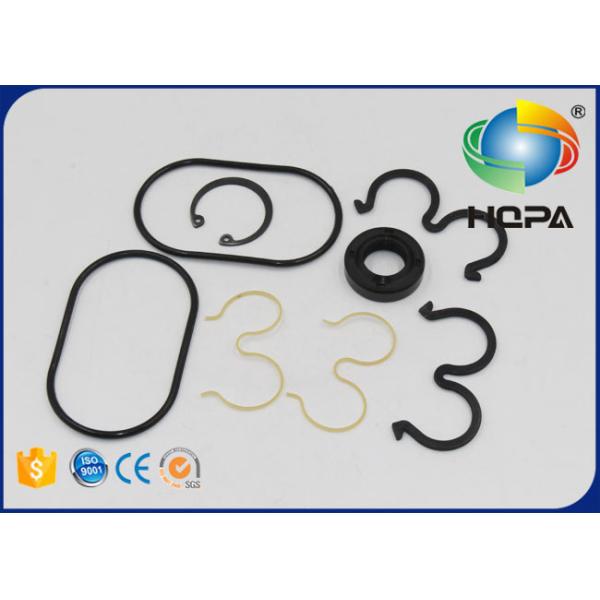

0408207 Hydraulic Gear Pump Seal Kit For Excavator Hitachi EX100-2
0408207 Hydraulic Gear Pump Seal Kit For Excavator Hitachi EX100-2
0408207 Hydraulic Gear Pump Seal Kit For Excavator Hitachi EX100-2
0408207 Hydraulic Gear Pump Seal Kit For Excavator Hitachi EX100-2
0408207 Hydraulic Gear Pump Seal Kit For Excavator Hitachi EX100-2
0408207 Hydraulic Gear Pump Seal Kit For Excavator Hitachi EX100-2
0408207 Hydraulic Gear Pump Seal Kit For Excavator Hitachi EX100-2
0408207 Hydraulic Gear Pump Seal Kit For Excavator Hitachi EX100-2
0408207 Hydraulic Gear Pump Seal Kit For Excavator Hitachi EX100-2
0408207 Hydraulic Gear Pump Seal Kit For Excavator Hitachi EX100-2
0408207 Hydraulic Gear Pump Seal Kit For Excavator Hitachi EX100-2
0408207 Hydraulic Gear Pump Seal Kit For Excavator Hitachi EX100-2
Specifications
Brand Name :
HQPA/OEM
Model Number :
0408207 Hydraulic Gear Pump Seal Kit
Certification :
ISO9001
Place of Origin :
CHINA(MAINLAND)
MOQ :
Negotiable
Price :
negotiation
Payment Terms :
Western Union, L/C, T/T, MoneyGram, D/A, D/P
Supply Ability :
500 Sets per Week
Delivery Time :
3-5 days after payment received(public holiday excluded)
Packaging Details :
PP bag inside, carton box outside
Product :
0408207 Hydraulic Gear Pump Seal Kit
Part Number :
0408207
Fit for model :
Hitachi EX100-2 EX100-2m EX100-3 EX100-3C EX100-3m EX100-5 EX100-5
Group :
Pilot Pump / Charge /Gear Pump Seal Kit / Pump Seal Kit
Loading Port :
HUAGNPU,China (Mainland)
Packing :
Neutral packing / HQPA packing
Description

0408207 Hydraulic Gear Pump Seal Kit for Excavator Hitachi EX100-2
1.Product Description:

The pilot pump is a smaller pump in a pilot pump function.
It is used as a supplemental pump in booster applications.
Its purpose is to take over in low consumption periods and thus contribute to lower the energy consumption of the booster as a whole.

A pilot pump takes over the operation from the main pumps in periods when the consumption is so small that the stop functions of the main pumps are activated.

Pilot pump seal kits prevent oil leakage and maintain this function.


2.General Product Information:

0408207 Hydraulic Gear Pump Seal Kit for Excavator Hitachi EX100-2
Brand Name HQPA/OEM
Product Name 0408207 Hydraulic Gear Pump Seal Kit for Hitachi EX100-2 EX100-2m EX100-3 EX100-3C EX100-3m EX100-5 EX100-5
Product style Hydraulic Gear Pump Seal Kit / Gear Pump Seal Kit
Part No. 0408207
Related parts: Boom Cylinder Seal Kit / Arm Cylinder Seal Kit / Swing Motor Seal Kit / Travel Motor Seal Kit / Main Pump Seal Kit / Pilot Pump Seal Kit / Regulator Valve Seal Kit / Main Control Valve Seal Kit
Application Hitachi EX100-2 EX100-2m EX100-3 EX100-3C EX100-3m EX100-5 EX100-5 EX100M-2 EX100M-2m EX100M-3 EX100M-3m EX100M-5 EX120-2 EX120-2m EX120-3 EX120-3C EX120-3m EX120-5 EX120-5 EX120-5HG EX120-5LV EX120-5X EX120-5Z EX120SS-5
MOQ 1 PC
Condition 100% New
Package Inner-Plastic Bag; Outer -Standard Carton Box.
Payment Western Union, L/C, T/T, MoneyGram, D/A, D/P etc.
Departure ports Huangpu(Guangzhou), China (Mainland)
Delivery time 3-5 days after payment received(public holiday excluded)
Place of origin China (Mainland)
Application Excavators, heavy machinery, mining, earth-moving, construction machinery, digger, car, truck.

3. Fit Model

Part Number: 0408207
Group: Hydraulic Gear Pump Seal Kit
Fit for model: Hitachi EX100-2 EX100-2m EX100-3 EX100-3C EX100-3m EX100-5 EX100-5 EX100M-2 EX100M-2m EX100M-3 EX100M-3m EX100M-5 EX120-2 EX120-2m EX120-3 EX120-3C EX120-3m EX120-5 EX120-5 EX120-5HG EX120-5LV EX120-5X EX120-5Z EX120SS-5

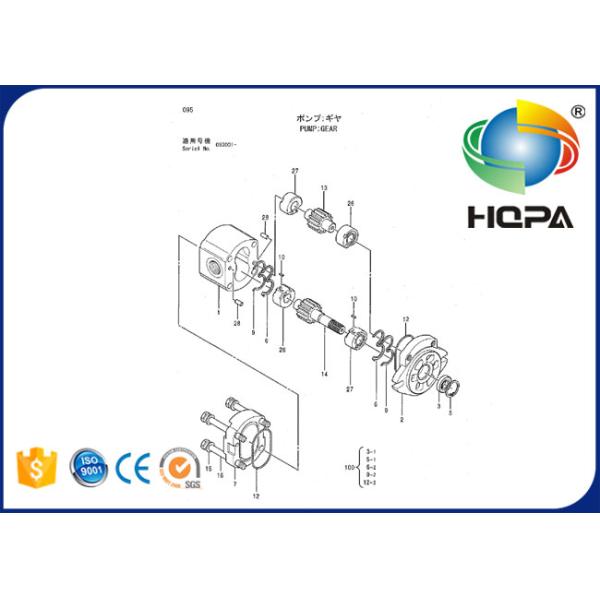

4.Related parts

0408207 Hydraulic Gear Pump Seal Kit For Excavator Hitachi EX100-2

Part No Parts name Part No Parts name
4255303 PUMP;GEAR 4092111 O-RING
408201 FLANGE 408202 SEAL;OIL
354604 RING;RETAINING 408203 SEAL
354603 COVER 354607 RING;BACK-UP
354614 KEY 354608 O-RING
354610 PIN 408205 O-RING
408206 O-RING 408207 KIT;SEAL
9101530 PUMP;SINGLE (1/2) 4254405 O-RING
4255303 PUMP;GEAR M341030 BOLT;SOCKET
A590110 WASHER;PLANE 9089486 PLUG
4509180 O-RING 4233165 PLUG
957366 O-RING 9089485 PLUG
354611 WASHER 408204 BOLT
957366 O-RING 4248773 SENSOR;PRES.
4339754 SENSOR;PRES. 4150302 O-RING
4150302 O-RING 4506416 O-RING
4265372 SENSOR;REVOL. 4269615 O-RING
4306888 O-RING A590106 WASHER;PLANE
M340616 BOLT;SOCKET 9098250 VALVE;SOLENOID
9120292 VALVE;SOLENOID M340645 BOLT;SOCKET
971823 O-RING 4252767 BRACKET
M340613 BOLT;SOCKET 9089485 PLUG
957366 O-RING 9089486 PLUG
4509180 O-RING 3055949 PIPE
4179837 FITTING;PIPE 957366 O-RING
9736515 CLAMP J900830 BOLT
A590908 WASHER;SPRING 4169516 WASHER;SPRING
4278547 ADAPTER 3020380 NAME-PLATE
M492564 SCREW;DRIVE 4239375 COUPLING;RUBBER
4276559 CLAMP 9096731 MOTOR;OIL
1015120 HOUSING 4212841 SEAL;OIL
991725 RING;RETAINING 3047919 SHAFT
959499 RING;RETAINING 4251146 PLATE
4250923 BRG.;ROL. 4248340 RACE;INNER
4229543 RING;RETAINING 4212842 PIN;KNOCK
3050567 PLATE 4252764 PIN
4264312 PISTON;SERVO 3049956 PLATE;SWASH
3058406 RETAINER 2028344 ROTOR
4247991 SPRING;COMPRES. 4248342 BUSHING
8050709 PISTON 4266511 SPACER
3032432 PLATE 3043240 PLATE;FRICTION
3051501 PISTON 4232766 D-RING
4232767 D-RING 3043242 SPRING;DISC
4506415 O-RING 4244542 O-RING
9099928 VALVE;BRAKE 4234840 BRG.;NEEDLE
3047922 PLATE;VALVE 4271350 PIN;KNOCK
M341232 BOLT;SOCKET 4255115 MOTOR;OIL
4286403 COVER ASS'Y 4327557 COVER ASS'Y
407701 RING 407702 PISTON
407703 PLATE 407704 PLATE
407705 SEAL;OIL 407706 RING;RETAINING
4286401 ROTARY GROUP 4286402 SHAFT ASS'Y
A810130 O-RING 407707 O-RING
407708 O-RING 407709 BRG.
407710 PLATE 254007 SPRING
407711 CASE 330402 O-RING

5. Related models:

EX100-2 EX100-2m EX100-3 EX100-3C EX100-3m
EX100-5 EX100-5 EX100M-2 EX100M-2m EX100M-3
EX100M-3m EX100M-5 EX120-2 EX120-2m EX120-3
EX120-3C EX120-3m EX120-5 EX120-5 EX120-5HG
EX120-5LV EX120-5X EX120-5Z EX120SS-5 EX130H-5
EX130H-5 EX130K-5 EX135UR EX135UR-5 EX135US-5
EX135USR EX135USRK EX140US-5 EX200-2 EX200-2m
EX200-3 EX200-3C EX200-3E EX200-3m EX200-5
EX200-5 EX200-5HG EX200-5LV EX200-5X EX200-5Z
EX200K-2 EX200K-2m EX200K-3 EX200K-3m EX200LCK-2m
EX200SS-5 EX210H-5 EX210H-5 EX210K-5 EX220-2
EX220-3 EX220-5 EX220-5 EX220-5HHE EX225USR(LC)
EX225USRK(LC) EX230-5 EX230H-5 EX230K-5 EX230LC-5HHE
EX270-5 EX280H-5 EX400-3 EX400-3C EX400-5
EX450H-5 EX750-5 EX800H-5 HR1200SG HR1200SGM
HU230-A IZX200 IZX200LC JAP MA145-5
RX2300 ZR130HC ZR420JC ZX200 ZX200-3G
ZX200-E ZX200-HHE ZX200LC-HHE ZX200-X ZX210-AMS
ZX210H ZX210H-3G ZX210-HCME ZX210K ZX210K-3G
ZX210LC-3G ZX210N-AMS ZX210N-HCME ZX225US ZX225US-E
ZX225US-HCME ZX225USR ZX225USR-E ZX225USR-HCME ZX225USRK
ZX230 ZX230-HHE ZX240-3G ZX240-AMS ZX240H
ZX240-HCME ZX240K ZX240LC-3G ZX240LC-HHE ZX250-AMS
ZX250H-3G ZX250-HCME ZX250K-3G ZX250LC-3G ZX260LCH-3G
ZX270 ZX270-HHE ZX280LC-AMS ZX280LC-HCME ZX300W
ZX450 ZX450H ZX450H-HHE ZX460LCH-AMS ZX460LCH-HCME
ZX480MT ZX480MTH ZX500LC ZX500LCH
