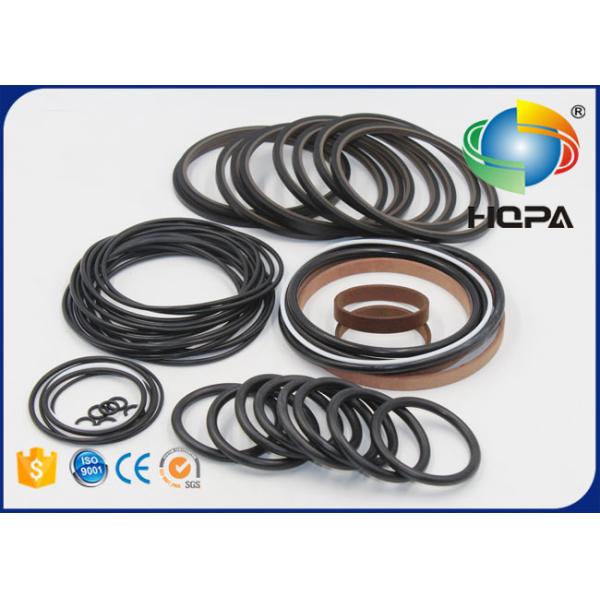

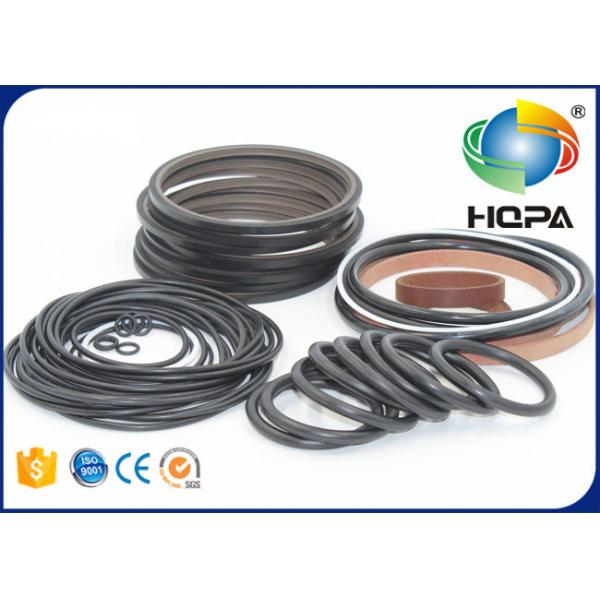

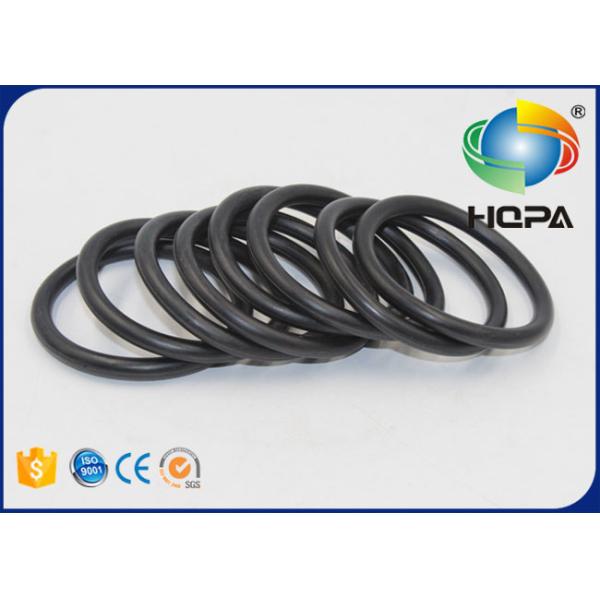

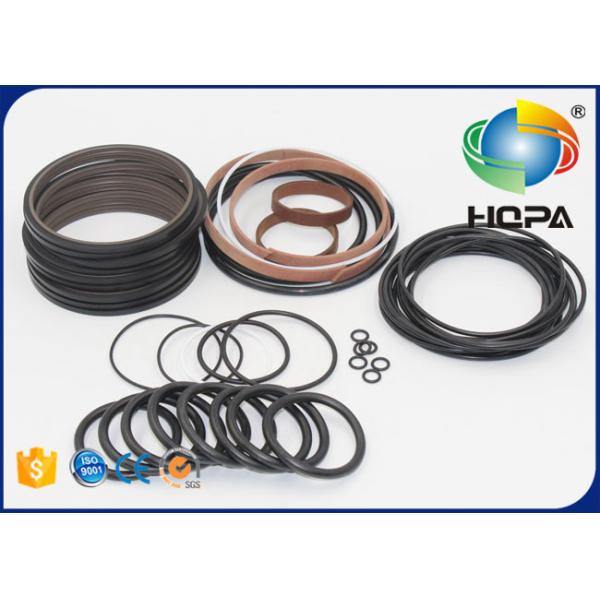

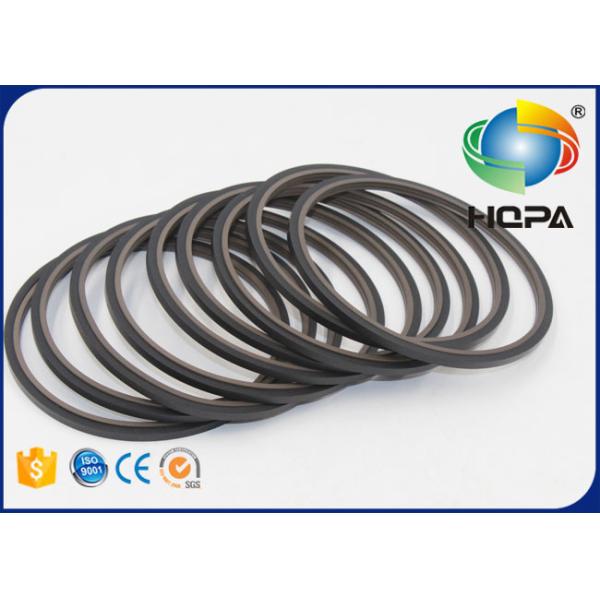

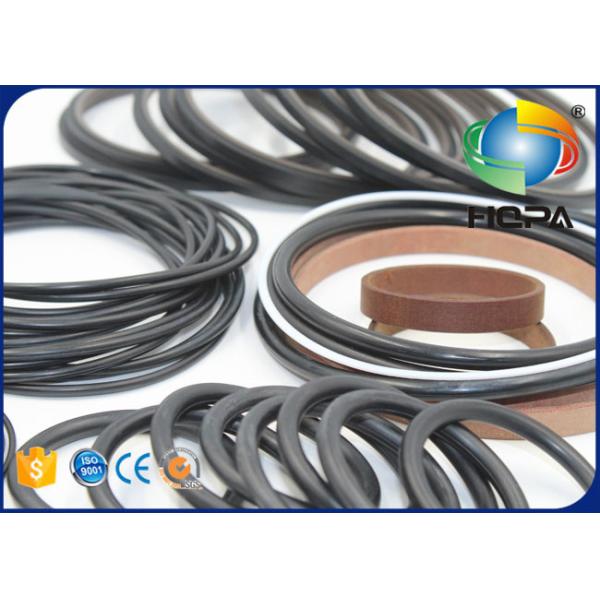

31N4-40950 Turning Joint Seal Kit for Hyundai R140W-7 R150W-7
31N4-40950 Turning Joint Seal Kit for Hyundai R140W-7 R150W-7
31N4-40950 Turning Joint Seal Kit for Hyundai R140W-7 R150W-7
31N4-40950 Turning Joint Seal Kit for Hyundai R140W-7 R150W-7
31N4-40950 Turning Joint Seal Kit for Hyundai R140W-7 R150W-7
31N4-40950 Turning Joint Seal Kit for Hyundai R140W-7 R150W-7
31N4-40950 Turning Joint Seal Kit for Hyundai R140W-7 R150W-7
31N4-40950 Turning Joint Seal Kit for Hyundai R140W-7 R150W-7
31N4-40950 Turning Joint Seal Kit for Hyundai R140W-7 R150W-7
31N4-40950 Turning Joint Seal Kit for Hyundai R140W-7 R150W-7
31N4-40950 Turning Joint Seal Kit for Hyundai R140W-7 R150W-7
31N4-40950 Turning Joint Seal Kit for Hyundai R140W-7 R150W-7
Specifications
Brand Name :
HQPA/OEM
Model Number :
31N4-40950 Turning Joint Seal Kit
Certification :
ISO9001
Place of Origin :
CHINA(MAINLAND)
MOQ :
Negotiable
Price :
negotiation
Payment Terms :
Western Union, L/C, T/T, MoneyGram, D/A, D/P
Supply Ability :
500 Sets per Week
Delivery Time :
3-5 days after payment received(public holiday excluded)
Packaging Details :
PP bag inside, carton box outside
Product :
31N4-40950 Turning Joint Seal Kit
Part Number :
31N4-40950
Fit for model :
Hyundai R140W-7 R150W-7
Group :
Center Joint Seal Kit / Turning Joint Seal Kit
Loading Port :
HUAGNPU,China (Mainland)
Packing :
Neutral packing / HQPA packing
Description

31N4-40950 Turning Joint Seal Kit for Hyundai R140W-7 R150W-7
1.Product Description:

Swivel joint is used to be a channel for the hydraulic fluid going to the travel motor.

It has many other names, including rotary manifold, rotary union, center swivel, and center joint.

It's an important part of the machine.

If there is oil leak in the swivel joint, the travel motor will lose power.

So when the travel motor acts without power, you should take it into consideration too that whether it‘s the problem of swivel joint, and to change swivel join seal kits.


2.General Product Information:

31N4-40950 Turning Joint Seal Kit for Hyundai R140W-7 R150W-7
Brand Name HQPA/OEM
Product Name 31N4-40950 Turning Joint Seal Kit for Hyundai R140W-7 R150W-7
Product style Turning Joint Seal Kit / Joint Seal Kit
Part No. 31N4-40950
Related parts: Boom Cylinder Seal Kit / Arm Cylinder Seal Kit / Swing Motor Seal Kit / Travel Motor Seal Kit / Main Pump Seal Kit / Pilot Pump Seal Kit / Regulator Valve Seal Kit / Main Control Valve Seal Kit
Application Hyundai R140W-7; R170W-7; R200W-7;
MOQ 1 PC
Condition 100% New
Package Inner-Plastic Bag; Outer -Standard Carton Box.
Payment Western Union, L/C, T/T, MoneyGram, D/A, D/P etc.
Departure ports Huangpu(Guangzhou), China (Mainland)
Delivery time 3-5 days after payment received(public holiday excluded)
Place of origin China (Mainland)
Application Excavators, heavy machinery, mining, earth-moving, construction machinery, digger, car, truck.

3. Fit Model

Part Number: 31N4-40950
Group: Turning Joint Seal Kit
Fit for model: Hyundai R140W-7 R150W-7
Contact: Mr. Sum Huang
Whatsapp: +8618902494641
www.excavatorsealkit.com

.

4.Related parts

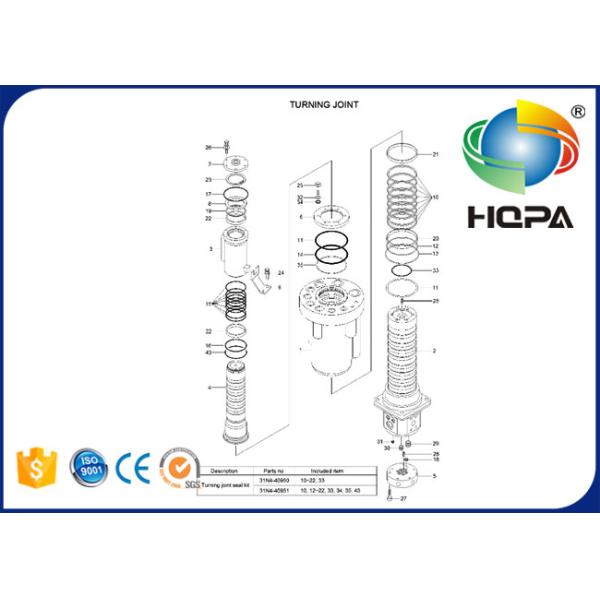

31N4-40950 Turning Joint Seal Kit for Hyundai R140W-7 R150W-7

Part No Parts name Part No Parts name
31N4-40010 TURNING JOINT 31N4-40011 TURNING JOINT
31N4-40020 HUB-MAIN 31N4-40021 HUB-MAIN
31N4-40030 SHAFT-MAIN 31N4-40040 HUB-TOP
31N4-40050 SHAFT-TOP 31N4-40051 SHAFT-TOP
31N4-40060 ADAPTOR 31N4-40070 COVER-MAIN
31N4-40071 COVER-MAIN 31N4-40080 COVER-TOP
31N4-40090 SPACER 31N4-40100 BRACKET
31N4-40101 BRACKET 31E6-40500 SEAL-SLIPPER
S631-100004 O-RING 31N4-40110 SHIM
S631-120004 O-RING S631-140001 O-RING
S631-112001 O-RING S632-115001 O-RING
S631-050004 O-RING S631-050001 O-RING
S631-048001 O-RING S632-065004 O-RING
S631-010004 O-RING S642-050002 RING-BACK UP
Y320-120011 RING-WEAR Y320-100011 RING-WEAR
Y320-050011 RING-WEAR S601-045004 RING-RETAINING
S035-102012 BOLT-W/WASHER S017-080252 BOLT-HEX
31N4-40120 BOLT-HEX,FLANGE S035-062022 BOLT-W/WASHER
S109-080406 BOLT-SOCKET S471-080162 PIN-SPRING
P220-430204 PLUG P220-430203 PLUG
P220-430202 PLUG S403-082002 WASHER-PLAIN
CO0544A O-RING S631-008001 O-RING
S642-115002 RING-BACK UP CO0540A O-RING
31N4-40950 SEAL KIT 31N4-40951 SEAL KIT
31N4-45010 TRAVEL MOTOR ZGAR-00399 ROTARY GROUP
ZGAR-00406 ROTARY-HYD SECTION ZGAR-00421 CYLINDER
ZGAR-00422 CONTROL LENS ZGAR-00423 CENTER PIN
ZGAR-00424 PISTON WITH P/RINGS ZGAR-00434 PISTON
ZGAR-00435 SEALING RING-STEEL ZGAR-00425 ADJUST SHIM
ZGAR-00426 ADJUST SHIM ZGAR-00427 ADJUST SHIM
ZGAR-00428 ADJUST SHIM ZGAR-00429 ADJUST SHIM
ZGAR-00430 ADJUST SHIM ZGAR-00431 SPRING-PRESSURE
ZGAR-00432 RETAINING PLATE ZGAR-00433 SCREW
ZGAR-00407 SHAFT-DRIVE ZGAR-00408 SHIM
ZGAR-00409 PLATE-BACK UP ZGAR-00410 PLATE-BACK UP
ZGAR-00411 PLATE-BACK UP ZGAR-00412 PLATE-BACK UP
ZGAR-00413 PLATE-BACK UP ZGAR-00414 PLATE-BACK UP
ZGAR-00415 PLATE-BACK UP ZGAR-00416 PLATE-BACK UP
ZGAR-00417 PLATE-BACK UP ZGAR-00418 RING-RETAINING
ZGAR-00419 BEARING-ROLLER ZGAR-00420 BEARING-ROLLER
ZGAR-00401 HOUSING ZGAR-00332 SCREW-LOCKING
ZGAR-00402 RING-RETAINING XJDD-00212 SEAL RING-SHAFT
ZGAR-00404 PLATE-BACK UP XJDD-00214 O-RING
ZGAR-00332 SCREW-LOCKING ZGAR-00280 PIN-THREADED
XJDD-00120 NUT-SEAL LOCK ZGAR-00400 CONTROL
ZGAR-00313 CONTROL PART ZGAR-00334 HOUSING-CONTROL
ZGAR-00335 BUSHING-CONTROL ZGAR-00336 PISTON-CONTROL
ZGAR-00337 BUSHING-ADJUSTING ZGAR-00338 COLLAR-SPRING
ZGAR-00339 SPRING-PRESSURE ZGAR-00340 SPRING-PRESSURE
XJDD-00271 O-RING ZGAR-00342 SCREW-SOCKET HEAD
ZGAR-00343 SCREW-LOCKING ZGAR-00344 RING-RETAINING
ZGAR-00345 PIN-THREADED ZGAR-00346 PIN-CYLINDER
XJDD-00276 NUT-SEAL LOCK ZGAR-00348 PIN-D/BREAK OFF
ZGAR-00330 PIN-D/BREAK OFF ZGAR-00349 DISC-RETAINING
ZGAR-00436 COVER ZGAR-00449 COVER
ZGAR-00351 SCREW-THROTTLE ZGAR-00450 SOCKET-HEAD SCREW
XJDD-00284 O-RING ZGAR-00343 SCREW-LOCKING
ZGAR-00437 PORT PLATE ZGAR-00438 PISTON-POSITIONING
ZGAR-00439 TRUNNION-POSITIONING ZGAR-00440 PISTON
ZGAR-00441 THREADED PIN ZGAR-00442 SCREW-SOCKET HEAD
ZGAR-00443 SCREW-SOCKET HEAD XJDD-00620 O-RING
XJDD-00258 O-RING XJDD-00259 O-RING
XJDD-00329 RING-BACK UP ZGAR-00445 SCREW-SOCKET HEAD
ZGAR-00446 RING-SQUARE ZGAR-00447 PIN-CYLINDER
ZGAR-00328 PIN-D/BREAK OFF ZGAR-00329 PLUG
ZGAR-00330 PIN-D/BREAK OFF ZGAR-00448 SCREW-LOCKING
ZGAR-00332 SCREW-LOCKING ZGAR-00333 RELIEF VALVE
XJDD-00683 SEAL KIT
