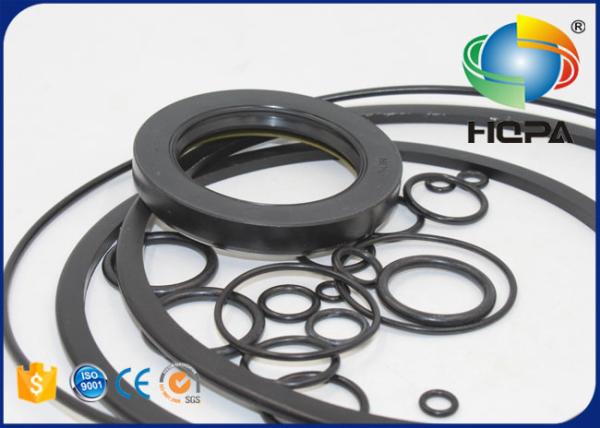

9146471K Travel Motor Seal Kit for Hitachi EX200-2 Travel Motor 9146471
9146471K Travel Motor Seal Kit for Hitachi EX200-2 Travel Motor 9146471
9146471K Travel Motor Seal Kit for Hitachi EX200-2 Travel Motor 9146471
9146471K Travel Motor Seal Kit for Hitachi EX200-2 Travel Motor 9146471
9146471K Travel Motor Seal Kit for Hitachi EX200-2 Travel Motor 9146471
9146471K Travel Motor Seal Kit for Hitachi EX200-2 Travel Motor 9146471
9146471K Travel Motor Seal Kit for Hitachi EX200-2 Travel Motor 9146471
9146471K Travel Motor Seal Kit for Hitachi EX200-2 Travel Motor 9146471
9146471K Travel Motor Seal Kit for Hitachi EX200-2 Travel Motor 9146471
9146471K Travel Motor Seal Kit for Hitachi EX200-2 Travel Motor 9146471
9146471K Travel Motor Seal Kit for Hitachi EX200-2 Travel Motor 9146471
9146471K Travel Motor Seal Kit for Hitachi EX200-2 Travel Motor 9146471
Specifications
Brand Name :
HQPA/OEM
Model Number :
9146471K Travel Motor Seal Kit
Certification :
ISO9001
Place of Origin :
CHINA(MAINLAND)
MOQ :
Negotiable
Price :
negotiation
Payment Terms :
Western Union, L/C, T/T, MoneyGram, D/A, D/P
Supply Ability :
500 Sets per Week
Delivery Time :
3-5 days after payment received(public holiday excluded)
Packaging Details :
PP bag inside, carton box outside
Product :
9146471K Travel Motor Seal Kit
Part Number :
9146471K 9146471
Fit for model :
Hitachi EX200-2 travel motor 9146471
Group :
Final Drive Seal Kit / Travel Motor Seal Kit
Loading Port :
HUAGNPU,China (Mainland)
Packing :
Neutral packing / HQPA packing
Description

9146471K Travel Motor Seal Kit for Hitachi EX200-2 travel motor 9146471
1.Product Description:

The travel motor provides the power that the final drive transforms into torque. Then torque is transferred to the sprocket, which turns the wheel or track.
The power comes from the hydraulic system.
When you find the travel lose power, there might be because the oil leakage caused to the travel motor.
In other words, the travel motor seal kit prevents oil from leaking and maintains power.


2.General Product Information:

9146471K Travel Motor Seal Kit for Hitachi EX200-2 Travel Motor 9146471
Brand Name HQPA/OEM
Product Name 9146471 Travel Motor Seal Kit for Hitachi EX200-2
Product style Travel Motor Seal Kit / Motor Seal Kit
Part No. 9146471
Related parts: Boom Cylinder Seal Kit / Arm Cylinder Seal Kit / Swing Motor Seal Kit / Travel Motor Seal Kit / Main Pump Seal Kit / Pilot Pump Seal Kit / Regulator Valve Seal Kit / Main Control Valve Seal Kit
Application Hitachi EX200-5 EX200-5 JPN EX200-5HG EX200-5HHE EX200-5LV JAP EX200-5X JPN EX200-5Z JPN EX200LC-5HHE EX200SS-5 EX210H-5 EX210H-5 JPN EX210K-5 JPN EX210LC-5HHE EX220-5 EX220-5 JPN EX220-5HHE EX225USR(LC) EX225USRK(LC) EX230-5 EX230H-5 JPN EX230K-5 EX230LC-5HHE
MOQ 1 PC
Condition 100% New
Package Inner-Plastic Bag; Outer -Standard Carton Box.
Payment Western Union, L/C, T/T, MoneyGram, D/A, D/P etc.
Departure ports Huangpu(Guangzhou), China (Mainland)
Delivery time 3-5 days after payment received(public holiday excluded)
Place of origin China (Mainland)
Application Excavators, heavy machinery, mining, earth-moving, construction machinery, digger, car, truck.

3. Fit Model

Part Number: 9146471
Group: Travel Motor Seal Kit
Fit for model: Hitachi EX200-2
Contact: Mr. Sum Huang
Whatsapp: +8618902494641
www.excavatorsealkit.com

.

4.Related parts

9146471K Travel Motor Seal Kit for Hitachi EX200-2 Travel Motor 9146471

Part No Parts name Part No Parts name
9149087 MOTOR;OIL<for transportation> 9146471 MOTOR;OIL<for assembly of machine>
1014547 HOUSING 2026713 DISC;DRIVING
4198783 BRG.;ROL. 4198998 BRG.;ROL.
4222980 SPACER 4178173 NUT;BRG.
4260561 SEAL;OIL 4116290 RING;RETAINING
2034880 ROTOR 8050658 PISTON
3064069 SHAFT;CENTER 4179181 SPRING;COMPRES.
4198956 PIN 3037401 PLATE;FRICTION
3032432 PLATE 4246784 SPACER
3047473 PISTON 4232766 D-RING
4232767 D-RING 3047472 SPRING;DISC
4248871 O-RING 4396017 O-RING
4506415 O-RING -9149086 VALVE;BRAKE<for transportation>
9145186 VALVE;BRAKEﾞ<for assembly of machine> M341650 BOLT;SOCKET
3064074 PLATE 4266256 PIN;KNOCK
4364104 PIN;KNOCK 2034875 VALVE
4234628 BUSHING 3052403 LINK
4255238 PLUG 4262561 BOLT;REAMER
9130524 PISTON;SERVO 4260308 RING;PISTON
4358413 COVER 4265579 O-RING
M341225 BOLT;SOCKET 9134112 PLUG
4506418 O-RING 9134109 PLUG
4506408 O-RING 9150472 TRAVEL DEVICE ASS'Y
-9155253 TRAVEL DEVICE ASS'Y 9146471 MOTOR;OIL
-9149087 MOTOR;OIL 4114753 SEAL;GROUP
4246793 BRG.;ROL. 1018736 DRUM
1018740 SPROCKET J932055 BOLT
A590920 WASHER;SPRING 3047448 HUB
3057125 NUT 4246783 PIN;KNOCK
1019147 CARRIER 3063957 GEAR;PLANETARY
4317122 BRG.;NEEDLE 4284521 PLATE;THRUST
4315838 PIN 4116309 PIN;SPRING
3063959 GEAR;SUN 1020184 GEAR;RING
J931640 BOLT 2034836 CARRIER
4192979 SPACER 3063956 GEAR;PLANETARY
4317121 BRG.;NEEDLE 4210851 PLATE;THRUST
4309995 PIN 4192020 PIN;SPRING
3063958 GEAR;SUN 2034835 CARRIER
3063955 GEAR;PLANETARY 4210849 BRG.;NEEDLE
4192910 PLATE;THRUST 4210853 PIN
4173093 PIN;SPRING 2034834 SHAFT;PROP.
2034833 COVER 4285323 PIN;STOPPER
J011230 BOLT;SEMS 4245797 PLUG
M492564 SCREW;DRIVE 3053559 NAME-PLATE


Welcome to contact us, we can provide high quality and the best price!
