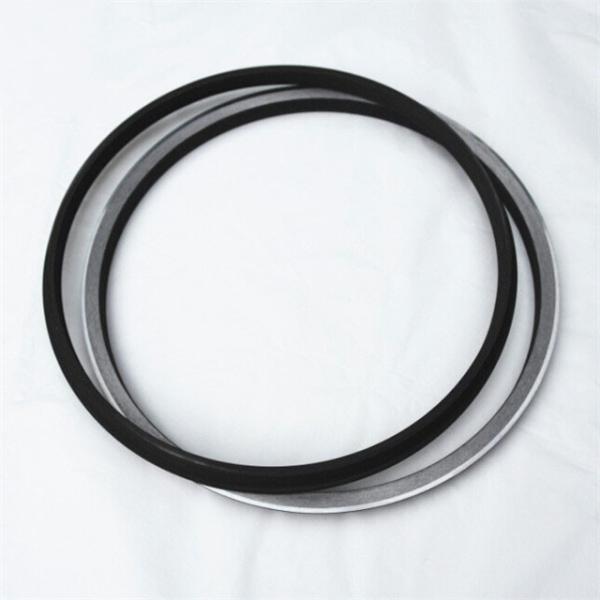

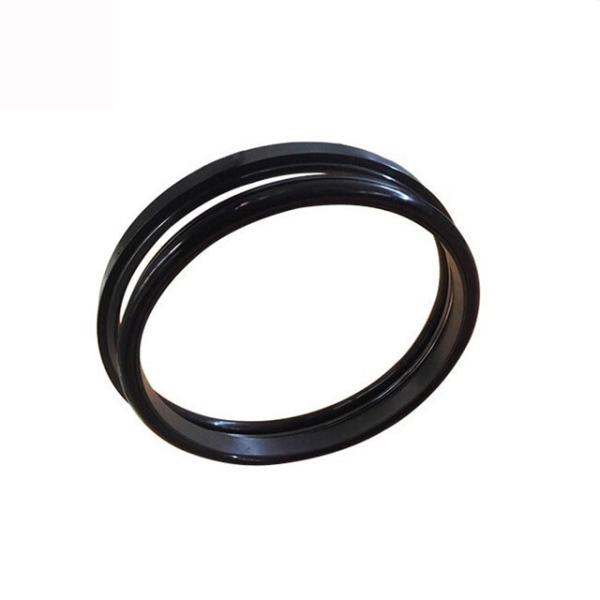

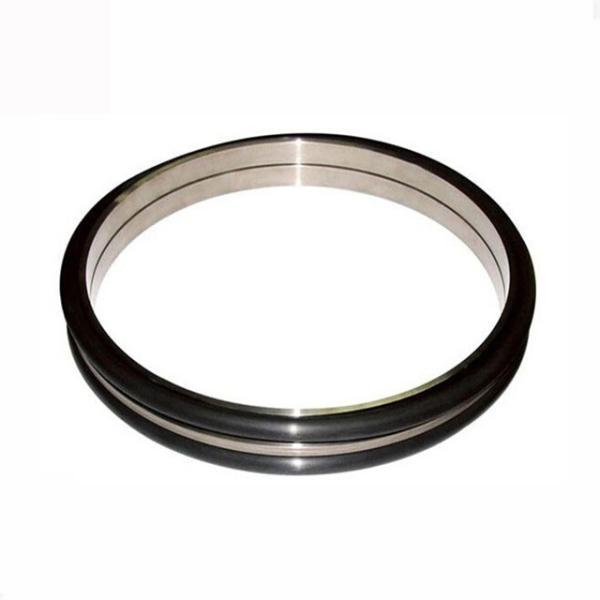

9W7201 6T4316 Rotary Oil Seal , 6T8433 9W7202 TA8404 1326141 Cat Duo Cone Seal
9W7201 6T4316 Rotary Oil Seal , 6T8433 9W7202 TA8404 1326141 Cat Duo Cone Seal
9W7201 6T4316 Rotary Oil Seal , 6T8433 9W7202 TA8404 1326141 Cat Duo Cone Seal
9W7201 6T4316 Rotary Oil Seal , 6T8433 9W7202 TA8404 1326141 Cat Duo Cone Seal
9W7201 6T4316 Rotary Oil Seal , 6T8433 9W7202 TA8404 1326141 Cat Duo Cone Seal
9W7201 6T4316 Rotary Oil Seal , 6T8433 9W7202 TA8404 1326141 Cat Duo Cone Seal
Specifications
Brand Name :
HQPA/OEM
Model Number :
9W7201 6T4316 Rotary Oil Seal
Certification :
ISO9001
Place of Origin :
CHINA(MAINLAND)
MOQ :
Negotiation
Price :
Negotiable
Payment Terms :
Western Union, L/C, T/T, MoneyGram, D/A, D/P
Supply Ability :
500 Sets per Week
Delivery Time :
3-5 days after payment received(public holiday excluded)
Packaging Details :
PP bag inside, carton box outside
Name :
9W7201 6T4316 Rotary Oil Seal
Lifetime :
5000Hours/8000hours
Hardness :
62-68HRC
Material of Seal :
100cr6/Gcr15/E52100/534A99/SUJ2
Inner diameter :
38mm-1000mm
Color :
Black/Blue/Red/Custom
Warranty :
18 months
Application :
Cat Duo Cone Seal
Description

9W7201 6T4316 Rotary Oil Seal , 6T8433 9W7202 TA8404 1326141 Cat Duo Cone Seal

Rotary Oil Seal Description

  • Oil Seal is also called floating seal, seal group, Duo cone seal, mechanical face seal, lifetime seal
  • the outer diameter of floating seal is from 35mm-1,000mm.
  • The hardness is HRC58-62 , the working face precision within 0.015um.
  • Flatness up to 0.1um-0.2um ,the lifetime is more than 4,000HRS.

Rotary Oil Seal Types

- The metal rings

Surface finish / Roughness ≤ Ra0.2μm
Face finish ≤ Ra0.015μm
Pressure ≤ 0.3MPa
Forged/Casting line speed 2m / s & 3m / s
Hardness 58 - 62 HRC
Temperature -100 ~ 200 °C

- The rubber o ring

Shore hardness 60 ° ~ 65 °
Minimum tensile strength 11MPa
Minimum elongation at break 300%
Flexible change ± 5 °
permanent deformation ≤ 12%
OEM Service
OEM steel printings could be free of charge

Model OEM Codes
Komatsu

195-30-00302, 154-30-00831 , 141-30-00616 , 150-27-00017, 207-27-0001, 130-27-00140, 130-27-0001, 14X-27-00101, 150-27-0002, 170-27-00020, 423-33-00020, 17M-27-00101, 287-33-00010, 425-33-00110, 568-33-00016, 209-27-00160, 141-27-00010, 130-27-B0100, 180-27-00021, 175-27-00121,

140-30-00040 , 130-27-00010 , 150-30-00035 , 170-27-00010...
Kobelco

R45P0018D, R45P0018D6, 45P0018D18, R45P00018D9,R45P0018D25,

R45P0018D12, R45P0018D27, R45P0018D13, R45P0018D14, R45P0018D15, R45P0018D16, R45P0018D18, R45P0018D29, R45P0018D21, YN53D00008S023, R45P0018D22, R45P0018D28...
CAT 1M8746, 9W7225, 9W7220, 8E5609, 8E 5610, 9W 7232, 2M 2858, 9W 7223, 9W 6649, 1M 8747, 9W 6647, 9W 6648, 6V2733, 9W7233,1M 8746, 2P 3395, 1P 7249, 5P 7147, 3P 0433, 5P 9120, 9W 6645,9W 6666, 5K 1078, 9G 5314, 5M 1176, 9W 6674, 9G 5317, 9W7201...
Hitachi

4283635, 4176379 , 4177260 , 4082631, 4642180, 4110363, ES-110,

4110362, 4153732, 4508193, ES-209, 4114753, 4514259, ES-250, 4179741, 4066695, 4138544, 4350347, 4082698, ES-56, ES-64...

Rotary Oil Seal Application:
-- Farm, construction, earthmoving, coal mining machinery
-- Excavator, Bulldozer, tractor, cranes, forklift, Heavy truck, backhoe
-- Undercarraige, hydraulic motor, travel motor, gearbox axle, wheel hub,tunneling
-- For OEM Komatsu, CAT, Shantui, Sany, Kubota, Kobelco, JCB, Volvo, Hitachi,
John Deere, Fiat Allis, New Holland, Commins, Terex, BOB-Cat... etc.
Rotary Oil Seal Details
9W7201 6T4316 Rotary Oil Seal , 6T8433 9W7202 TA8404 1326141 Cat Duo Cone Seal
