CAT 100pcs/8h Pile Cutter , 10 Modules Hydraulic Breaker Attachment
CAT 100pcs/8h Pile Cutter , 10 Modules Hydraulic Breaker Attachment
CAT 100pcs/8h Pile Cutter , 10 Modules Hydraulic Breaker Attachment
CAT 100pcs/8h Pile Cutter , 10 Modules Hydraulic Breaker Attachment
CAT 100pcs/8h Pile Cutter , 10 Modules Hydraulic Breaker Attachment
CAT 100pcs/8h Pile Cutter , 10 Modules Hydraulic Breaker Attachment
CAT 100pcs/8h Pile Cutter , 10 Modules Hydraulic Breaker Attachment
CAT 100pcs/8h Pile Cutter , 10 Modules Hydraulic Breaker Attachment
CAT 100pcs/8h Pile Cutter , 10 Modules Hydraulic Breaker Attachment
CAT 100pcs/8h Pile Cutter , 10 Modules Hydraulic Breaker Attachment
Specifications
Brand Name :
PA TECH
Model Number :
SP380, SP400/500, SP800
Certification :
/
Place of Origin :
CHINA
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
200-500 sets
Delivery Time :
5-8 days
Packaging Details :
Standard exporting package
Keyword :
Hydraulic pile breaker, concrete pile cutter
Application :
Round pile or Square pile cutting
Brand :
P.A Tech
Type :
SP380, SP400/500, SP800
OEM :
Available
After-sales Service :
Field installation, commissioning and training, Field installation
Video outgoing-installation :
Available
Machinery Test Report :
Available
Warranty :
12 months
Modules :
6-13 modules
Features :
Easy operation, High efficiency, High safety and reliability
Weight :
650kg, 960kg, 1.5ton, 5ton
Cut the number of pile/8h :
20-160pcs
Description

Hydraulic Pile Breaker, pile cutter for concrete pile cutting

Product Features of Hydraulic Pile Breaker, Concrete Pile Cutter

Our hydraulic pile breaker adopts modular design. Each module is provided with separate oil cylinder and drill rod. The oil cylinder drives the drill rod to realize rectilinear motion. Several modules are combined together to adapt to construction of piles with different diameters. Moreover, hydraulic pipelines are used for parallel connection to realize synchronization action. In the same section, the pile body is simultaneously squeezed from several points, so as to break the pile body at this section.

CAT 100pcs/8h Pile Cutter , 10 Modules Hydraulic Breaker Attachment

Product Parameters of Hydraulic Pile Breaker, Concrete Pile Cutter

Model SP380 SP380 Parameters
Range of
Pile diameter (mm)		 Φ300-Φ1050 Module numbers The diameter range (mm) Platform weight
Excavator(ton)		 Weight
(kg)
Maximum Drill rod pressure 320KN 7 300-400 12 920
Maximum stroke of hydraulic cylinder 150mm 8 450-500 13 1030
Maximum pressure hydraulic cylinder 34.3Mpa 9 550-625 15 1140
Maximum flow Single cylinder 25L/mim 10 650-750 18 1250
Cut the number of pile/8h 60pcs 11 800-900 21 1360
Height for cut pile each time ≤300mm 12 950-1050 26 1470
Work status dimensions (mm) Φ2268×2500
Total pile breaker weight 1.5t

Model SP800 SP800 Parameters
Range of
Pile diameter (mm)		 Φ500-Φ2000 Module numbers The diameter range
(mm)		 Platform weight
Excavator(ton)		 Weight
(kg)
Maximum Drill rod pressure 690KN 7 300-400 12 920
Maximum stroke of hydraulic cylinder 180mm 8 450-500 13 1030
Maximum pressure hydraulic cylinder 34.3Mpa 9 550-625 15 1140
Maximum flow Single cylinder 25L/mim 10 650-750 18 1250
Cut the number of pile/8h 20-100 11 800-900 21 1360
Height for cut pile each time ≤300mm 12 950-1050 26 1470
Work status dimensions (mm) Φ3200×3000
Total pile breaker weight 5.0t

Model SP400 SP500
Range of
Pile diameter (mm)		 300-400mm 400-500mm
Maximum Drill rod pressure 320KN 320KN
Maximum stroke of hydraulic cylinder 150mm 150mm
Maximum pressure hydraulic cylinder 34.3Mpa 34.3Mpa
Maximum flow Single cylinder 25L/mim 25L/mim
Cut the number of pile/8h 160 120
Height for cut pile each time ≤300mm ≤300mm
Work status dimensions (mm) 1600×1600×2000 1710×1710×2500
Total pile breaker weight 650kg 960kg

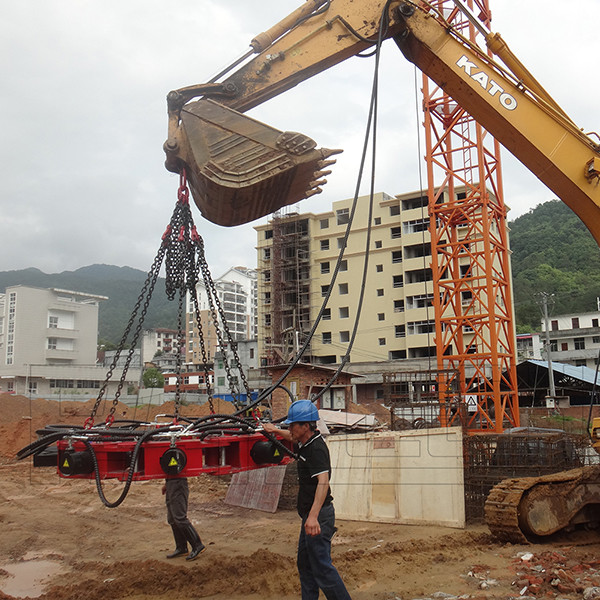

Construction Site of Hydraulic Pile Breaker, Concrete Pile Cutter

CAT 100pcs/8h Pile Cutter , 10 Modules Hydraulic Breaker Attachment


Features of Hydraulic Pile Breaker, Concrete Pile Cutter

Universal property:

It can be driven by diverse power sources and is compatible with excavators or hydraulic system according to the construction sites conditions.

It is flexible to connect multiple construction machines with universal and economical performance.The telescopic sling lifting chains meet the requirements of various landforms.

Safety:

Contact-free operation is enabled and it can be applied for construction on complex landform.

Long service life:

It is made of military material by first-class suppliers with reliable quality, extending its service life.

Environment-friendly:

Its full hydraulic drive causes little noises during operation and no influence on the surrounding environments.

Low-cost:

The operating system is easy and convenient. Fewer operating workers are required to save cost of labor and machines maintenance during construction.

Multi-function:

Module generalization is realized with our SP400-B square pile machine. It can be used for both circular piles and square piles by changing the module combination.

Convenience:

It’s small for convenient transportation.

Replaceable and changeable module combination makes its applicable for piles with various diameters. The modules can be assembled and disassembled easily and conveniently.

Packing&Delivery of Hydraulic Pile Breaker, Concrete Pile Cutter

CAT 100pcs/8h Pile Cutter , 10 Modules Hydraulic Breaker Attachment

Our Service:

1-- Six months warranty of products.

2-- Online consultation and answering.
3-- Free customization.
4-- Delivery within 15 days.

If you have any question or want to know more about our excavator attachments,please feel free to send an inquiry to us!We will do the best to help you!
