Hydraulic grapple, Log grapple for wood and stone transportation
Hydraulic grapple, Log grapple for wood and stone transportation
Hydraulic grapple, Log grapple for wood and stone transportation
Hydraulic grapple, Log grapple for wood and stone transportation
Hydraulic grapple, Log grapple for wood and stone transportation
Hydraulic grapple, Log grapple for wood and stone transportation
Hydraulic grapple, Log grapple for wood and stone transportation
Hydraulic grapple, Log grapple for wood and stone transportation
Hydraulic grapple, Log grapple for wood and stone transportation
Hydraulic grapple, Log grapple for wood and stone transportation
Specifications
Brand Name :
PA TECH
Model Number :
Z04D, Z06D, Z02J, Z04H
Certification :
ISO
Place of Origin :
China
MOQ :
1set
Price :
Negotiable
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Delivery Time :
5-8 days
Packaging Details :
Standard exporting package
Supply Ability :
200-500 sets/month
Raw Material :
High Strength manganese steel
Keyword :
Hydraulic grapple, Log grapple
Application :
Wood Grab, Stone grab
Application Industry :
Farms,Construction site, Manufacturing plant, etc
Type :
Support custom, as to clients require
Model :
JXZM04...JXZM10/Z04D/Z06D/Z02J/Z04H
Open Size :
880-1400mm
After Warranty Service :
Video technical support, Online support, Spare parts, etc
Test Report :
Support
Factory :
Yes
Video outgoing-installation :
Available
Description

Hydraulic grapple, Log grapple for wood and stone transportation

Product Introduction of Hydraulic Wood or Stone Grapple, Log Grapple:

Cylinder wood grabber:
1. 360 degree hydraulic rotation to provide more flexible grasping effect.
2. The balance valve is built in the cylinder, which runs smoothly, keeps clamping force and has higher safety.
3. Motor two-way relief valve and two-way balance valve to avoid hydraulic impact on the motor.
Single cylinder wood grabber:
1. 360 degree hydraulic rotation to provide more flexible grasping effect.
2. It has simple structure, light weight and large grasping force.
3. The connecting rod guarantees the synchronization of grasping of the two grabs.
4. The balance valve is built in the cylinder, which runs smoothly, keeps clamping force and has higher safety.

Hydraulic grapple, Log grapple for wood and stone transportation

Hydraulic grapple, Log grapple for wood and stone transportation

Product Parameters of Hydraulic Wood or Stone Grapple, Log Grapple:

Model Single Cylinder Log Mechanical Log Holding Log
Z04D Z06D Z02J Z04H
Weight 342 829 135 368
Opening Size 1362 1850 880 1502
Working PRessure 110-140 150-170 100-110 110-140
Setting Pressure 170 190 130 170
Working Flow 30-55 90-110 20-40 30-55
Oil Cylinder Capacity 7.9*1 9.7*1 4.5*1 4.0*1
Suitable for the Excavators 7-11 12-16 1.7-3.0 7-11

Hydraulic grapple, Log grapple for wood and stone transportation

Model Double Cylinder Log Grapple
Unit JXZM04 JXZM06 JXZM08 JXZM10
Weight kg 390 740 1380 1700
Opening Size mm 1400 1800 2300 2500
Working PRessure kg/cm2 120-160 150-170 160-180 160-180
Setting Pressure kg/cm2 180 190 200 210
Working Flow LPM 50-100 90-110 100-140 130-170
Oil Cylinder Capacity Ton 4.5x2 8.0x2 9.7x2 12x2
Suitable for the Excavators Ton 7-11 12-16 17-23 24-30

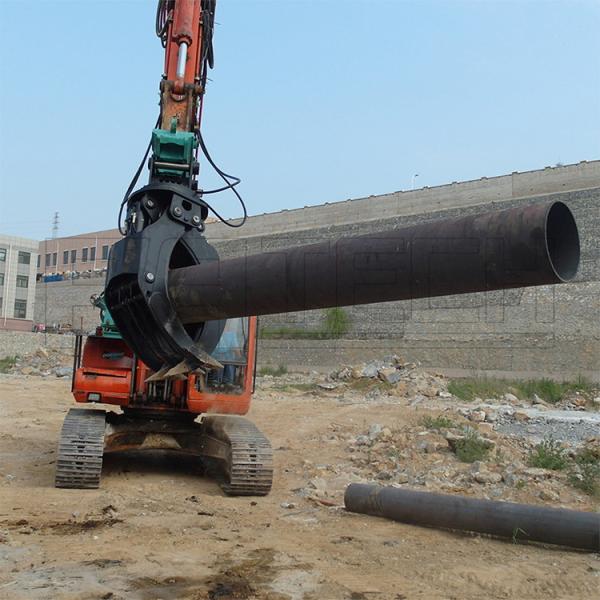

Application of Hydraulic Wood or Stone Grapple, Log Grapple:

Hydraulic grapple, Log grapple for wood and stone transportation

Hydraulic grapple, Log grapple for wood and stone transportation

Factory Show of Hydraulic Wood or Stone Grapple, Log Grapple:

Hydraulic grapple, Log grapple for wood and stone transportation

Our Service:

1-- Six months warranty of products.

2-- Online consultation and answering.
3-- Free customization.
4-- Delivery within 15 days.

If you have any question or want to know more about our excavator attachments, please feel free to send an inquiry to us! We will do the best to help you!
