Hydraulic Shear Crushing, Demolition Shear For House, Buildings Demolition Work
Hydraulic Shear Crushing, Demolition Shear For House, Buildings Demolition Work
Hydraulic Shear Crushing, Demolition Shear For House, Buildings Demolition Work
Hydraulic Shear Crushing, Demolition Shear For House, Buildings Demolition Work
Hydraulic Shear Crushing, Demolition Shear For House, Buildings Demolition Work
Hydraulic Shear Crushing, Demolition Shear For House, Buildings Demolition Work
Hydraulic Shear Crushing, Demolition Shear For House, Buildings Demolition Work
Hydraulic Shear Crushing, Demolition Shear For House, Buildings Demolition Work
Specifications
Brand Name :
PA TECH
Model Number :
JX-J04H, JX-J06H, JX-J08H, JX-J10H, JX-J14H; JX-J02A, JX-J04D
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
200-500 sets
Delivery Time :
5-8 days
Packaging Details :
Standard exporting package
Keyword :
Double cylinders hydraulic shear
Application :
Construction, demolition and mining services
Brand :
P.A Tech
Type :
JX-J04H, JX-J06H, JX-J08H, JX-J10H, JX-J14H; JX-J02A, JX-J04D
OEM :
Available
After-sales Service :
Field installation, commissioning and training, Field installation
Video outgoing-installation :
Available
Machinery Test Report :
Available
Warranty :
6 months
Suitable for excavator :
3-50ton
Rotation Mode :
360° Hydraulic, 360。 Ball Colling Rotation
Max. Opening :
440-1200
Description

Hydraulic Shear Crushing, Demolition Shear For House, Buildings Demolition Work

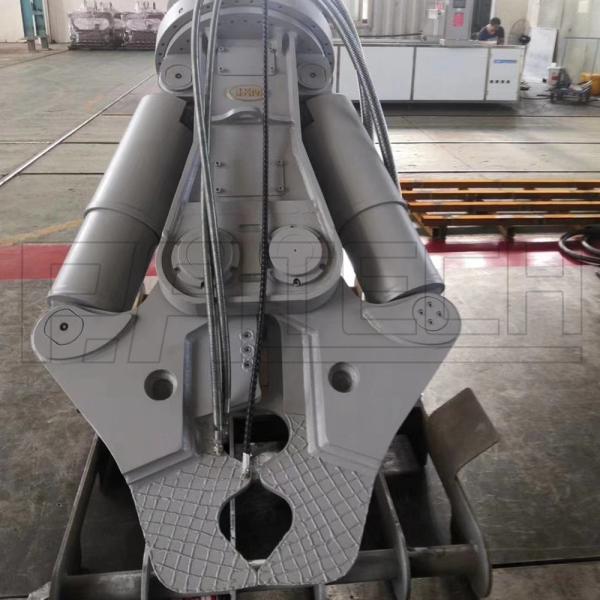

Description of Double Cylinders Hydraulic Shear / Excavator Wood Shear

According to the number of driving cylinders, it is divided into single-cylinder hydraulic shears and double-cylinder hydraulic shears. According to the different tonnage of supporting excavators, single-cylinder hydraulic shears can be divided into four types: 02 (3-5 tons), 04 (5-8 tons), 06 (12-18 tons), 08 (18-26 tons), double-cylinder There are three types of hydraulic shears: 06, 08, and 10 (26-35 tons).

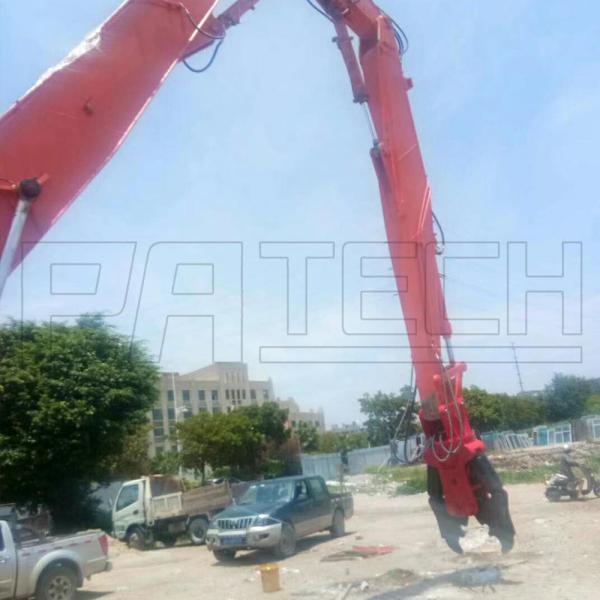

Application of Double Cylinders Hydraulic Shear / Excavator Wood Shear

1-Hydraulic pulverizer, Excavator hydraulic crushing forceps are widely used in the demolition of buildings, factories, houses and other buildings;

2-It is also called demolition excavator shear, and it could also be used for concrete crushing & recycling, steel recycling, rescue &relief operations, etc ..

Hydraulic Shear Crushing, Demolition Shear For House, Buildings Demolition Work

Features of Double Cylinders Hydraulic Shear / Excavator Wood Shear

Scrap type:

1. Special rotary support is adopted, and the performance is stable.
2. The shear body is made of Thyssenkrupp XAR400 wear resistance steel, which has double-layer wear-resistant protection, high strength and long service life.
3. Structural optimization design results in large shear force.


Double cylinder hydraulic shear (concrete):
1. Special rotary support is adopted, and the performance is stable.
2. The shear body is made of imported HARDOX400 plate, which has double-layer wear-resistant protection, high strength and long service life.
3. Suitable for concrete structure, one-time disassembly.

Hydraulic Shear Crushing, Demolition Shear For House, Buildings Demolition Work

Product Parameters of Double Cylinders Hydraulic Shear / Excavator Wood Shear

Concrete
Model JX-J04H JX-J06H JX-J08H JX-J10H JX-J14H
Weight 620 1345 2164 3060 4052
Max. Opening 540 650 950 1100 1200
Height 1419 1888 2374 2480 2700
Width 884 1175 1360 1540 1700
The Active
Length of Blade
Rotation Mode 360. Ball
Colling Rotation		 360. Hydraulic
Pressure 235 300 320 320 320
Root Curshing Force 81*2 120*2 168*2 288*2 375*2
Middle Crushing Force 44.5*2 66*2 78*2 125*2 174*2
Fore-end Curshing force 25*2 40*2 56*2 90*2 118*2
Suitable for the Excavator 5-8 15-18 20-25 28-35 38-50

Model JX-J02A JX-J04D
Weight 350 500
Max. Opening 440 515
Height 1287 1525
Width 765 895
Rotation Mode 360° Mechanical 360°Ball
Colling Rotation
Pressure 210 235
Root Curshing Force 95 110
Middle Crushing Force 45 50
Fore-end Curshing force 25 36
Suitable for the Excavator 3-5 5-8

Hydraulic Shear Crushing, Demolition Shear For House, Buildings Demolition Work

Workshop Show of Double Cylinders Hydraulic Shear / Excavator Wood Shear

Hydraulic Shear Crushing, Demolition Shear For House, Buildings Demolition Work

Factory Show of Double Cylinders Hydraulic Shear / Excavator Wood Shear

Hydraulic Shear Crushing, Demolition Shear For House, Buildings Demolition Work

Our Service:

The warranty for our excavator attachments is six months. And, clients could enjoy our on-line consultation and answering service. All our excavator attachments could be customized, OEM is available. As a manufacturer who have strong strong capacity, we usually could arrange delivery for our excavator attachments within 15 days ( delivery can be within one week for cargo that have stock).

Hydraulic Shear Crushing, Demolition Shear For House, Buildings Demolition Work
