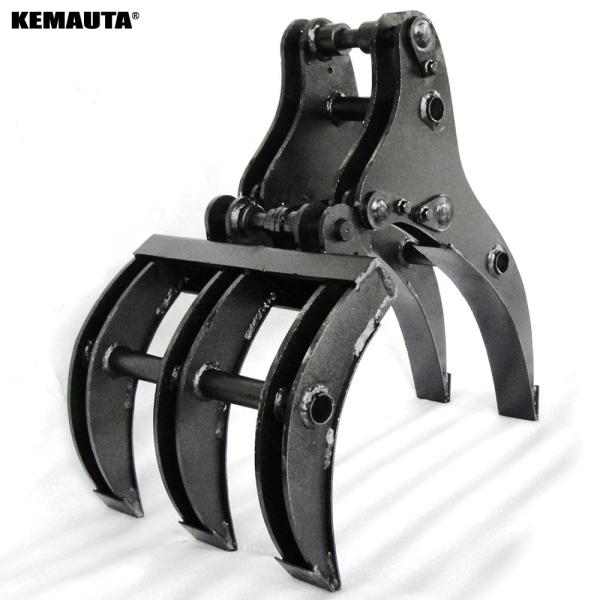

Entire Jaw Structure Mechanical Grapple For 10 20 30 Tons Excavator
Entire Jaw Structure Mechanical Grapple For 10 20 30 Tons Excavator
Entire Jaw Structure Mechanical Grapple For 10 20 30 Tons Excavator
Entire Jaw Structure Mechanical Grapple For 10 20 30 Tons Excavator
Entire Jaw Structure Mechanical Grapple For 10 20 30 Tons Excavator
Entire Jaw Structure Mechanical Grapple For 10 20 30 Tons Excavator
Entire Jaw Structure Mechanical Grapple For 10 20 30 Tons Excavator
Entire Jaw Structure Mechanical Grapple For 10 20 30 Tons Excavator
Entire Jaw Structure Mechanical Grapple For 10 20 30 Tons Excavator
Entire Jaw Structure Mechanical Grapple For 10 20 30 Tons Excavator
Entire Jaw Structure Mechanical Grapple For 10 20 30 Tons Excavator
Entire Jaw Structure Mechanical Grapple For 10 20 30 Tons Excavator
Specifications
Brand Name :
HUITONG
Model Number :
HT823
CertifiPCion :
ISO
Place of Origin :
CHINA
MOQ :
1 PCS
Price :
$ 1493-4030 USD
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200 PCS per Month
Delivery Time :
5-15 work days
Packaging Details :
Woodenbox
Product name :
Excavator Grapple
Type :
Wood Grapple
Material :
Q345B
Color :
Customer Required
Quality :
High-Quality
Condition :
New
Size :
Customized Size
Description

Huitong Hot Sale High Quality Grapple for 10/20/30/40/50/60/70tons Excavator

HUITONG Mechanical Grapple Advantage
1. Material:
1) Entire jaw structure is manufactured of quenched and tempered Q690 High Strength alloy steel, 130,000-psi min. yield 360-440
BHN. Instead of traditional Q355b.
2) The tine tips are 175,000-psi min. yield 450-550 BHN. Chromium plating.
Entire Jaw Structure Mechanical Grapple For 10 20 30 Tons Excavator

2. Motor:
1) Motor drive adopts the design of symmetrical double support,strong shcok resistance, avoiding axle breakage and oil leakage.
2) Pedestal adopts sealed type design, better protect the rotary drive.
3) Output Torque:4 kN.m-8.5kN.m(6272lbf.ft)
Holding Torque 38kN.m-105kN.m(78000lbf.ft)
Moment Torque 26kN.m-203kN.m(150,000lbf.ft)
Entire Jaw Structure Mechanical Grapple For 10 20 30 Tons Excavator
3. Strengths:
1) Sealed type rotary drive solve the oil leakage problem, only required light greasing(80g of grease) once 6 months(unlike most
of the product on the market needed greasing everyday) and better protect the product.
2) Motor drive adopted symetrical double support design, reducing the bearing load and extend service life.
3) The jaw structure is manufactured of Q690 High Strength Alloy Steel, lighter weight with twice of the strength comparing with
Q345(normally used on the market)
Grapple
Machine Tonnage
Description
Max.Opening ranging(in)
Weight(lbs)
Material
6-10T
Rotating/non-rotating
57.1
1430/1562
Q690+NM360
11-16T
Rotating/non-rotating
66.9
1760/1914
Q690+NM360
17-20T
Rotating/non-rotating
74.8
2134/2310
Q690+NM360
21-24T
Rotating/non-rotating
80.7
2354/2530
Q690+NM360
25-30T
Rotating/non-rotating
86.6
2640/2860
Q690+NM360
31-35T
Rotating/non-rotating
90.6
3080/3344
Q690+NM360
36-40T
Rotating/non-rotating
94.5
3630/3938
Q690+NM360
41-45T
Rotating/non-rotating
98.4
4268/4620
Q690+NM360
65T
Rotating/non-rotating
98.4
8140/9240
Q690+NM360

Entire Jaw Structure Mechanical Grapple For 10 20 30 Tons Excavator

Production Description
HT Excavator Rotating Grapple, also called "Excavator Log Grab, Timber Grab", adopts Q690 High Strength Steel and advance rotating motor.

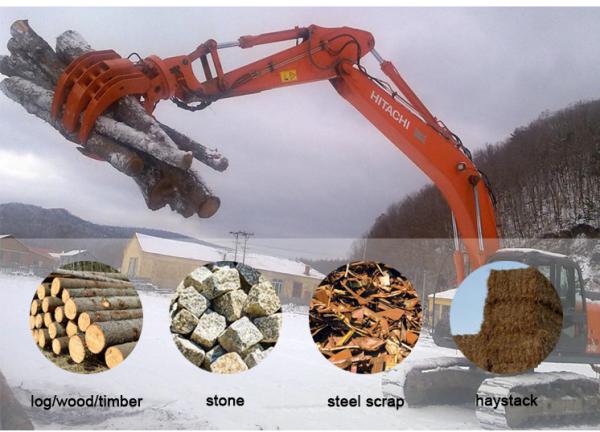

360-degree clockwise or anticlockwise rotation and the rotation speed can be controlled by operator, special rotary gears are used to prolong lifespan and lower the cost, fit for all operations where there need grappling and loading, such as stone, timber, waste, tube operations, garden and stone laying projects.
